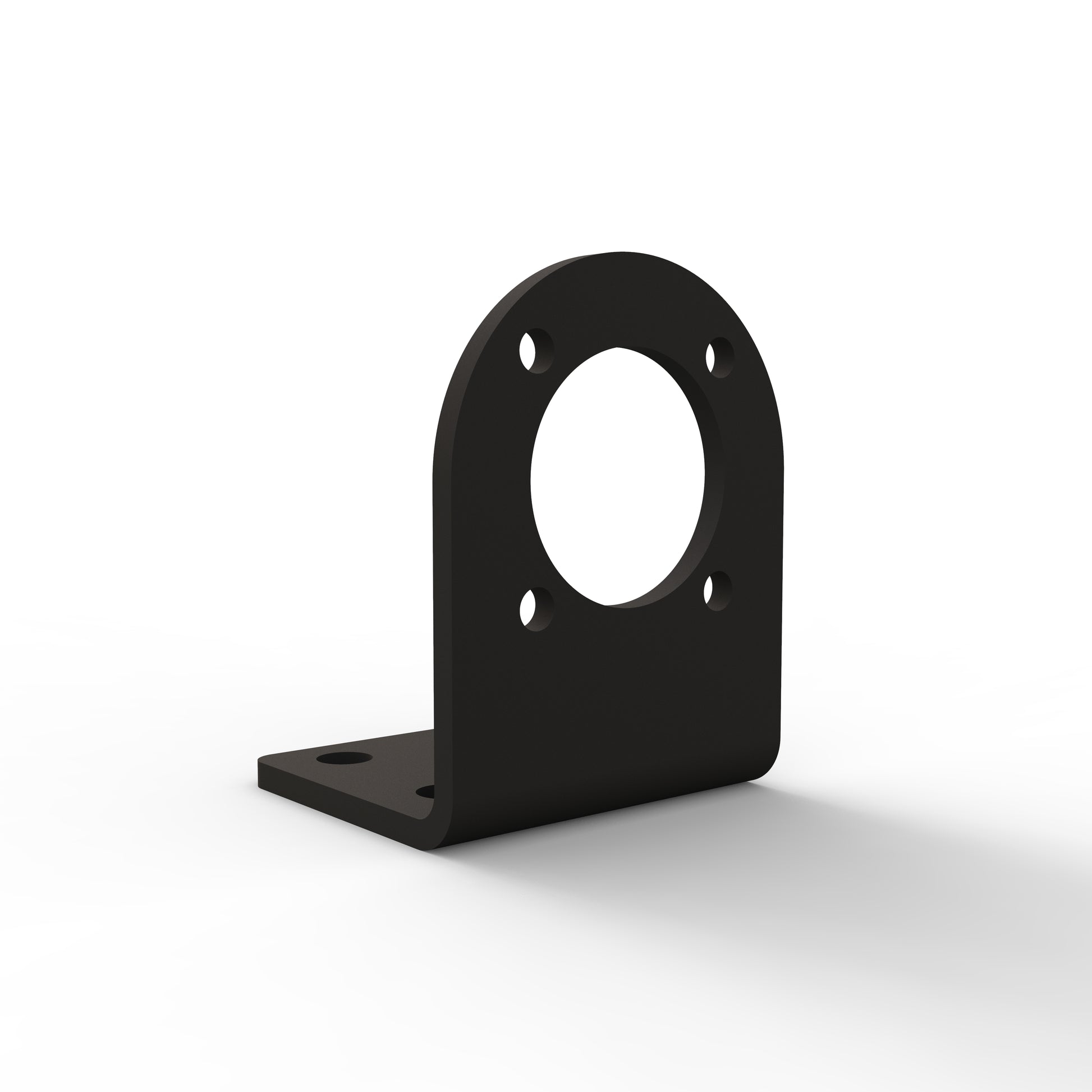

3mm Thick MS Motor Mounting Bracket/Clamp for 42mm/45mm Planetary Gearbox Motors - Model 1 (Matt Black)

Ensure secure and stable mounting for your 42mm and 45mm planetary gearbox motors with our high-quality 3 mm-thick MS Motor Mounting Bracket/Clamp, Model 1. Engineered from durable Mild Steel (MS) and finished with a sleek matt black powder coating, this bracket offers exceptional rigidity, longevity, and a professional aesthetic, making it an essential component for any project requiring reliable motor fixation.

Key Features:

• Robust Construction: Made from 3mm thick Mild Steel, providing superior strength and resistance to vibration, ensuring your motor stays firmly in place.

• Premium Matt Black Powder Coat Finish: Not only adds a sleek, professional look to your project, but it also provides enhanced durability, scratch resistance, and corrosion protection.

• Precision Fit: Specifically designed to perfectly cradle 42mm and 45mm diameter planetary gearbox motors, offering a snug and secure fit.

• Versatile Mounting Options: Features precisely drilled mounting holes (Ø4.3mm and Ø6.4mm) for easy and flexible attachment to your chassis, frame, or project base.

• Compact Design: With an overall height of 58mm and a sturdy 40mm base, its compact form factor allows for integration into tight spaces without compromising stability.

• Enhanced Stability: The L-shaped design, combined with multiple mounting points, distributes stress evenly, enhancing the overall stability of your motor setup.

• Reliable Performance: An ideal solution for robotic arms, custom machinery, automation systems, educational projects, and other applications where motor stability is critical.

• Made in India: Proudly manufactured in India, ensuring quality and craftsmanship.

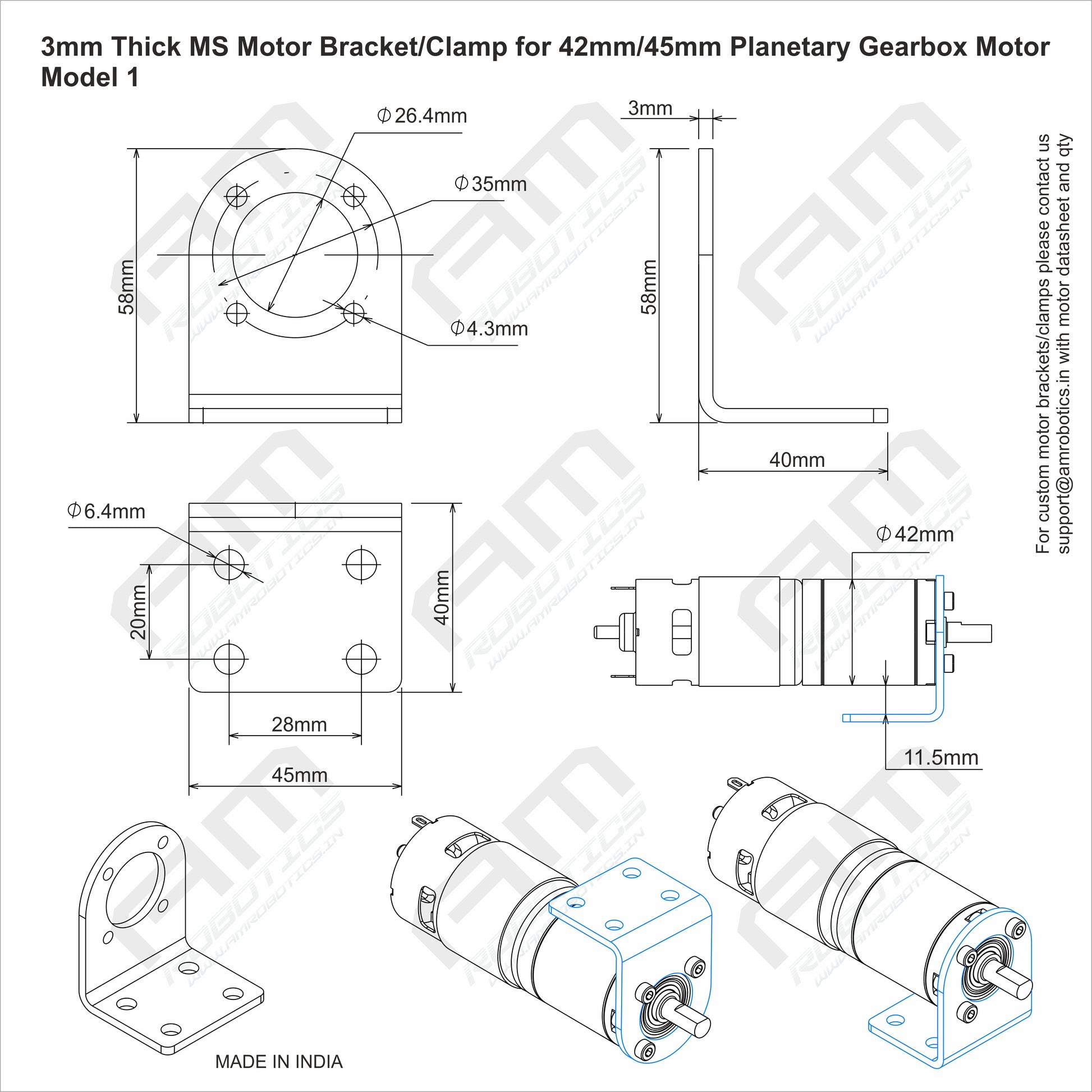

Technical Specifications (Refer to image for detailed dimensions):

• Material: 3mm Thick Mild Steel (MS)

• Finish: Matt Black Powder Coated

• Compatibility: 42mm and 45mm diameter Planetary Gearbox Motors

• Motor Mounting Diameter: Ø35mm (circular cutout for motor body)

• Overall Height: 58mm

• Base Length: 40mm

• Bracket Width: 28mm (top part), 45mm (base plate)

• Mounting Hole Diameters: Ø4.3mm (for bracket-to-surface attachment), Ø6.4mm (for motor clamp bolt/nut)


• Weight: 100gms

Package Includes:

• 1 x 3mm Thick MS Motor Mounting Bracket/Clamp (Model 1, Matt Black)

For Custom Requirements: Looking for custom motor brackets or clamps? Please don't hesitate to contact us at support@amrobotics.in with your motor datasheet and the required quantity for bespoke solutions.
