3mm Thick MS Motor Mounting Bracket/Clamp for 42mm/45mm Planetary Gearbox Motors Model 2 - Matt Black

Achieve optimal stability and a professional aesthetic for your projects with our premium 3mm Thick MS Motor Mounting Brackets, now available with a durable matt black powder-coated finish. Designed specifically for 42mm and 45mm planetary gearbox motors, these brackets provide a rock-solid foundation for your drive systems.

Crafted from high-grade Mild Steel (MS), each bracket boasts a substantial 3mm thickness, ensuring exceptional strength and resistance to vibration. The elegant matt black powder coating not only offers superior protection against scratches and corrosion but also provides a sleek, integrated look for your designs.

We offer two versatile models to suit your specific mounting needs:

• Model 1 (L-Bracket): A classic L-shaped design, compact and ideal for side-mounting applications where space is a premium.

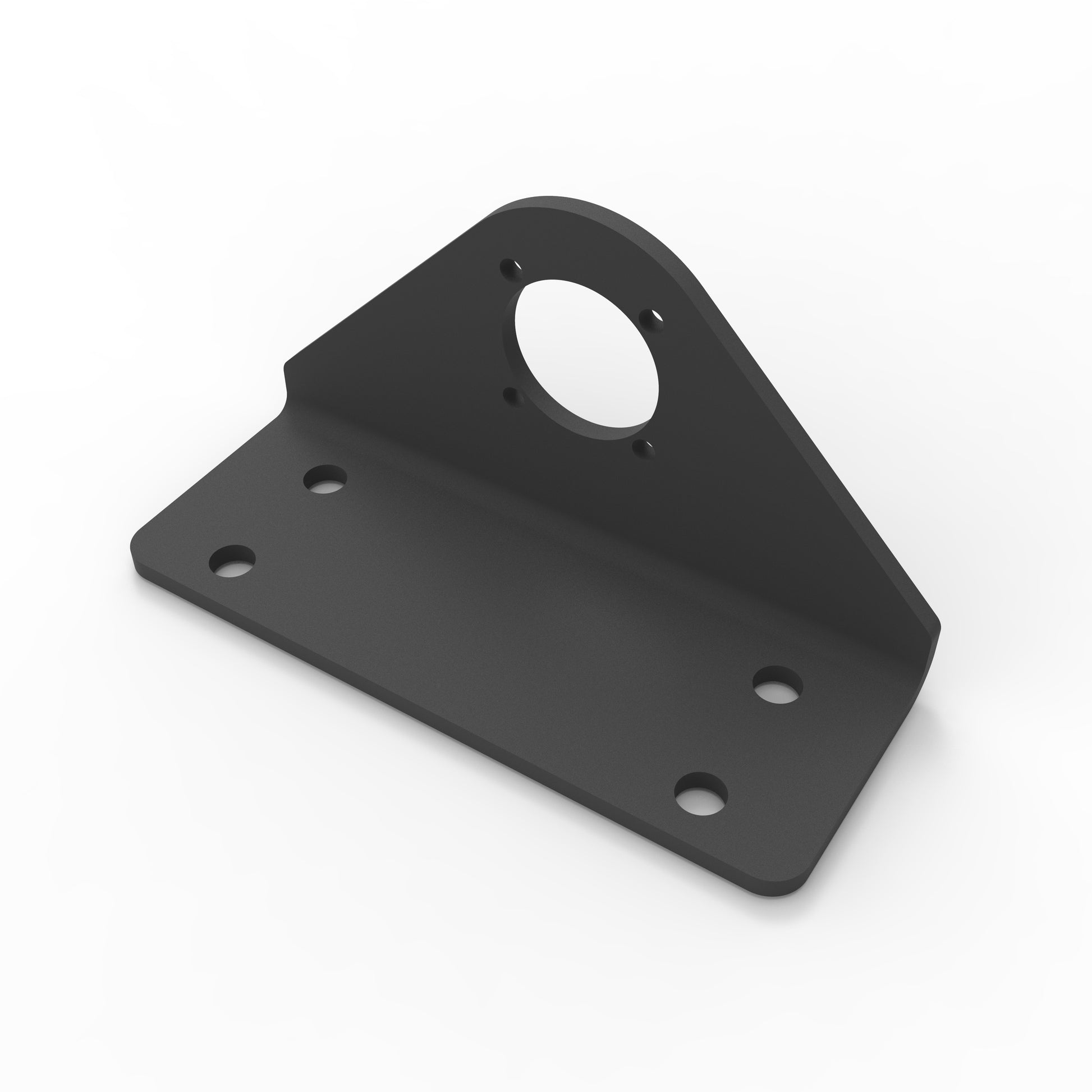

• Model 2 (U-Bracket): A sturdy U-shaped/channel design offering extended mounting points and increased surface area for enhanced stability, perfect for applications requiring broader support.

Both models are precision-engineered for a perfect fit, ensuring your motor is held securely, reducing play, and extending the lifespan of your mechanical systems. Proudly Made in India, these brackets are a testament to quality and reliability.

Key Features:

• Superior Strength: Constructed from 3mm thick Mild Steel for ultimate rigidity and durability.

• Premium Matt Black Powder Coat Finish: Provides enhanced aesthetics, excellent scratch resistance, and superior corrosion protection.

• Precision Engineering: Custom-designed for a perfect, secure fit for 42mm and 45mm planetary gearbox motors.

• Versatile Mounting Options: Features precisely drilled mounting holes for easy and flexible integration into various chassis, frames, or project bases.

• Enhanced Stability: Ensures your motor remains firmly in place, even under demanding operational conditions.

• Wide Applications: Ideal for robotics, custom machinery, automation systems, educational setups, and general DIY projects.

• Proudly Made in India: Ensuring high-quality manufacturing standards.

Technical Specifications (Common & Model-Specific):

• Material: 3mm Thick Mild Steel (MS)

• Finish: Matt Black Powder Coated

• Compatibility: 42mm and 45mm diameter Planetary Gearbox Motors

• Motor Mounting Diameter: Ø35mm (circular cutout for motor body)

Model 1 (L-Bracket) Specific Dimensions:

• Overall Height: 58mm

• Base Length: 40mm

• Bracket Width: 28mm (motor side), 45mm (base plate)

• Mounting Hole Diameters: Ø26.4mm, Ø4.3mm, Ø6.4mm

• Weight: 100 Gms

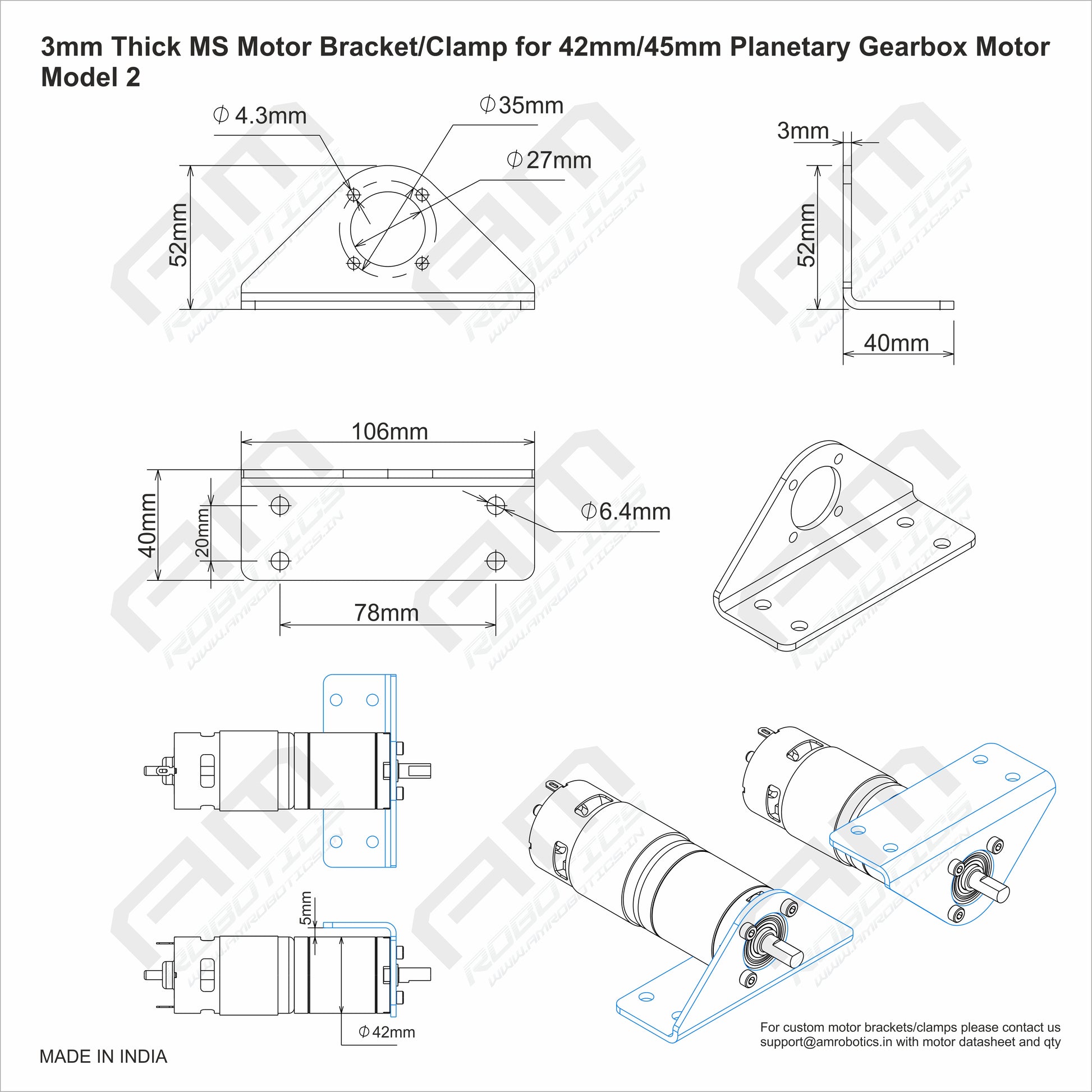

Model 2 (U-BraWeightcket) Specific Dimensions:

• Overall Height: 52mm

• Base Length: 106mm

• Bracket Width: 40mm (base part)

• Mounting Hole Diameters: Ø4.3mm, Ø6.4mm


• Weight: 160 Gms

Package Includes:

• 1 x 3mm Thick MS Motor Mounting Bracket/Clamp (Matt Black - Model 2)

For Custom Requirements: Looking for custom motor brackets or clamps? Please get in touch with us at support@amrobotics.in with your motor datasheet and required quantity for bespoke solutions.
