3mm Thick MS Motor Mounting Bracket/Clamp for NEMA17 Planetary Gearbox Motors - Model 1 (Matt Black)

Ensure the secure and stable mounting of your NEMA17 planetary gearbox motors with our high-quality 3mm Thick MS Motor Mounting Bracket/Clamp, Model 1. This bracket is engineered from durable Mild Steel (MS) and features a sleek matt black powder-coated finish, offering both superior strength and a professional aesthetic for your builds.

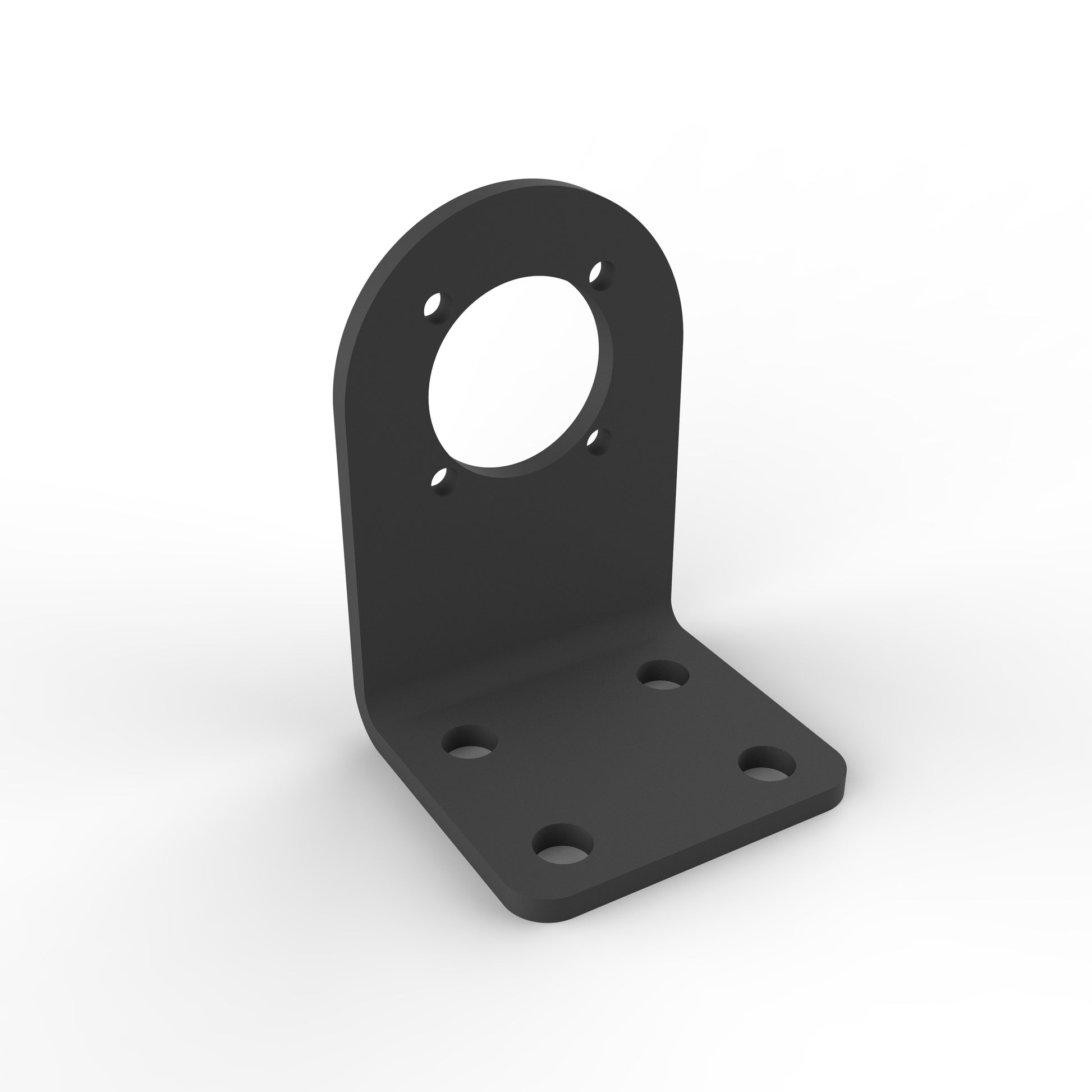

Designed specifically for NEMA17 planetary gearbox motors, this L-shaped bracket provides a precise and snug fit, minimizing vibrations and maximizing the stability of your motor. The 3mm thick construction ensures exceptional rigidity and longevity, making it ideal for applications demanding reliable motor fixation.

The matt black powder coating not only enhances the visual appeal of your project but also provides a resilient layer of protection against scratches, chips, and corrosion, ensuring your bracket performs reliably in various environments.

Key Features:

• Superior Strength: Constructed from 3mm thick Mild Steel for excellent rigidity and durability, ensuring secure motor mounting.

• Premium Matt Black Powder Coat Finish: Provides a sleek, professional look while offering enhanced resistance to corrosion and scratches.

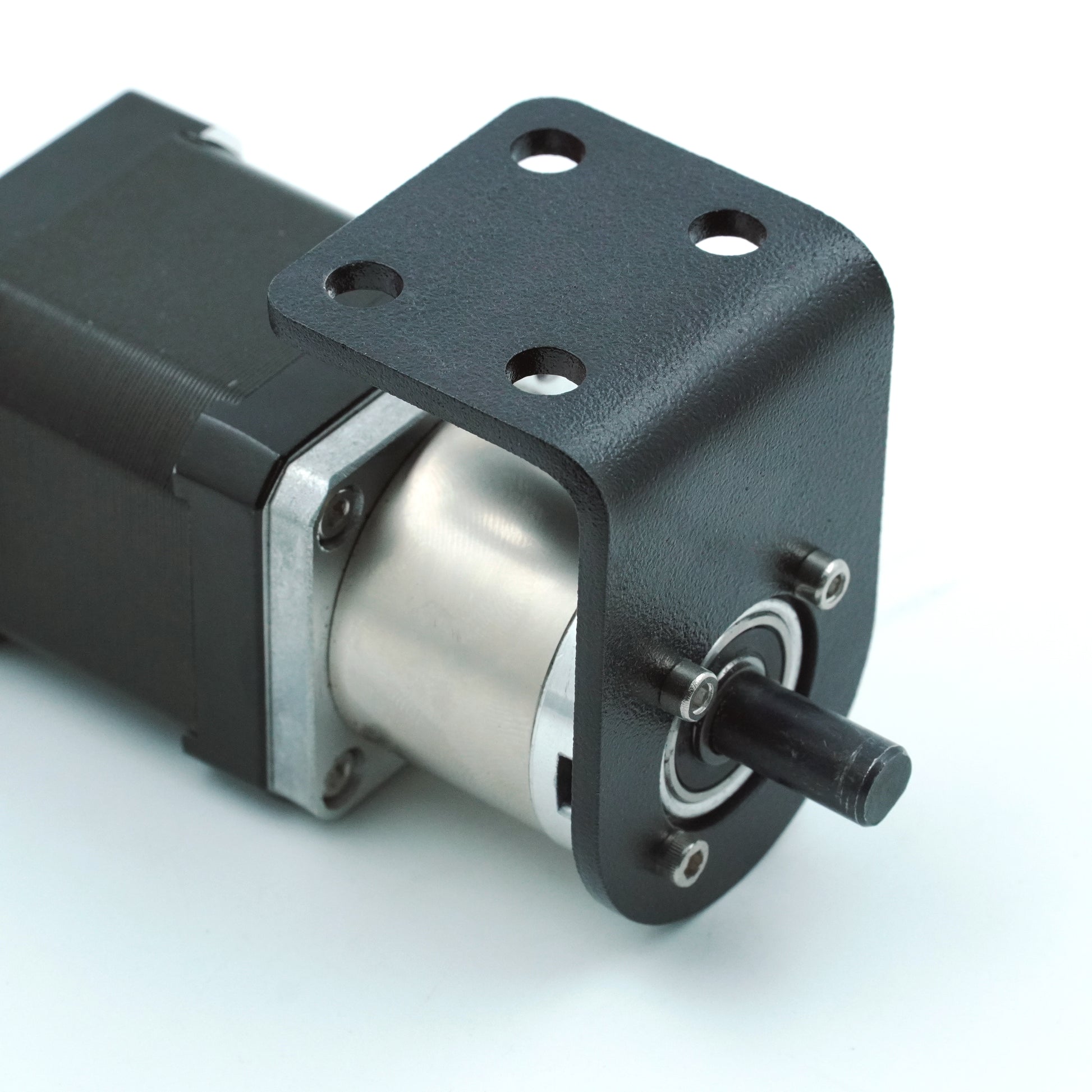

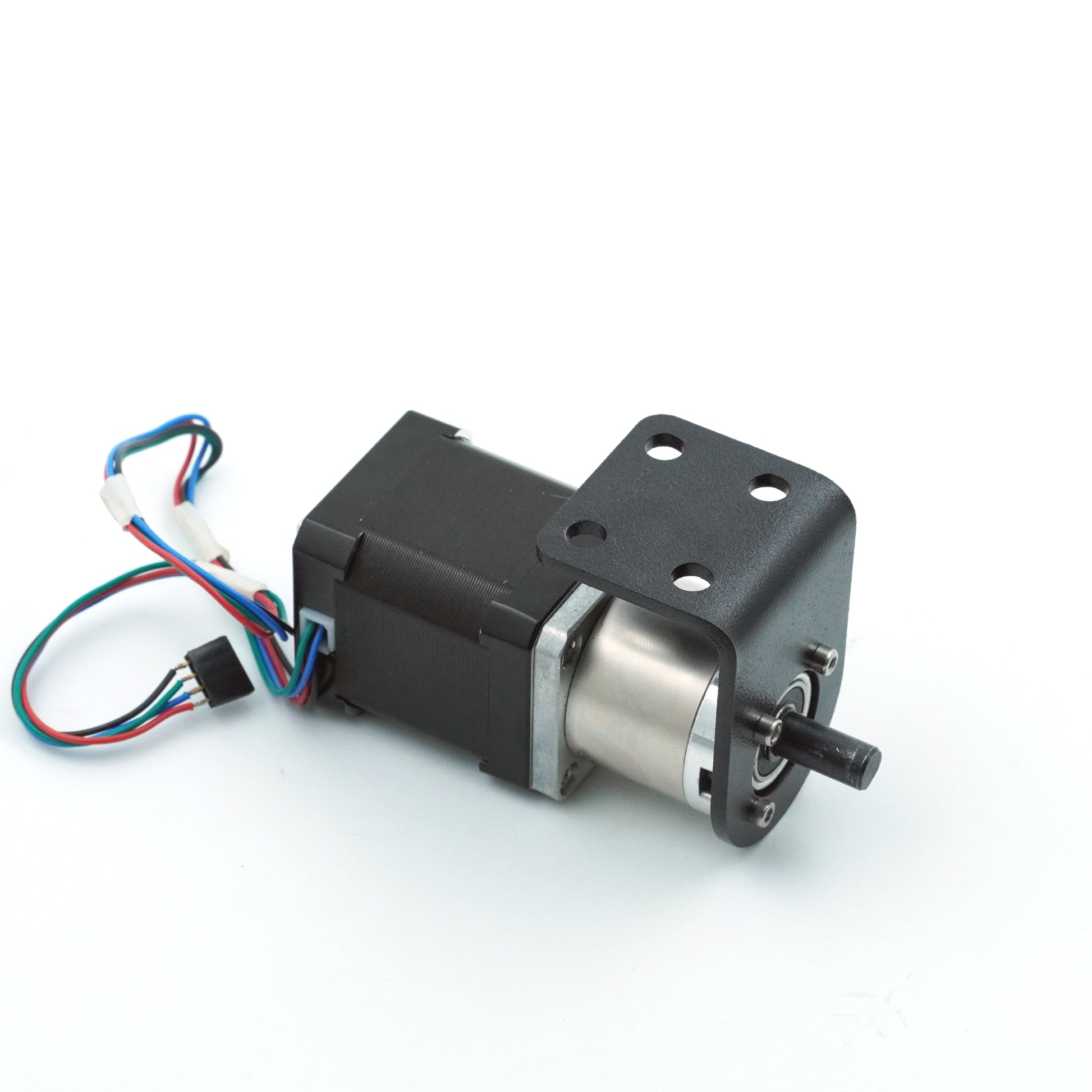

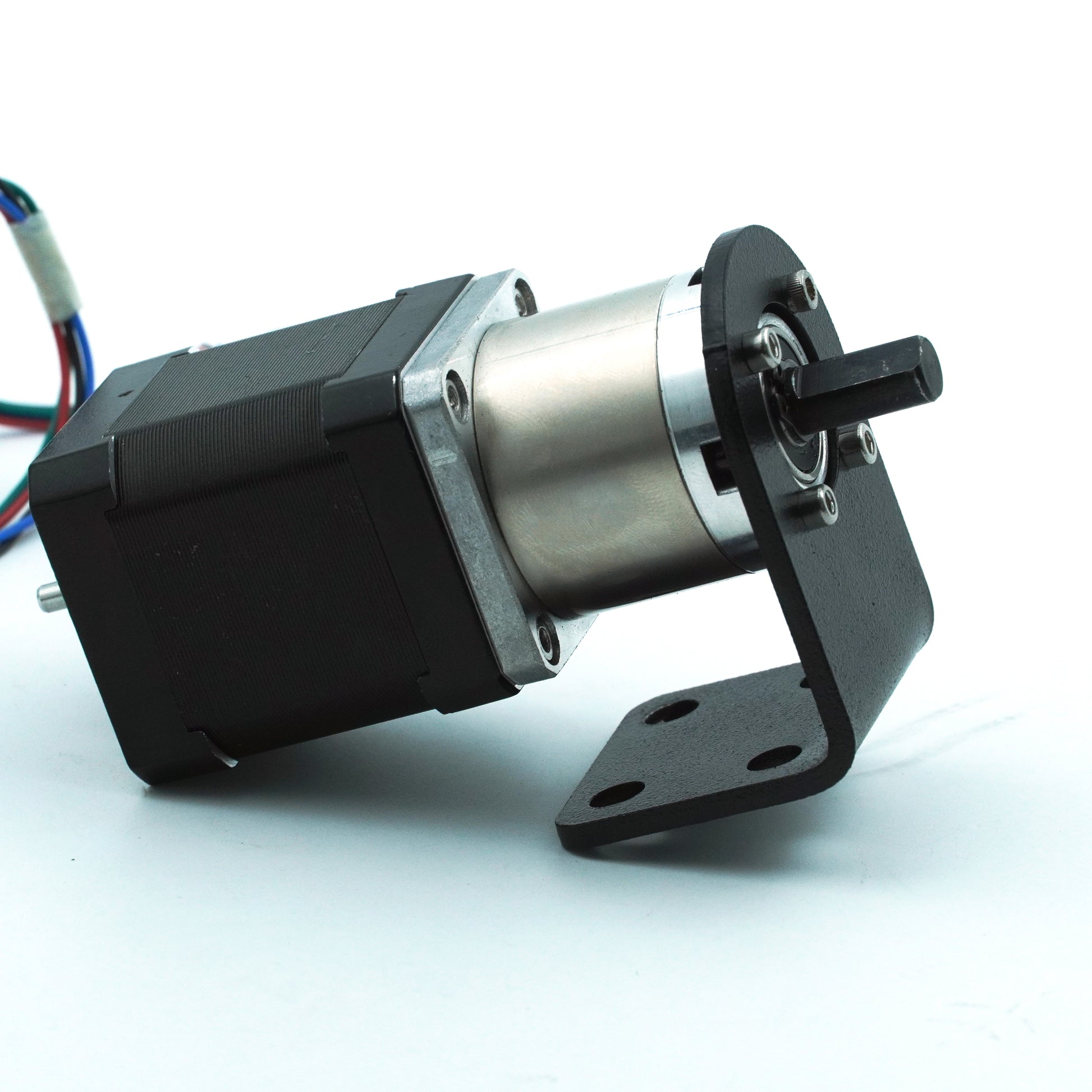

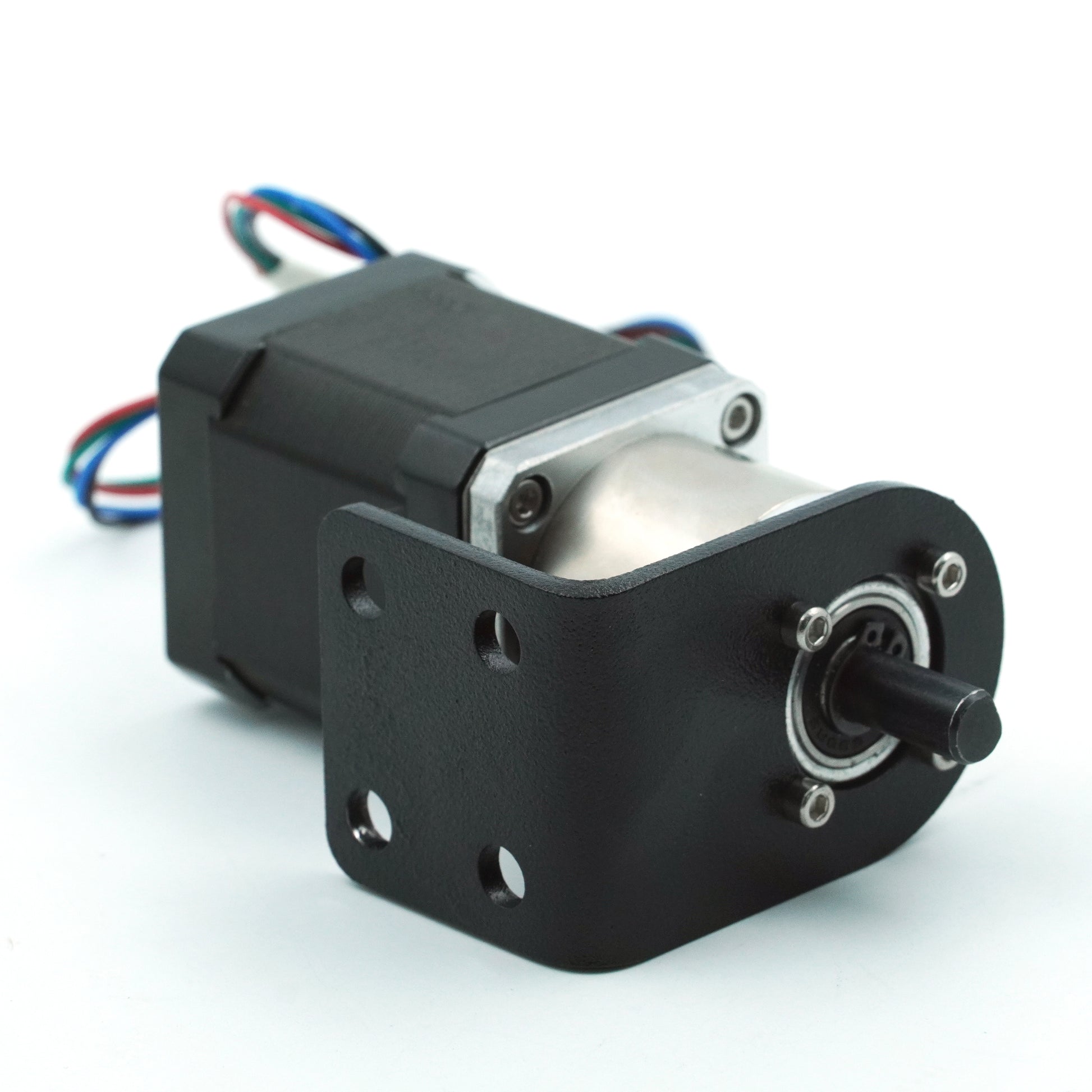

• Precision Fit for NEMA17: Custom-designed to perfectly accommodate NEMA17 planetary gearbox motors, ensuring a snug and vibration-free attachment.

• Versatile Mounting: Features multiple precisely drilled holes for easy and flexible attachment to your project's frame or chassis.

• Compact & Stable Design: The L-shaped form factor is space-efficient while providing robust support for your motor.

• Wide Applications: Ideal for 3D printers, CNC machines, robotics, automation projects, and any application requiring a stable NEMA17 motor mount.

• Proudly Made in India: Ensures quality craftsmanship and reliability.

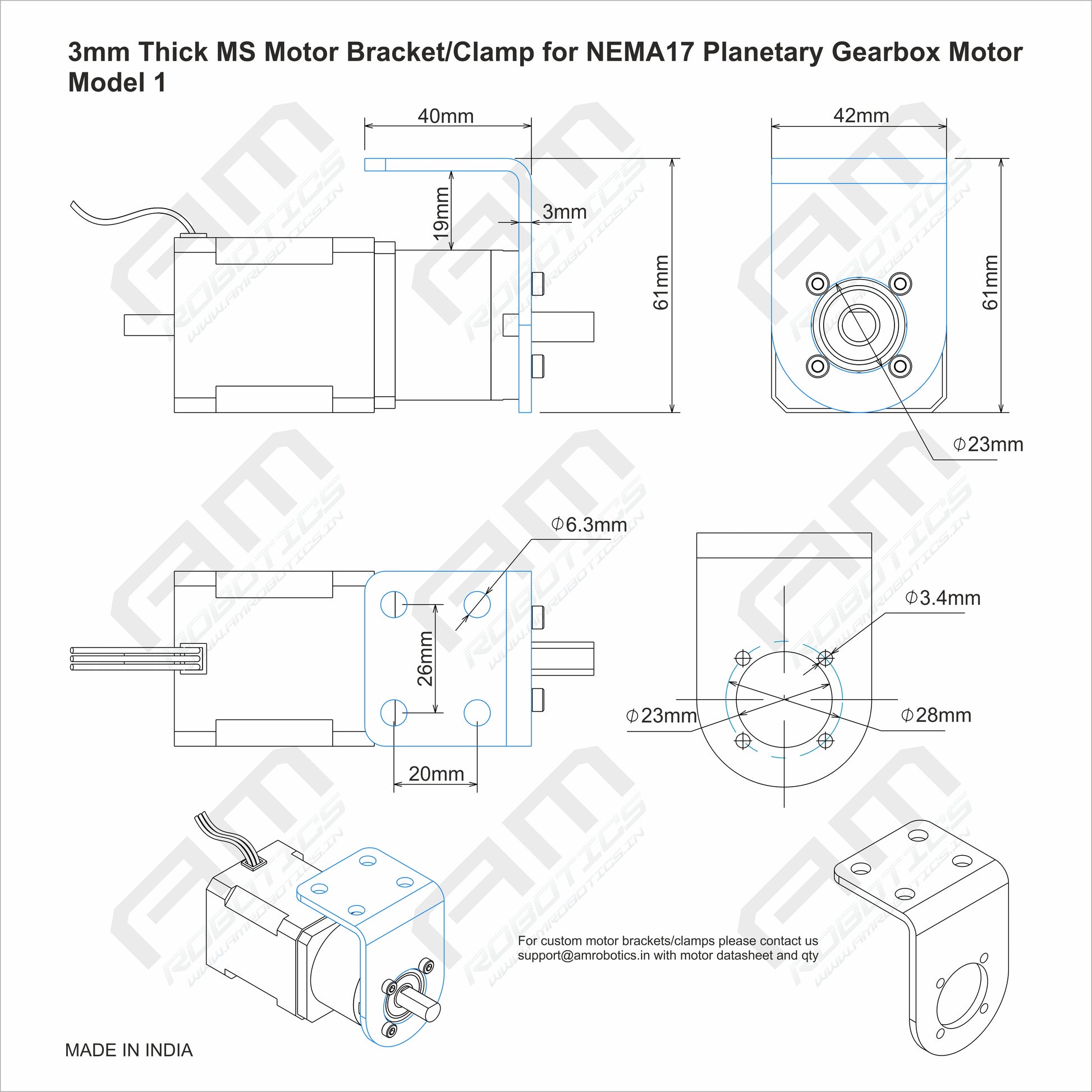

Technical Specifications:

• Material: 3mm Thick Mild Steel (MS)

• Finish: Matt Black Powder Coated

• Compatibility: NEMA17 Planetary Gearbox Motors

• Overall Height: 61mm

• Base Length: 42mm (overall mounting base)

• Bracket Depth: 40mm (from front to back)

• Bracket Width (Mounting Flange): 19mm (width of the bent side)

• Motor Mounting Hole Diameter: Ø23mm (circular cutout for gearbox shaft)

• Motor Mounting Bolt Hole Diameter: Ø3.4mm (for NEMA17 motor's mounting bolts)

• Motor Mounting Bolt Hole Spacing: 28mm (center-to-center, square pattern)

• Base Mounting Hole Diameter: Ø6.3mm (for attaching bracket to surface)

• Base Mounting Hole Spacing: 20mm (center-to-center on the base plate)

Package Includes:

• 1 x 3mm Thick MS Motor Mounting Bracket/Clamp for NEMA17 Planetary Gearbox Motor - Model 1 (Matt Black)

For Custom Requirements: Looking for custom motor brackets or clamps? Please get in touch with us at support@amrobotics.in with your motor datasheet and required quantity for bespoke solutions.
