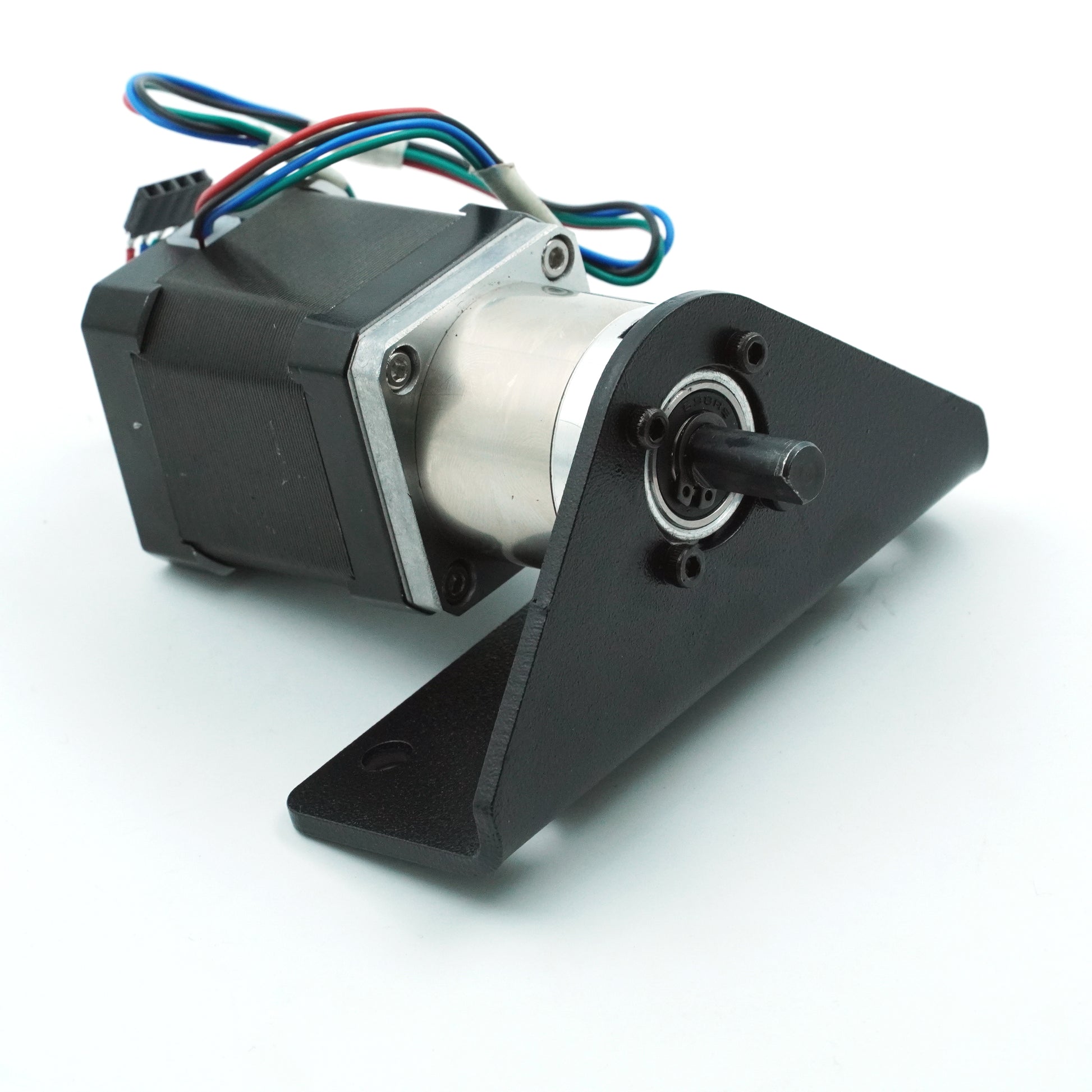

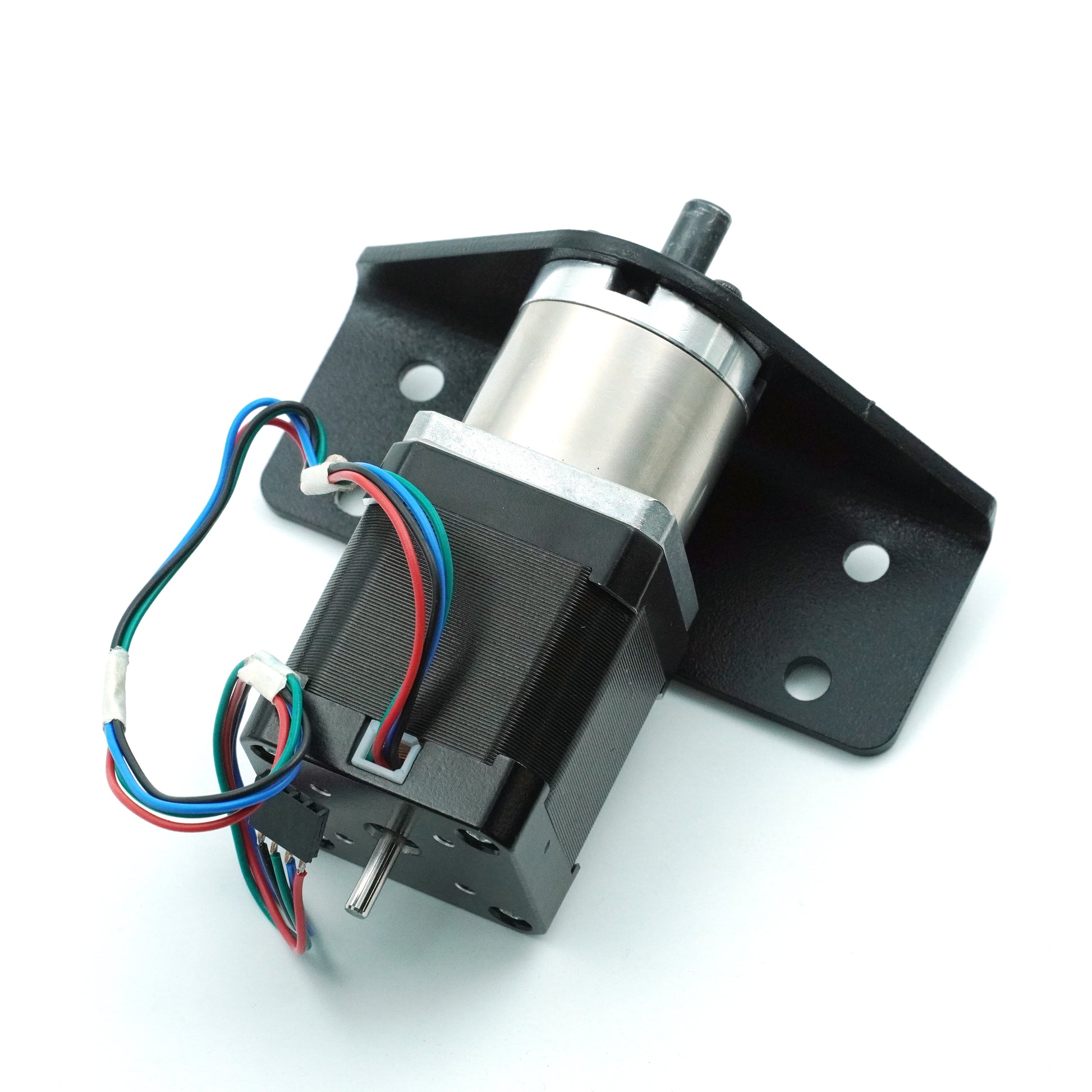

3mm Thick MS Motor Mounting Bracket/Clamp for NEMA17 Planetary Gearbox Motors - Model 2 (Matt Black)

Elevate the stability and aesthetics of your NEMA17 planetary gearbox motor setups with our precision-engineered 3 mm-thick MS Motor Mounting Bracket, Model 2. This distinctively designed bracket, finished with a durable matt black powder coating, provides exceptional strength and a sleek, professional look.

Crafted from high-grade Mild Steel (MS) with a substantial 3mm thickness, this bracket is built to withstand vibrations and heavy loads, ensuring your NEMA17 motor remains firmly in place. Its unique triangular base and vertical mounting plate are optimized for stable positioning, making it ideal for applications where robust support is critical.

The matt black powder coating not only gives the bracket a sophisticated appearance but also provides superior resistance against scratches, chips, and corrosion, ensuring long-lasting performance in various environments. Weighing in at 160 g, it offers a solid foundation without adding excessive bulk.

Key Features:

• Robust & Durable: Made from 3mm thick Mild Steel, ensuring high strength and resistance to mechanical stress.

• Premium Matt Black Powder Coat Finish: Offers a professional aesthetic and enhanced protection against wear and corrosion.

• Optimized for NEMA17: Specifically designed for a precise and secure fit for NEMA17 planetary gearbox motors.

• Unique Stability Design: The triangular base provides excellent support and weight distribution for demanding applications.

• Versatile Mounting: Features multiple Ø6.3mm mounting holes on the base for flexible and secure attachment to various surfaces.

• Reliable Performance: Minimizes motor vibrations, extends component lifespan, and improves overall system accuracy.

• Ideal for: Robotics, 3D printers, CNC machines, industrial automation, and other precision engineering projects.

• Proudly Made in India: Guarantees quality craftsmanship and reliability.

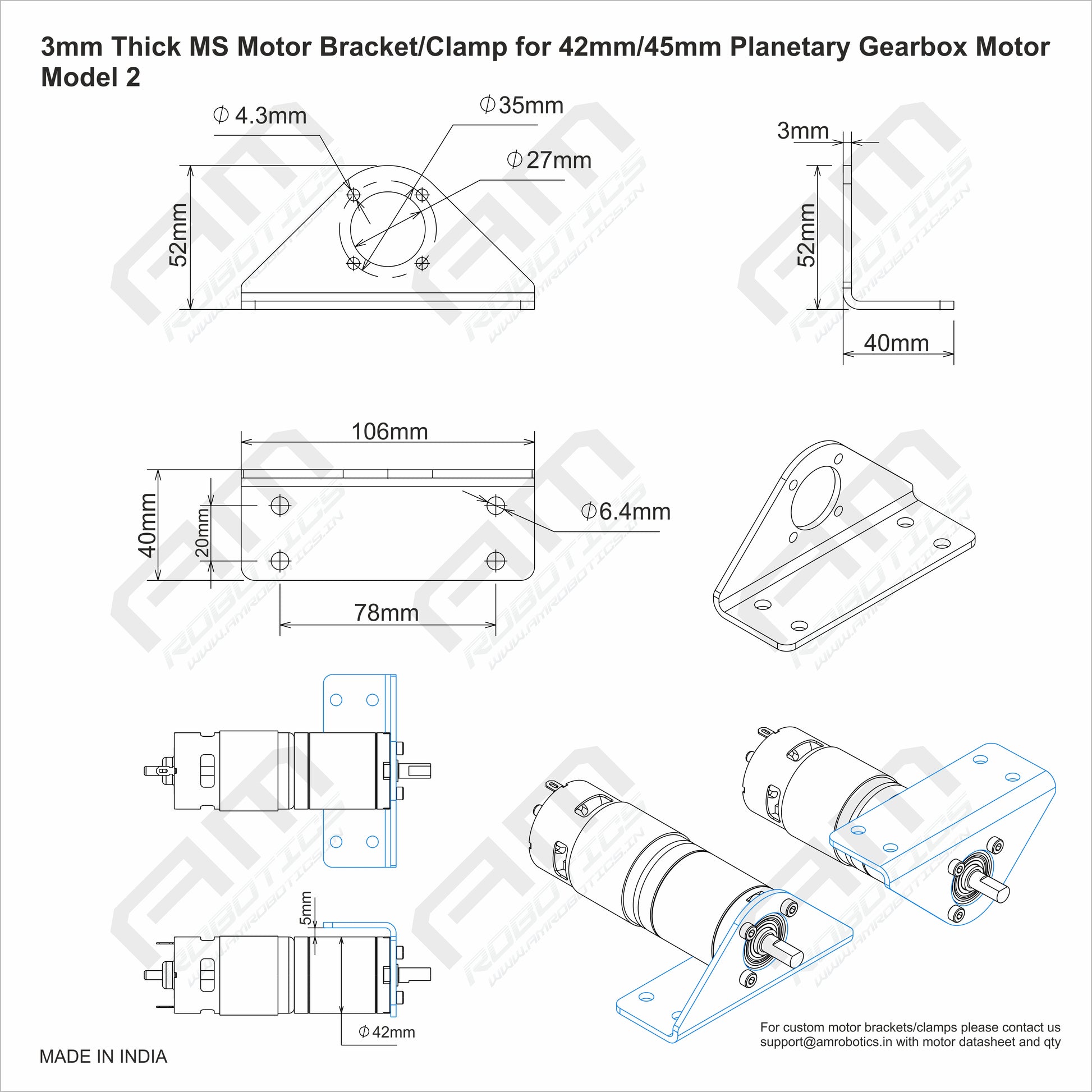

Technical Specifications:

• Material: 3mm Thick Mild Steel (MS)

• Finish: Matt Black Powder Coated

• Compatibility: NEMA17 Planetary Gearbox Motors

• Weight: 160 gms

• Overall Height: 72mm

• Base Length: 102mm (maximum length of the triangular base)

• Motor Mounting Plate Height: 53mm

• Bracket Width (Motor Mounting Side): 11mm

• Motor Mounting Bolt Hole Diameter: (Standard NEMA17 pattern, holes around the central motor shaft opening)

• Base Mounting Hole Diameter: Ø6.3mm

• Base Mounting Hole Spacing: 20mm (from edge, and between adjacent holes where applicable on the base)

Package Includes:

• 1 x 3mm Thick MS Motor Mounting Bracket/Clamp for NEMA17 Planetary Gearbox Motor - Model 2 (Matt Black)

For Custom Requirements: Looking for custom motor brackets or clamps? Please get in touch with us at support@amrobotics.in with your motor datasheet and required quantity for bespoke solutions.
