3mm Thick MS Motor Mounting Bracket/Clamp for Rectangular Gearbox Motors - Model 1 (Matt Black)

Achieve unparalleled stability and flexibility for your projects using rectangular gearbox motors with our high-quality 3 mm-thick MS Motor Mounting Bracket/Clamp, Model 1. Engineered from durable Mild Steel (MS) and finished with a sleek matt black powder coating, this bracket not only provides superior structural integrity but also enhances the aesthetic appeal of your assembly.

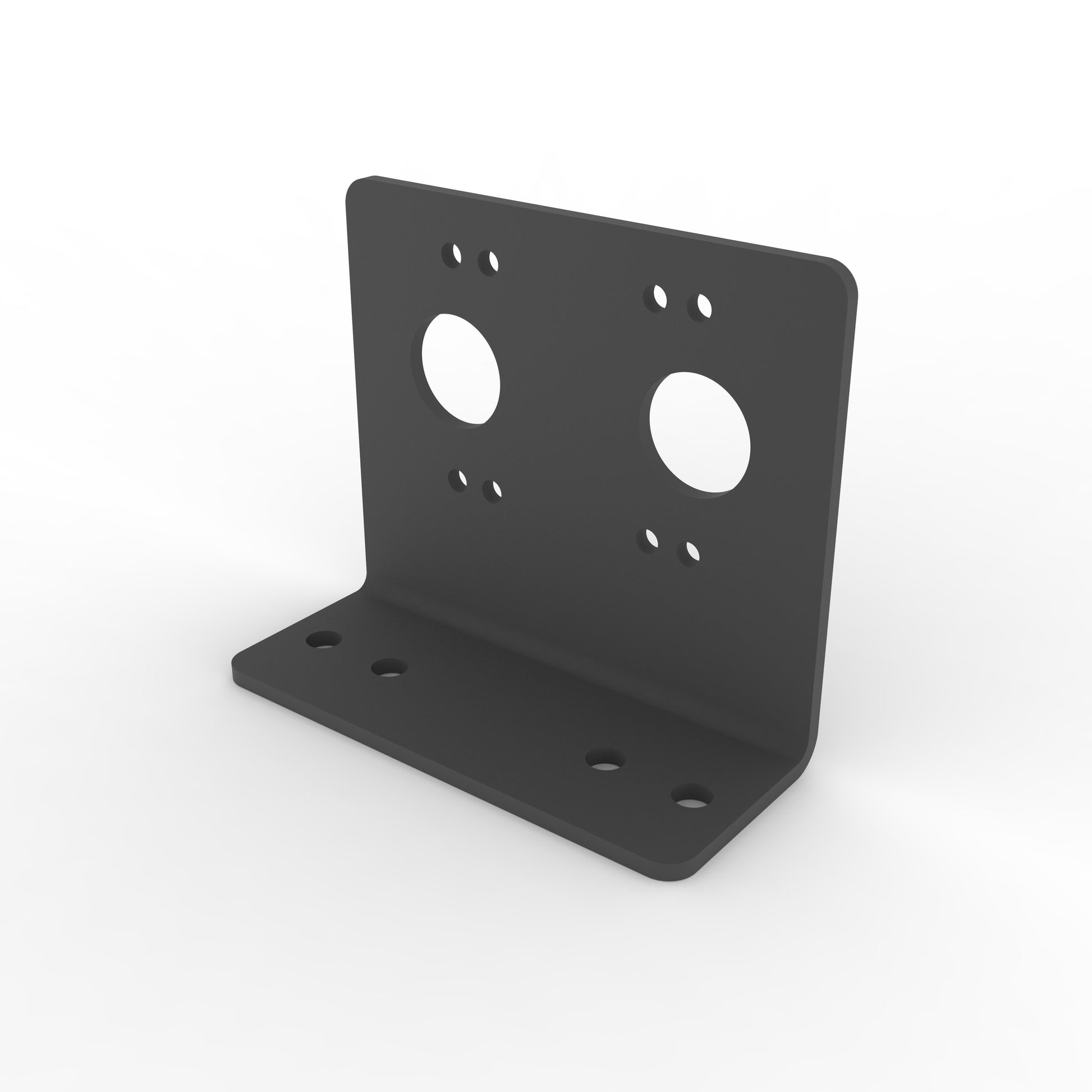

Designed with versatility in mind, this L-shaped bracket is specifically contoured to cradle various rectangular gearbox motors securely. A key feature of this model is its reversible design: the bracket can be used interchangeably on both the left and right sides of your motor, simplifying installation and reducing the need for multiple specialized parts.

The substantial 3mm thickness of the Mild Steel ensures exceptional rigidity and resistance to vibrations, guaranteeing your motor remains firmly in position even under demanding operational conditions. The matt black powder coating offers robust protection against scratches, chips, and corrosion, extending the bracket's lifespan and maintaining its professional appearance. Weighing 240 g, it provides a solid and reliable mounting solution.

Key Features:

• Robust & Durable: Constructed from 3mm thick Mild Steel for maximum strength and vibration damping.

• Premium Matt Black Powder Coat Finish: Offers a sophisticated look and enhanced protection against environmental wear and tear.

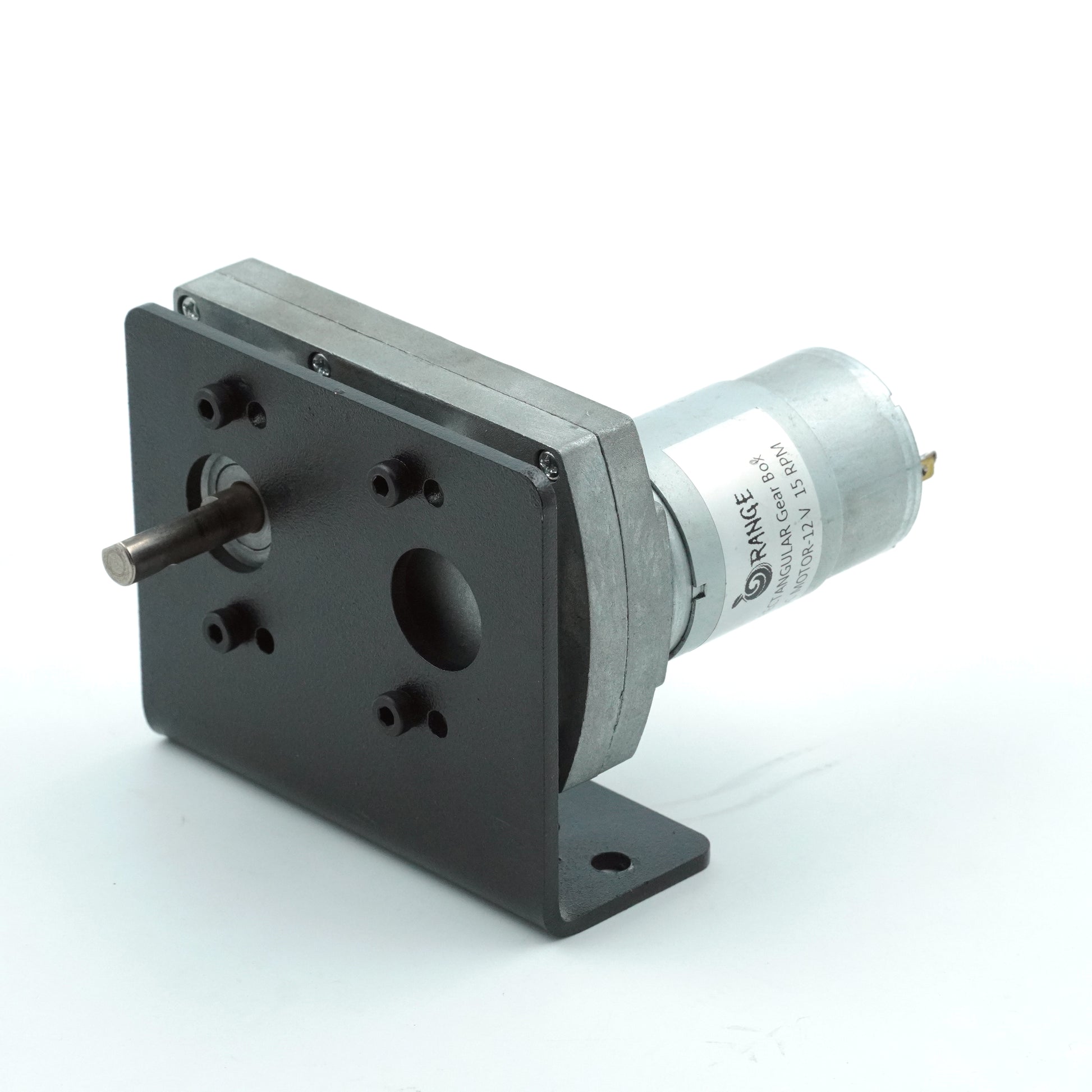

• Designed for Rectangular Gearbox Motors: Precisely cut to fit various rectangular-shaped gearbox motors, providing a secure clamp.

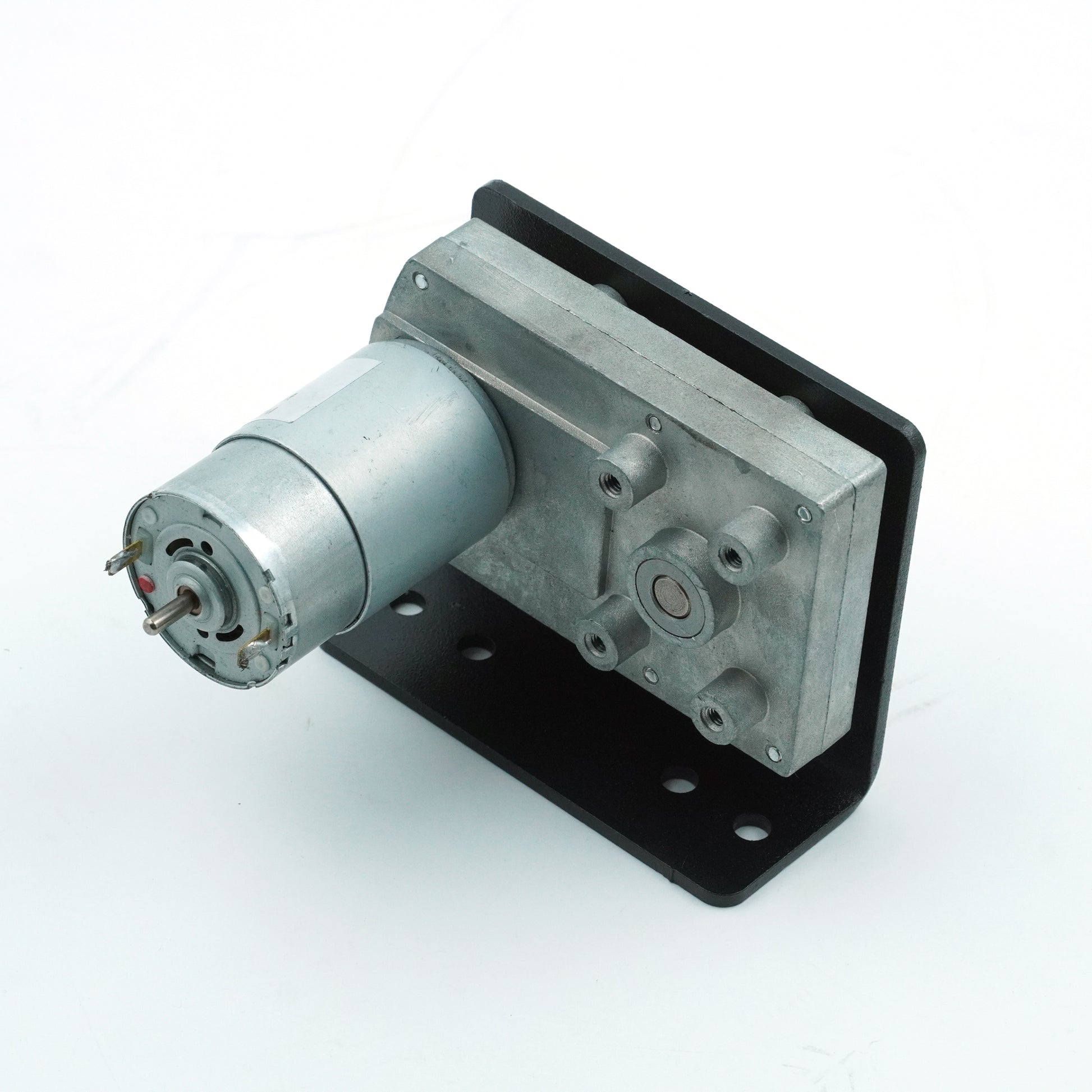

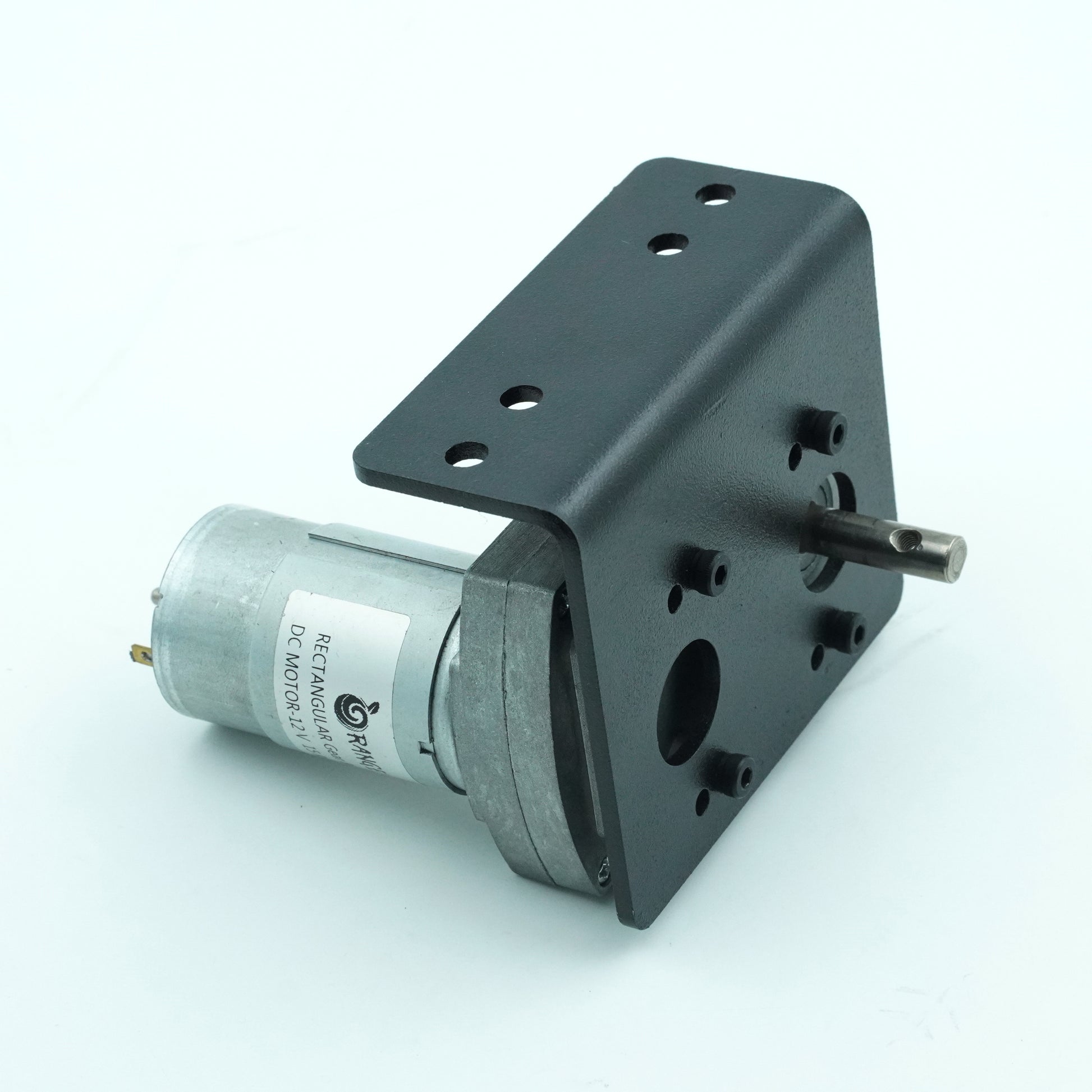

• Reversible / Left & Right Side Use: Innovative design allows the same bracket to be used for mounting on either the left or right side of your motor, offering great flexibility.

• Versatile Mounting Options: Features multiple Ø4.3mm and Ø6.4mm pre-drilled holes for easy and adaptable attachment to your frame or chassis.

• Enhanced Stability: Ensures your motor is held securely, minimizing movement and improving overall system reliability.

• Ideal for: Industrial machinery, robotics, automation systems, custom fabrication, and any application utilizing rectangular gearbox motors.

• Proudly Made in India: Guarantees superior quality and craftsmanship.

Technical Specifications:

• Material: 3mm Thick Mild Steel (MS)

• Finish: Matt Black Powder Coated

• Compatibility: Various Rectangular Gearbox Motors

• Weight: 240 gms

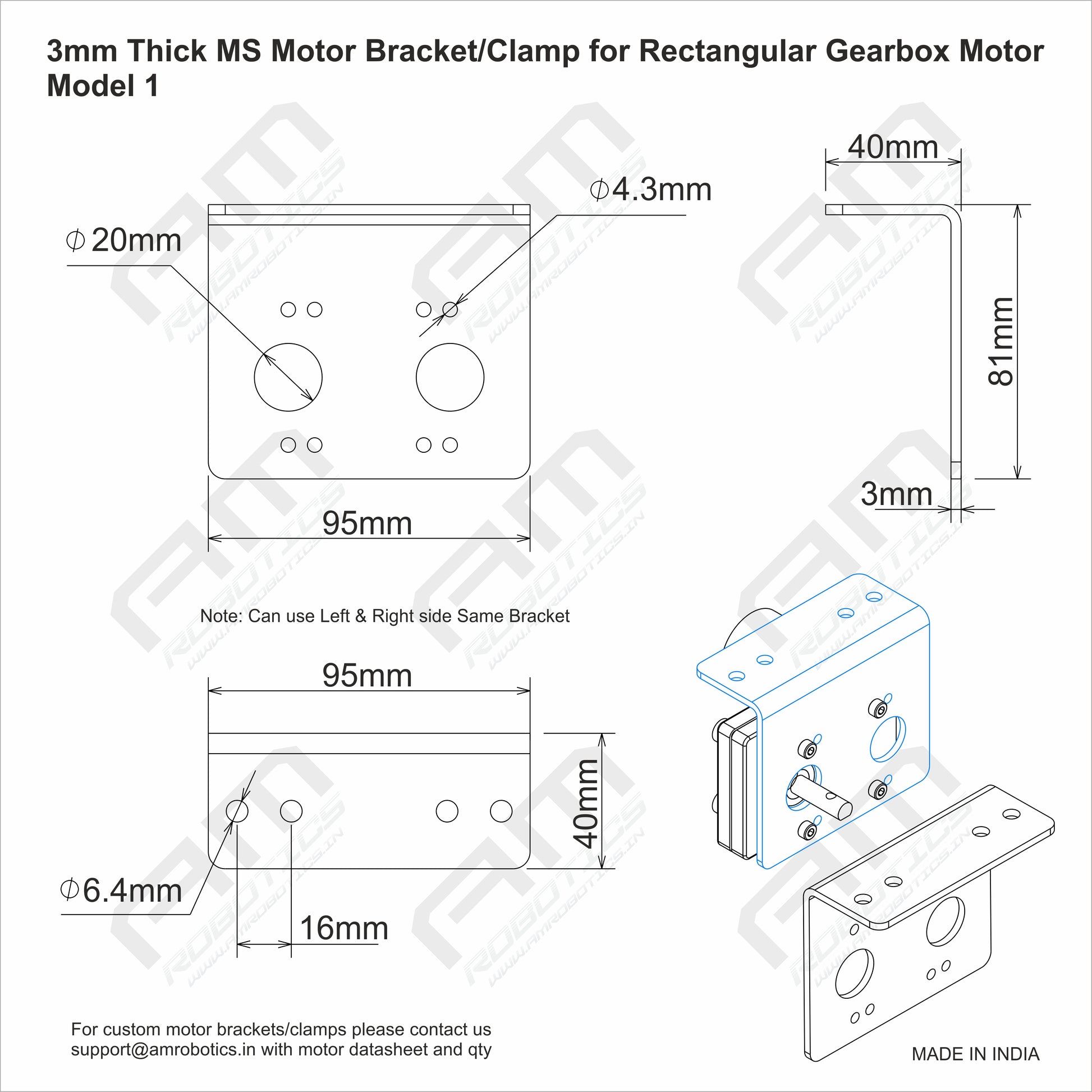

• Overall Height: 81mm

• Base Length: 95mm

• Bracket Width: 40mm

• Motor Mounting Opening: Rectangular opening with two Ø20mm circular cutouts (designed to fit corresponding motor body/shaft extensions).

• Motor Mounting Bolt Hole Diameter: Ø4.3mm (four holes on the vertical motor-mounting plate)

• Base Mounting Hole Diameter: Ø6.4mm (four holes on the horizontal base plate)

• Base Mounting Hole Spacing: 16mm from edge, with standard spacing for the 95mm x 40mm base.

Package Includes:

• 1 x 3mm Thick MS Motor Mounting Bracket/Clamp for Rectangular Gearbox Motor - Model 1 (Matt Black)

For Custom Requirements: Looking for custom motor brackets or clamps? Please get in touch with us at support@amrobotics.in with your motor datasheet and required quantity for bespoke solutions.
