3mm Thick MS Motor Mounting Bracket/Clamp for Rectangular Gearbox Motors - Model 2 (Matt Black)

Provide unparalleled support and a professional finish to your projects utilizing larger or wider rectangular gearbox motors with our 3 mm-thick MS Motor Mounting Bracket/Clamp, Model 2. Expertly crafted from durable Mild Steel (MS) and featuring a sleek matt black powder-coated finish, this bracket combines superior structural integrity with enhanced aesthetics.

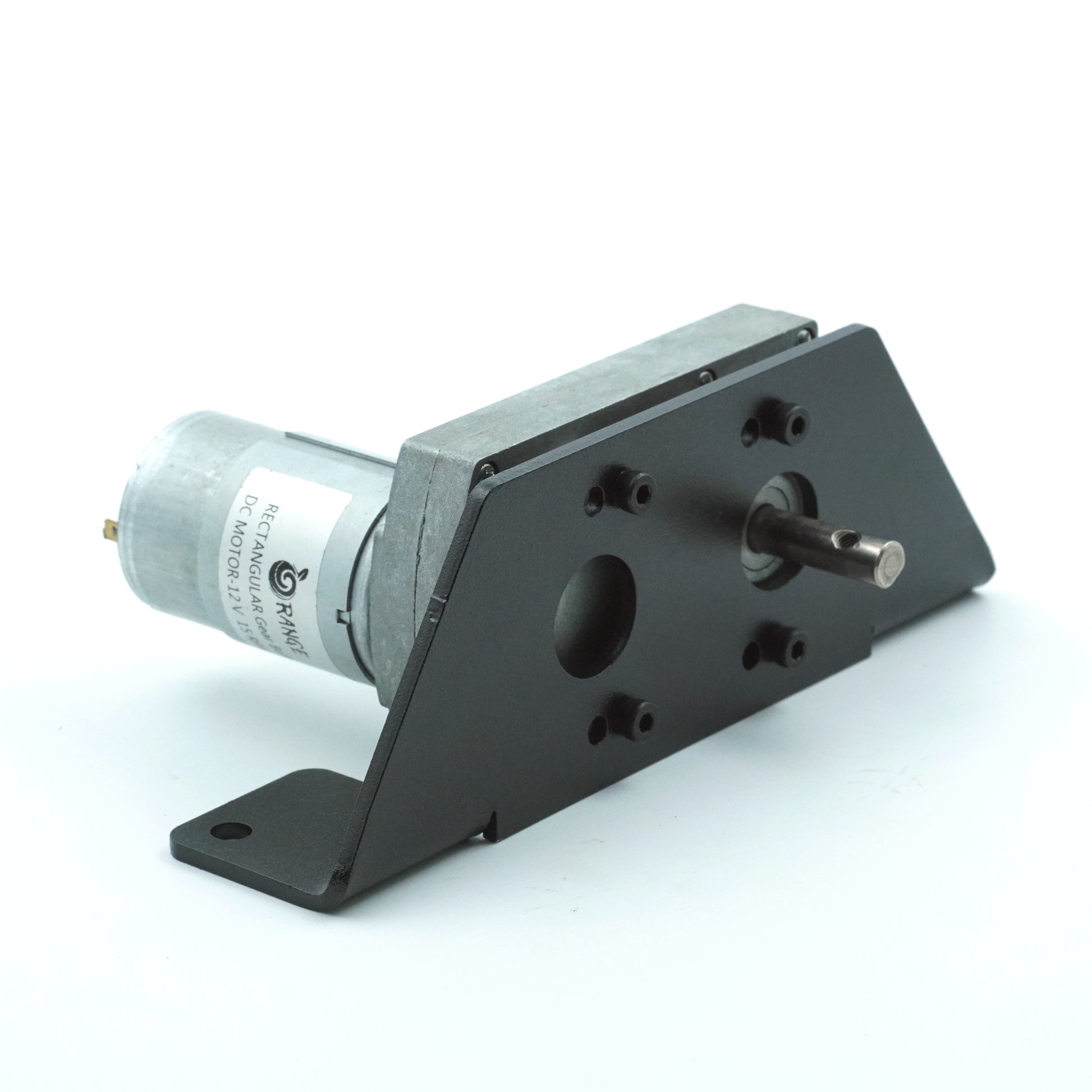

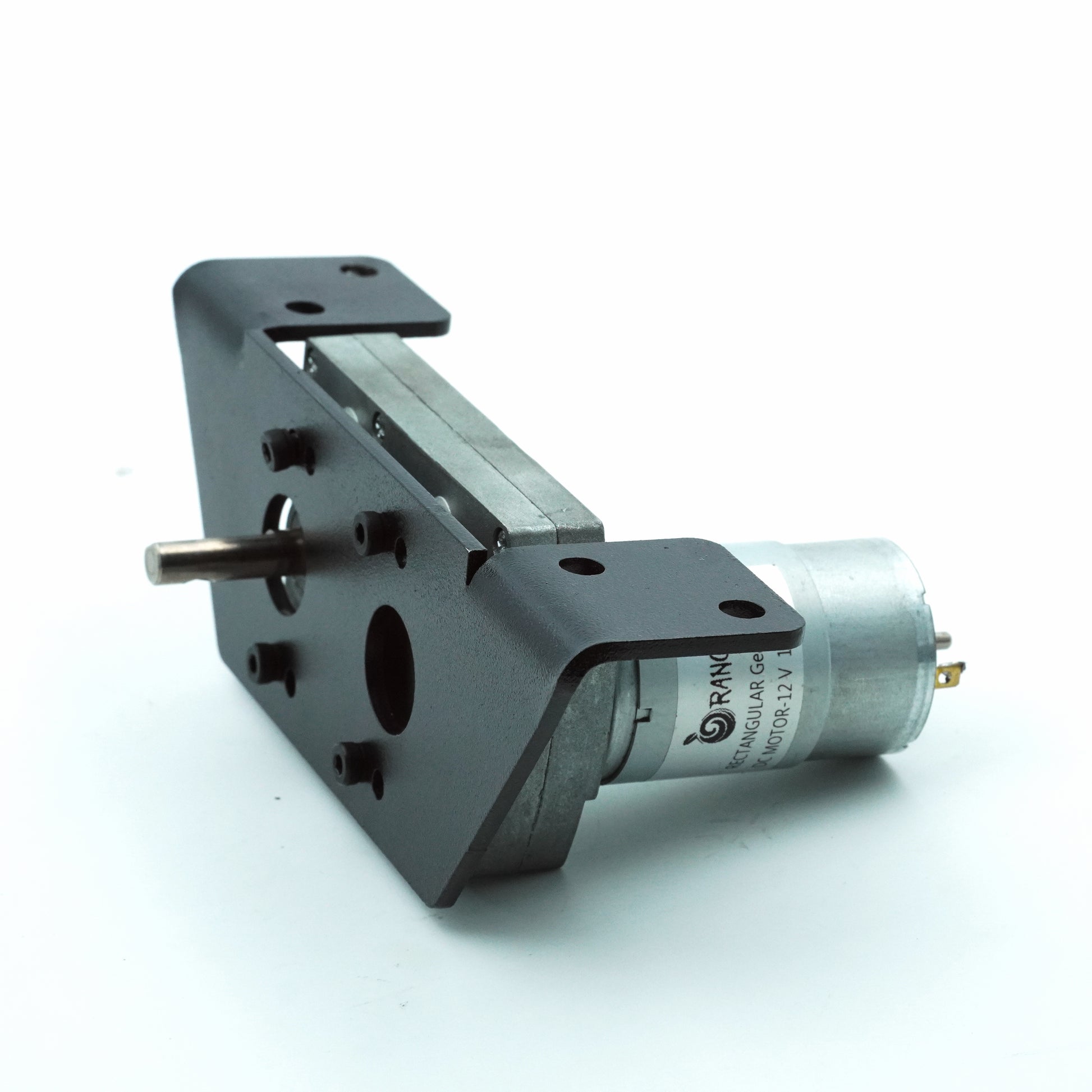

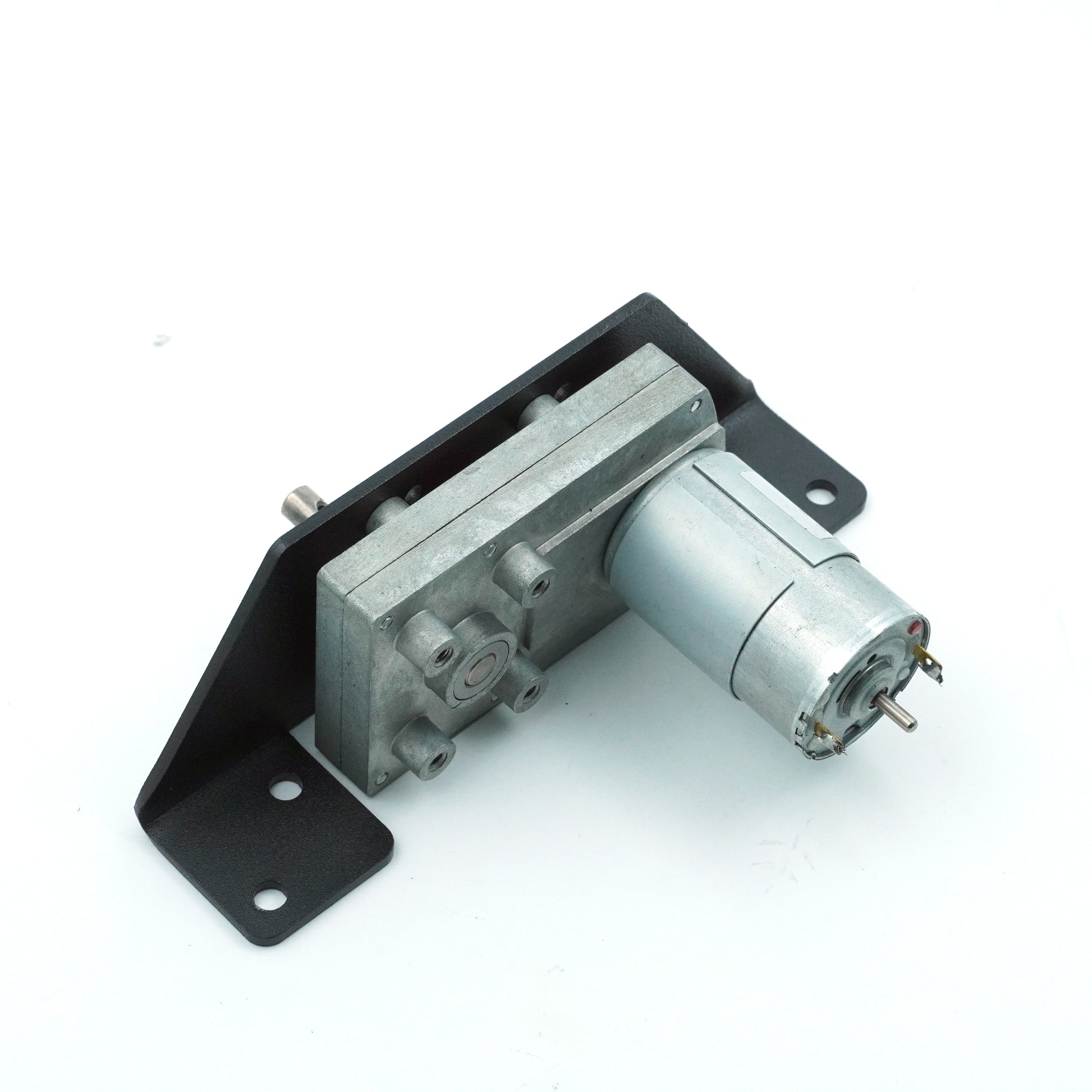

This Model 2 bracket distinguishes itself with an extended 172mm base, providing a significantly wider footprint for maximum stability and secure attachment to your frame or chassis. It's specifically contoured to firmly hold various rectangular gearbox motors. A key advantage of this design is its reversible nature: the bracket can be efficiently used for both left and right-side mounting of your motor, simplifying integration and offering greater versatility in your designs.

The substantial 3mm thickness of the Mild Steel ensures exceptional rigidity, effectively dampening vibrations and keeping your motor precisely in place, even under high-torque or dynamic conditions. The resilient matt black powder coating not only gives the bracket a sophisticated look but also provides robust protection against scratches, chips, and corrosion, ensuring long-term durability. Weighing 240 gms, this bracket offers a heavy-duty, reliable mounting solution.

Key Features:

• Heavy-Duty Construction: Built from 3mm thick Mild Steel for ultimate strength, rigidity, and vibration resistance.

• Premium Matt Black Powder Coat Finish: Delivers a professional, clean aesthetic and superior protection against wear and corrosion.

• Designed for Rectangular Gearbox Motors: Precisely engineered to fit and securely clamp various rectangular-shaped gearbox motors.

• Extended Base for Enhanced Stability: Features a 172mm long base providing a wide, stable platform for secure mounting.

• Reversible / Left & Right Side Use: Smart design allows the same bracket to be used interchangeably for left or right-side motor mounting.

• Ample Mounting Options: Equipped with multiple Ø4.3mm and Ø6.3mm pre-drilled holes for flexible and strong attachment points.

• Reliable Performance: Guarantees secure motor fixation, reducing stress on components and improving overall system longevity.

• Ideal for: Large-scale industrial machinery, advanced robotics, heavy automation systems, custom vehicle applications, and demanding engineering projects.

• Proudly Made in India: Ensuring high-quality manufacturing and craftsmanship.

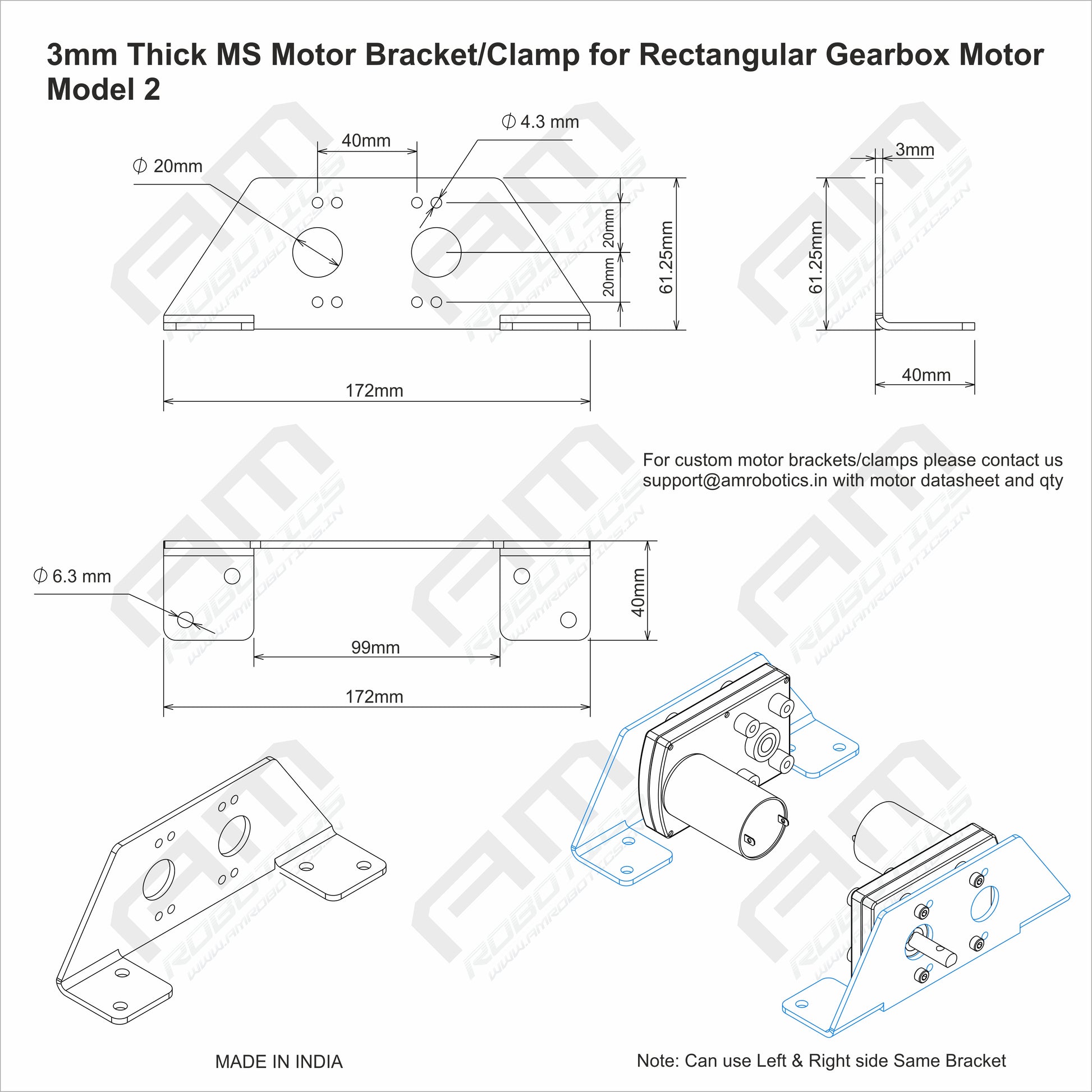

Technical Specifications:

• Material: 3mm Thick Mild Steel (MS)

• Finish: Matt Black Powder Coated

• Compatibility: Various Rectangular Gearbox Motors

• Weight: 240 gms

• Overall Height (Motor Mounting Plate): 61.25mm

• Base Length: 172mm

• Bracket Width (Base Flanges): 40mm

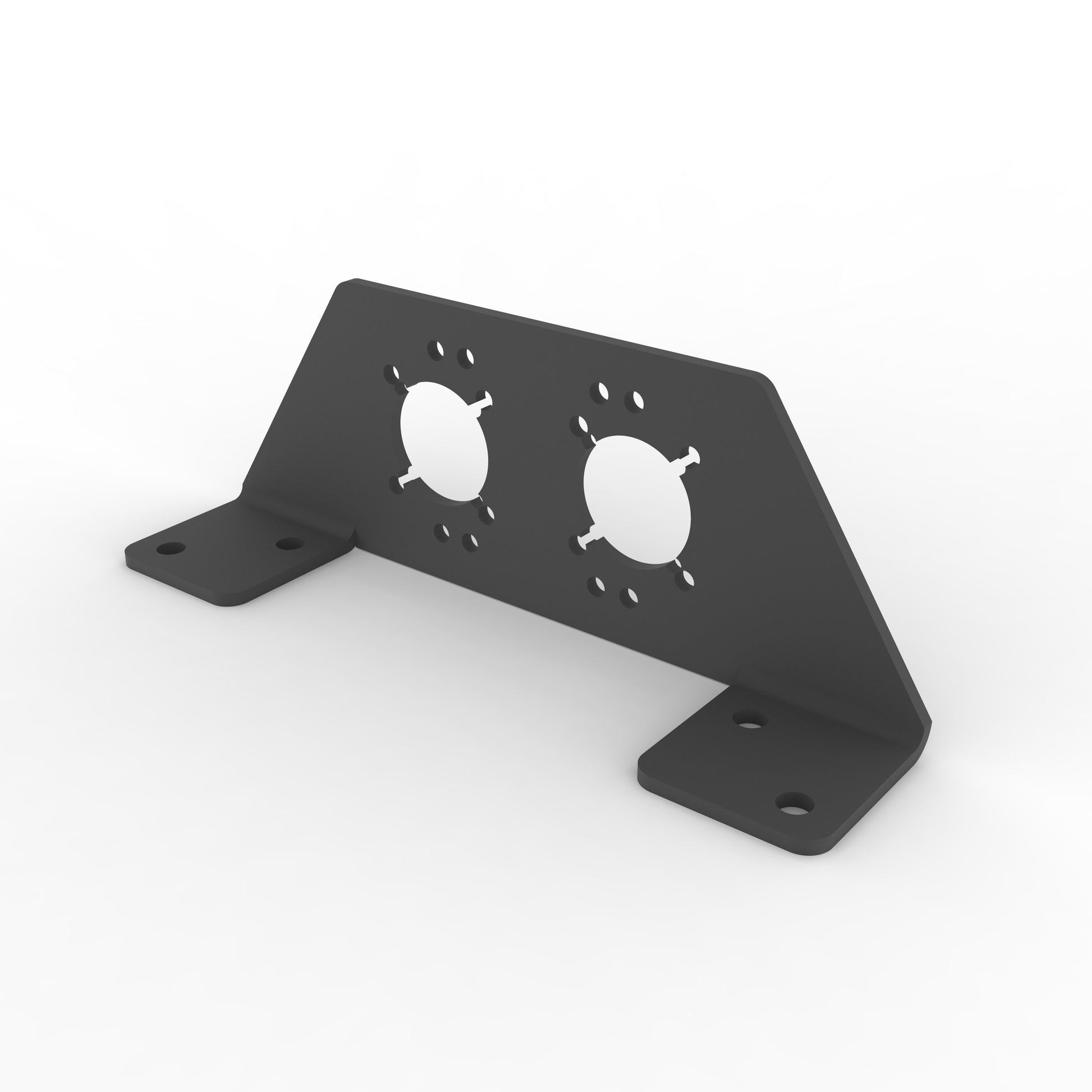

• Motor Mounting Opening: Designed for rectangular motors, with two Ø20mm circular cutouts.

• Motor Mounting Bolt Hole Diameter: Ø4.3mm (four holes on the vertical motor-mounting plate)

• Motor Mounting Bolt Hole Spacing (Vertical Plate): 40mm (horizontal), 20mm (vertical)

• Base Mounting Hole Diameter: Ø6.3mm (multiple holes on the base flanges)

• Base Mounting Hole Spacing (Along Length): 99mm (between inner sets of holes)

Package Includes:

• 1 x 3mm Thick MS Motor Mounting Bracket/Clamp for Rectangular Gearbox Motor - Model 2 (Matt Black)

For Custom Requirements: Looking for custom motor brackets or clamps? Please get in touch with us at support@amrobotics.in with your motor datasheet and required quantity for bespoke solutions.
