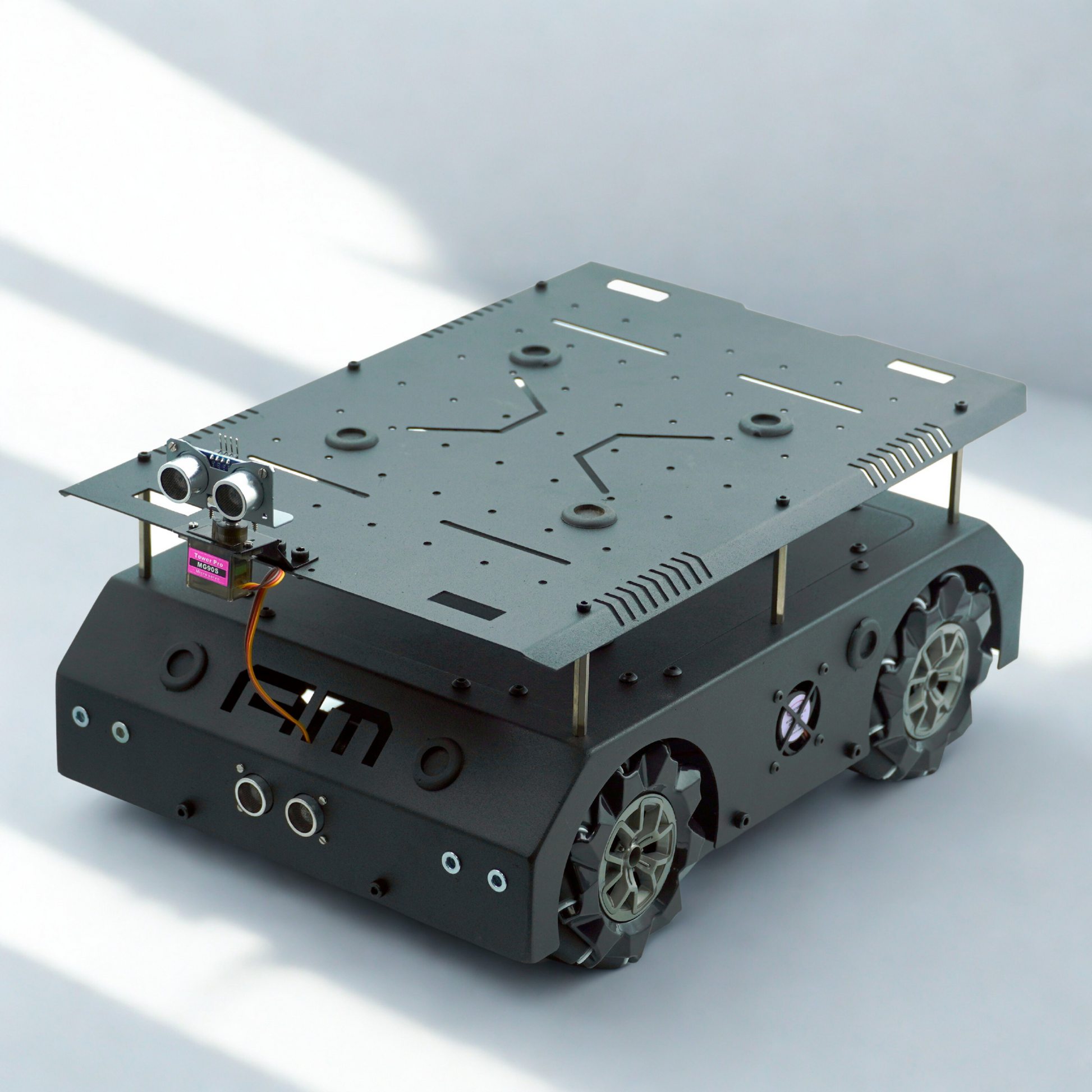

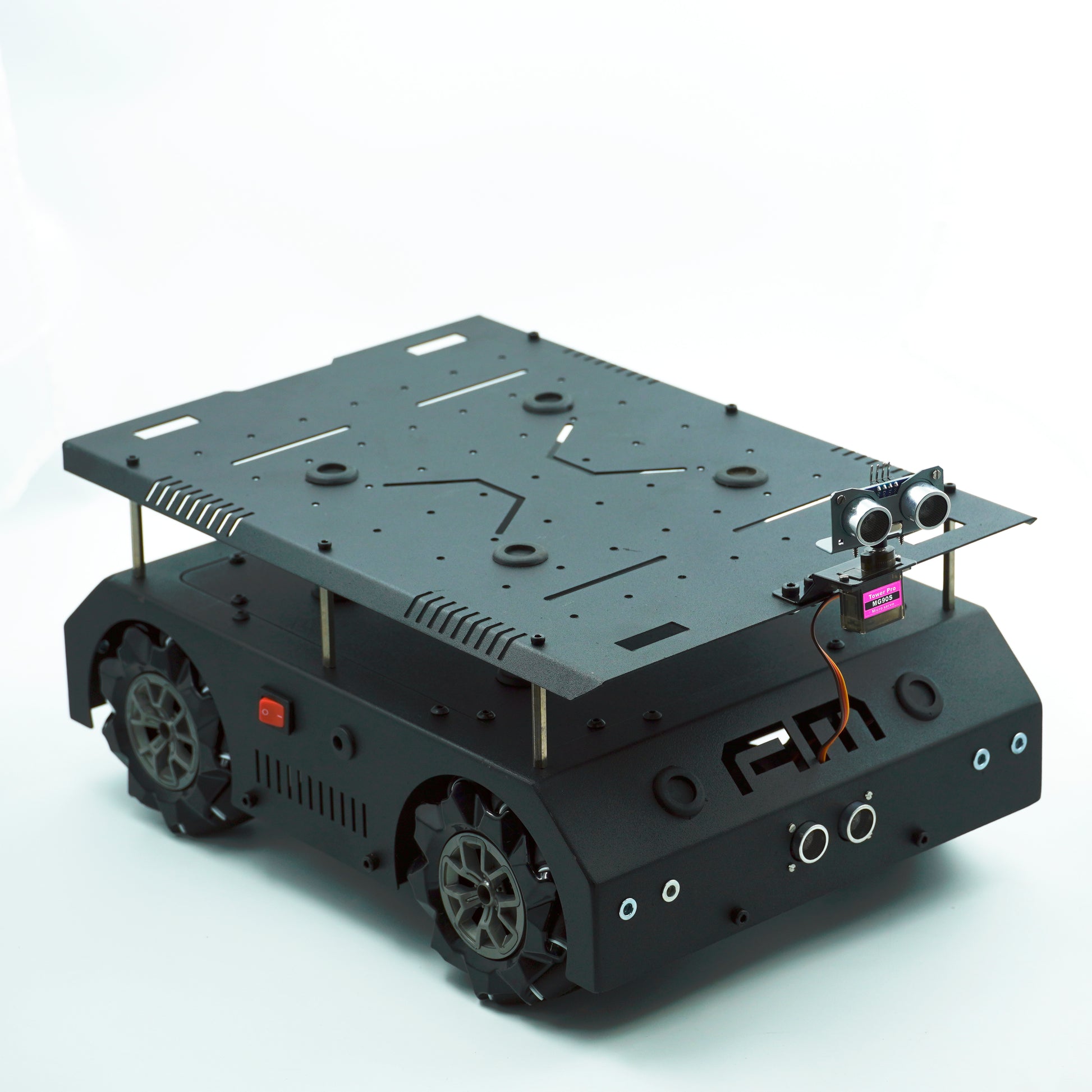

AM Robotics 97mm Mecanum Wheel DIY with 360° Omnidirectional Wheel Chassis Kit DIY Intelligent RC Robot Car Chassis DIY Learning Kit

Unleash your inner roboticist with the AM Robotics Meccanum Wheel DIY Chassis Kit! This meticulously engineered kit provides the perfect foundation for building your own agile and versatile mobile robot. Crafted for enthusiasts and developers alike, this chassis empowers you to explore the exciting world of robotics with its robust construction and thoughtfully integrated features.

Built to Last:

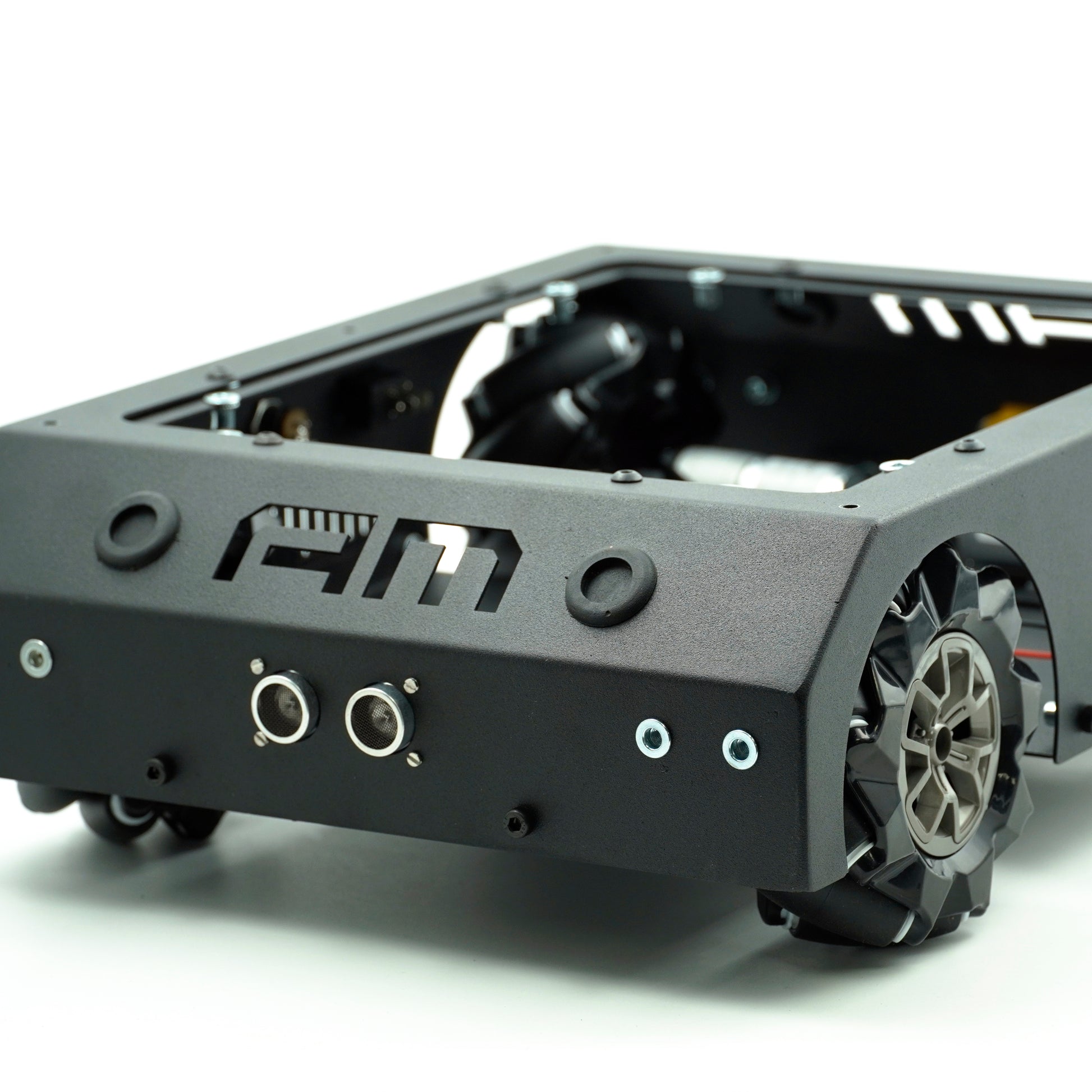

Constructed from high-quality 1 mm-thick MS (Mild Steel) sheet metal, this chassis offers exceptional durability and stability. The precision CNC-machined components ensure accurate fitment and a professional finish. The sleek matt black powder coating gives your robot a sophisticated look and provides a scratch-proof surface, ensuring it can withstand the rigors of experimentation.

Omnidirectional Maneuverability:

The kit includes four high-performance 97mm diameter mecanum wheels with a secure 4mm shaft connection. These specialized wheels allow for true omnidirectional movement – your robot can move forward, backward, sideways, and even diagonally without changing its orientation. Imagine the possibilities for navigation and complex maneuvers!

Powerful and Precise Motion:

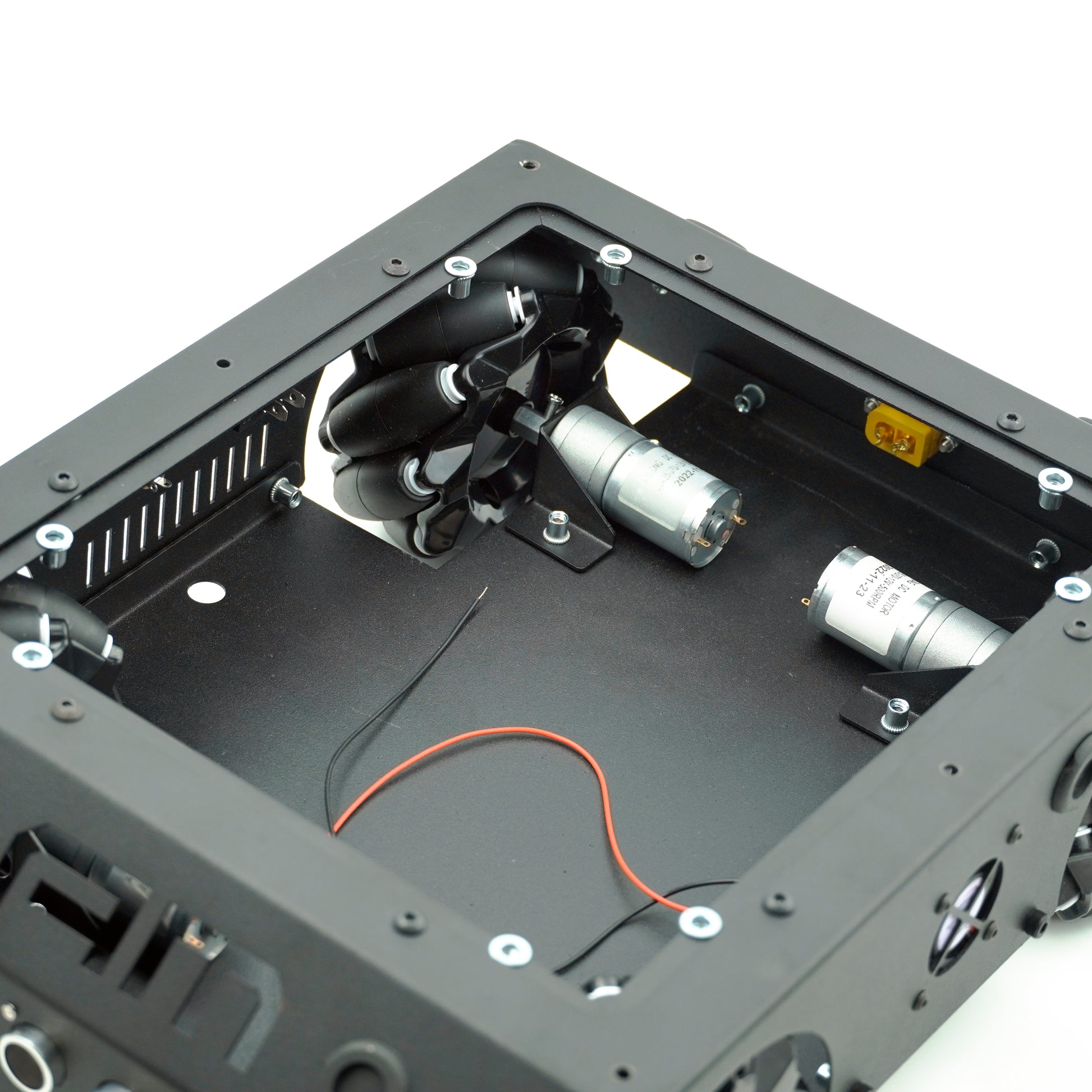

Drive your creation with the included four 25GA-370 12V DC motors, operating at a reliable 280 rpm. These motors provide a great balance of speed and torque for a wide range of robotic applications.

Integrated Power and Control:

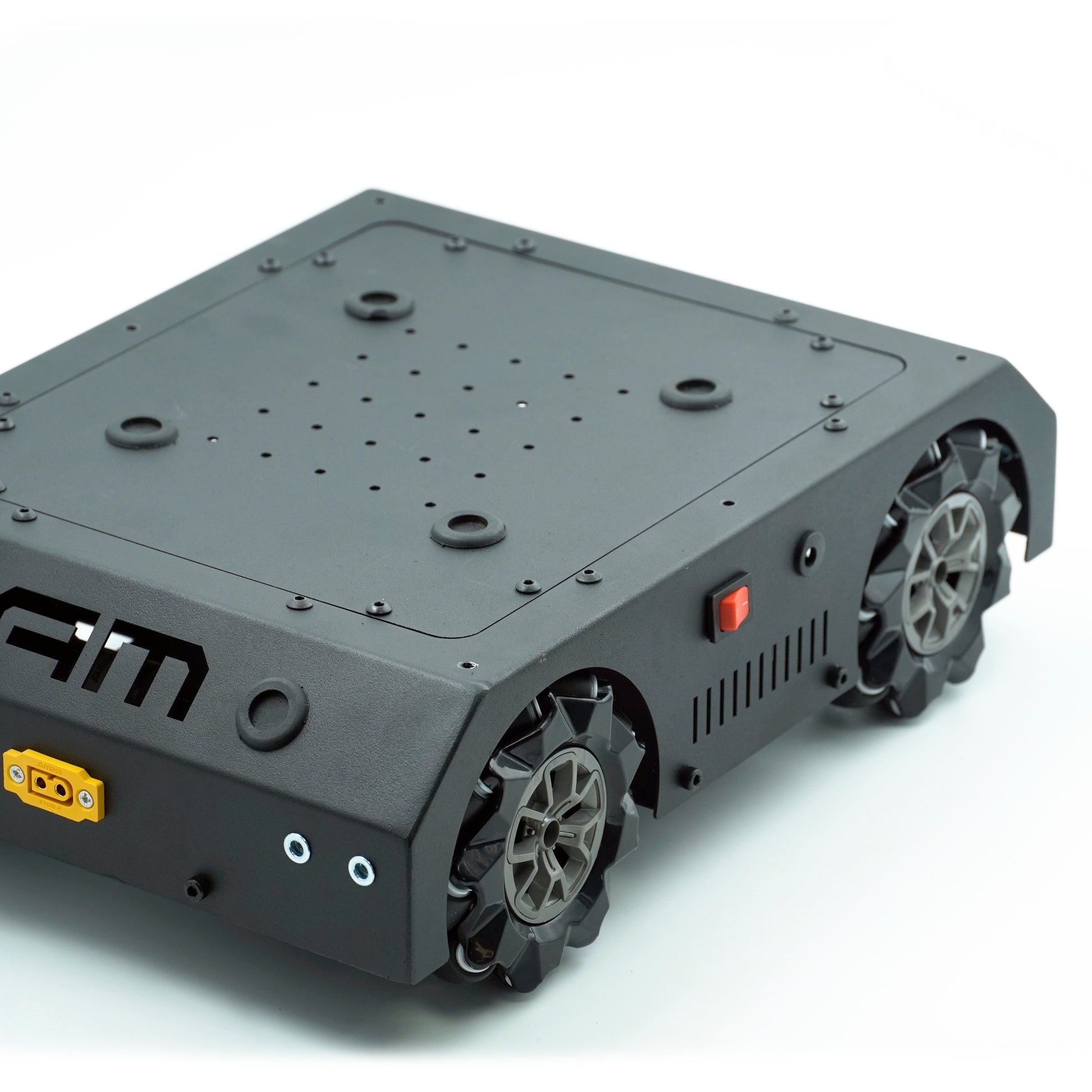

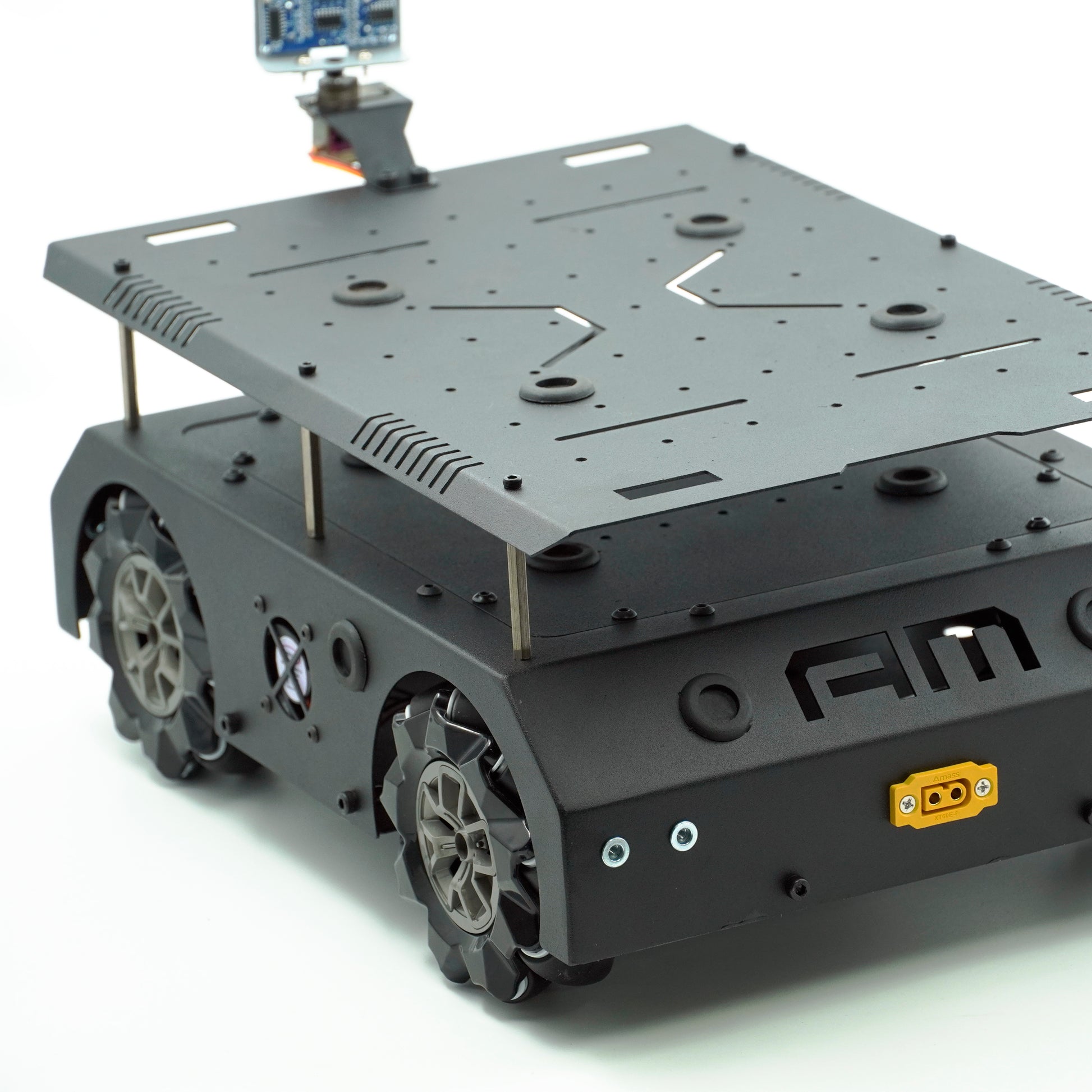

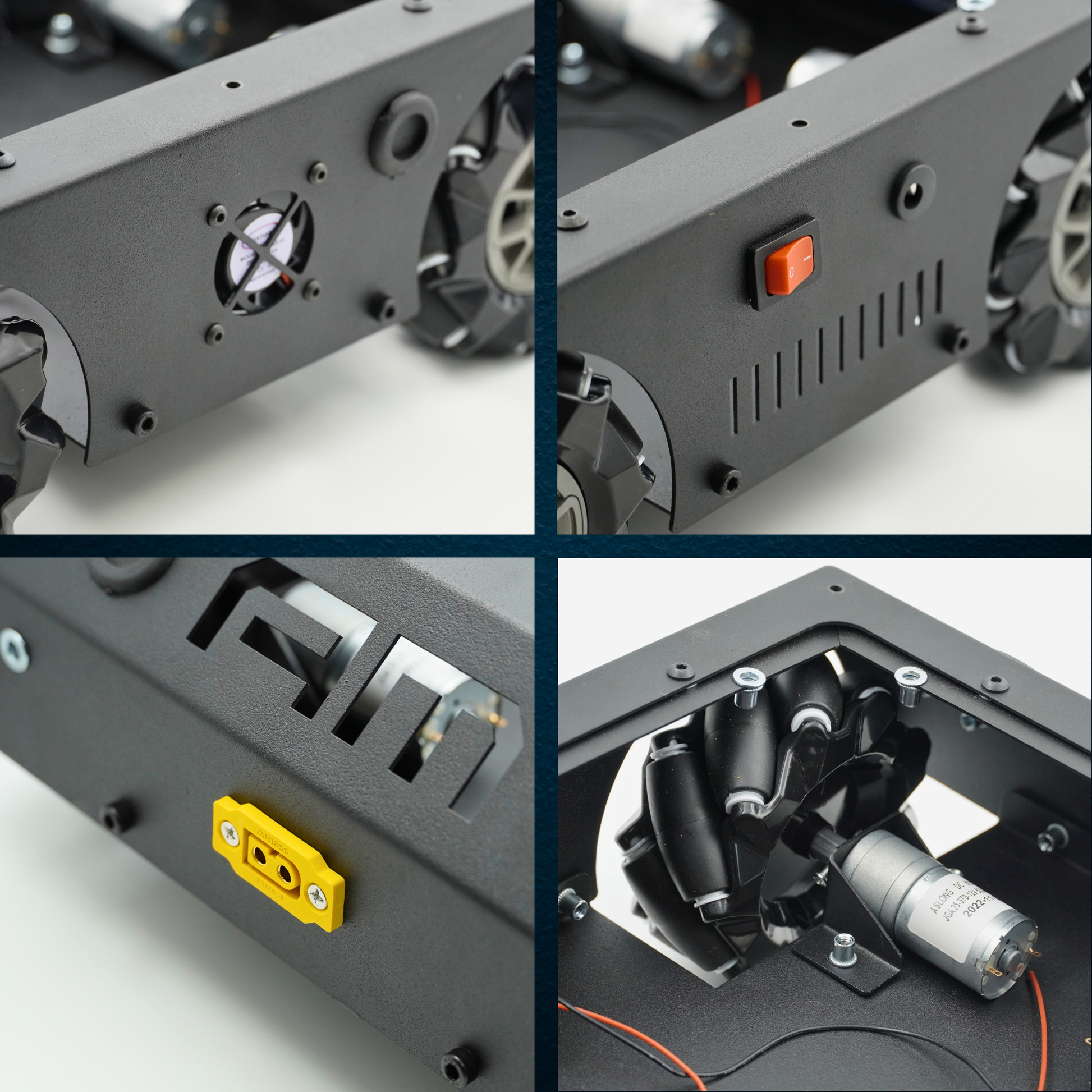

We've taken the hassle out of power management with a pre-installed XT60 female panel mount, ready for your high-current battery connections. Charging is a breeze thanks to the integrated DC jack female panel mount. An easily accessible on/off rocker switch allows for convenient power control.

Sensor Integration Ready:

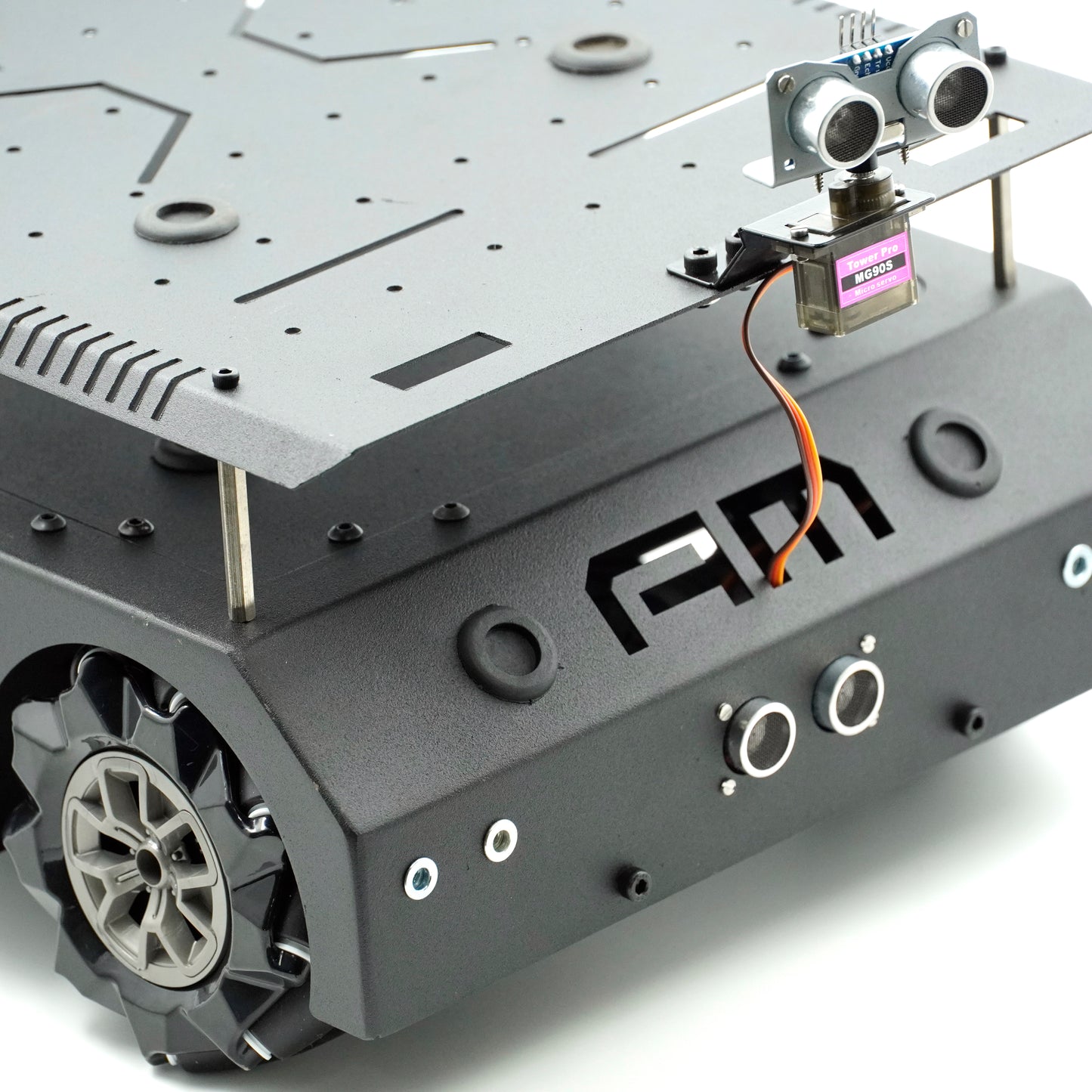

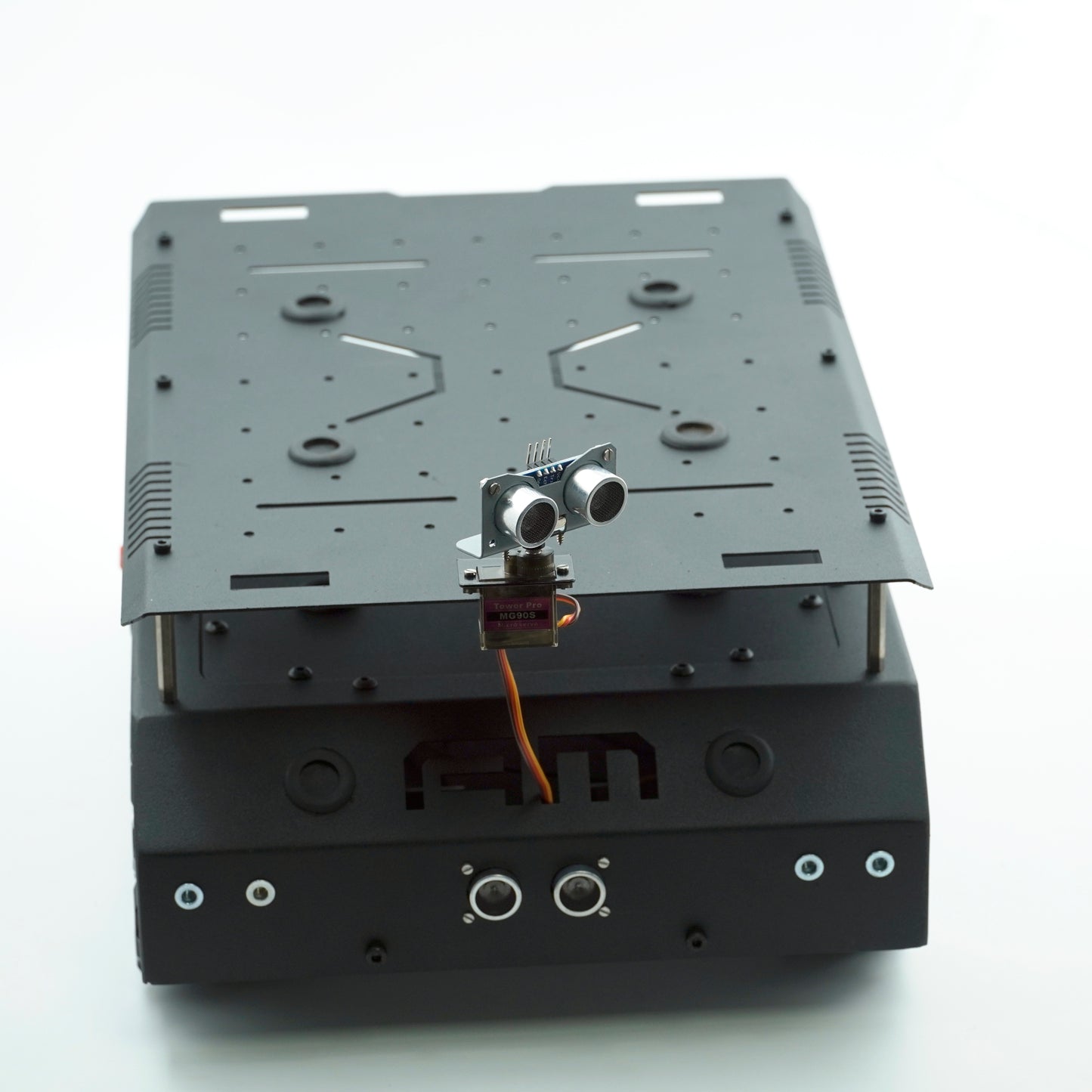

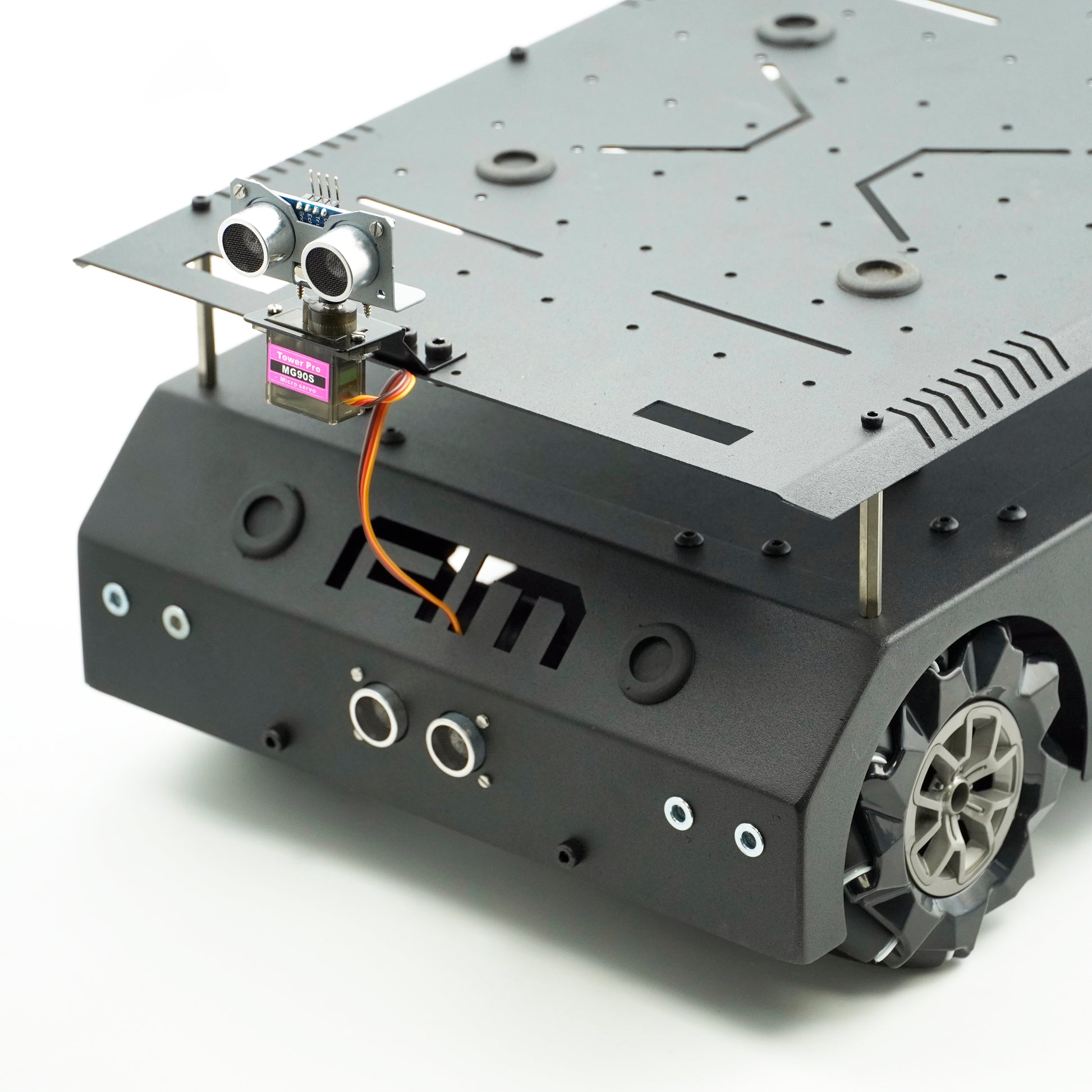

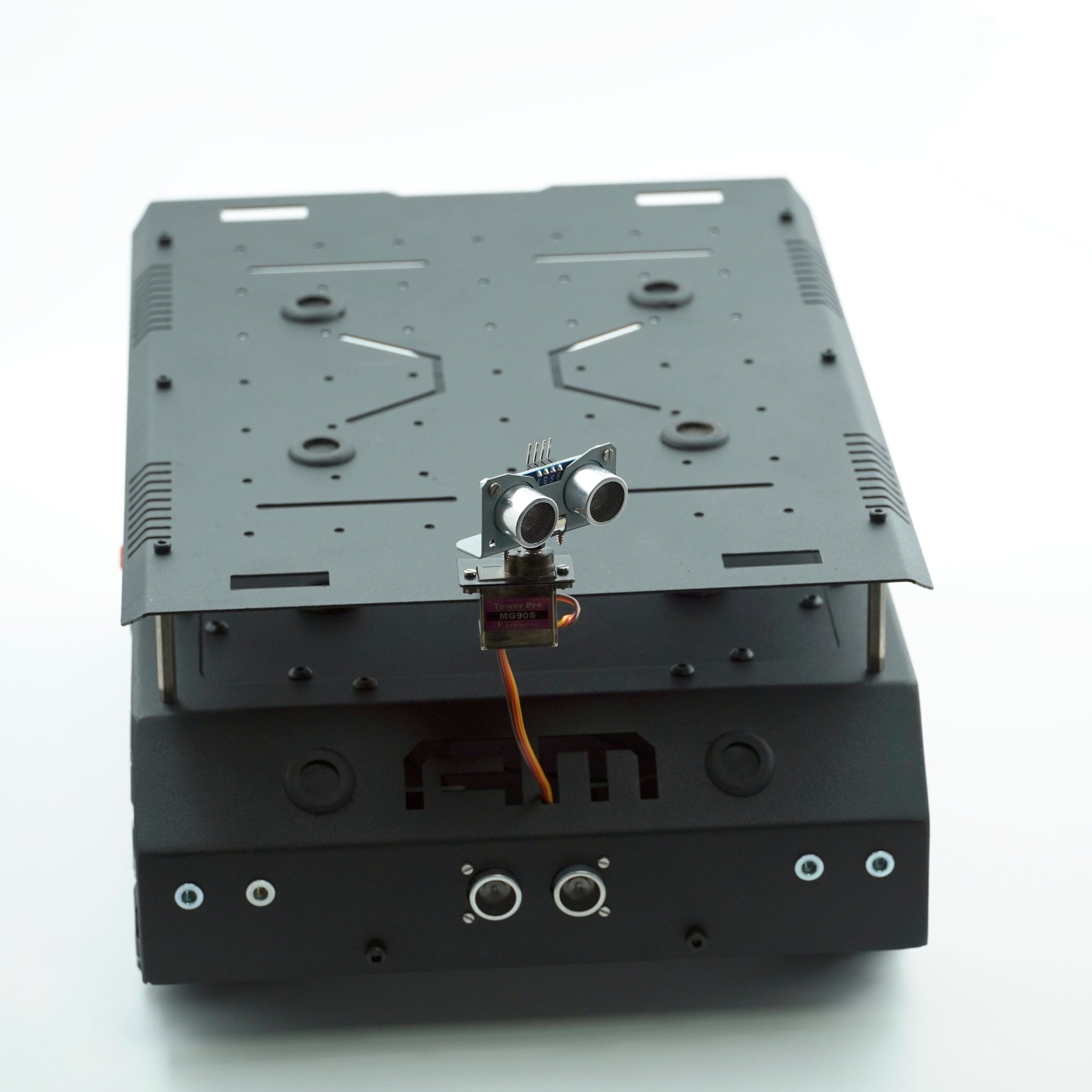

Navigate your environment with ease using the dedicated ultrasonic sensor mount integrated into the chassis. This allows for simple and secure mounting of the included ultrasonic sensor, enabling obstacle detection and autonomous navigation capabilities.

Enhanced Functionality:

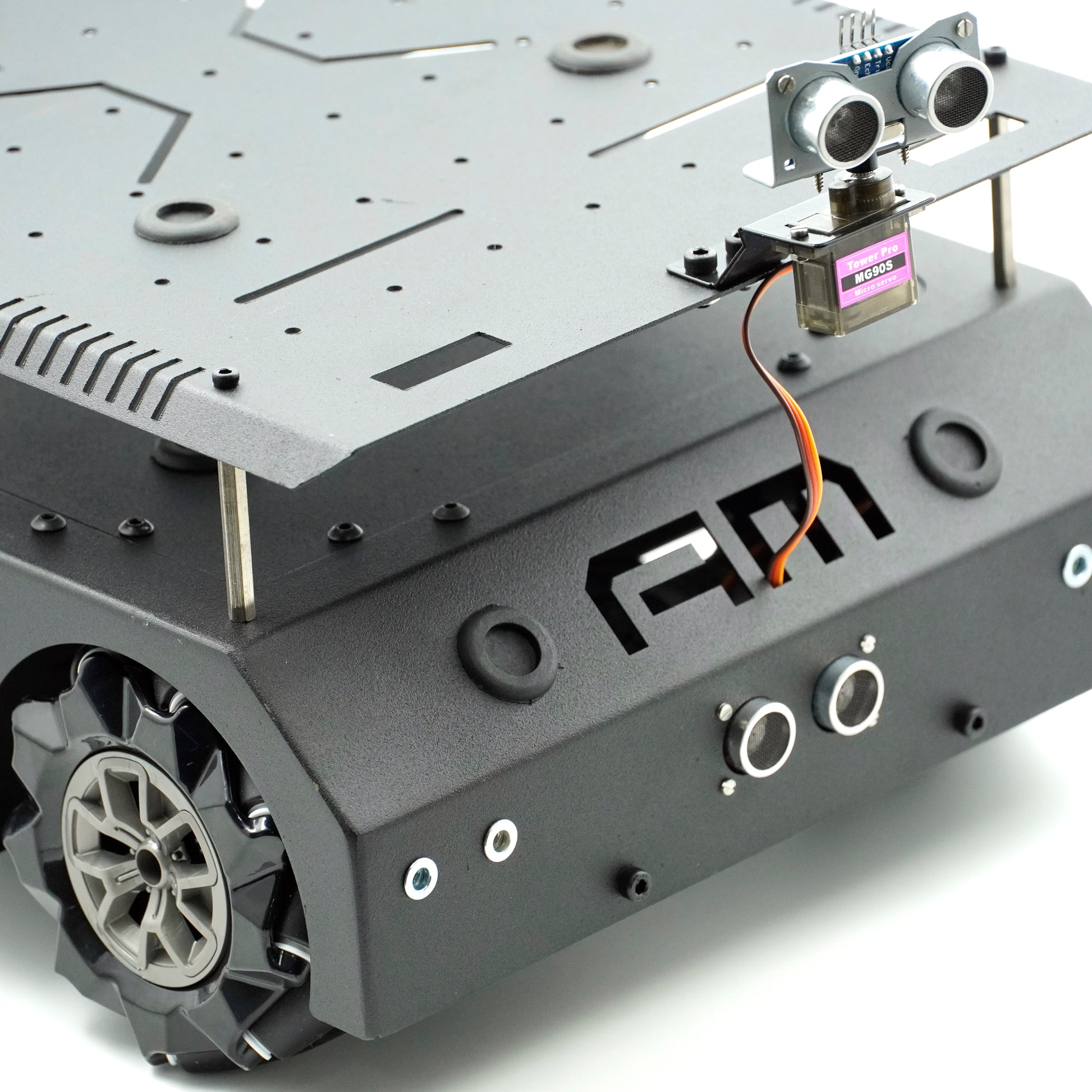

Further expand your robot's capabilities with the included MG90 servo motor, perfect for adding robotic arms, grippers, or other actuated mechanisms. Keep your electronics cool during intense operation with the included 4010 cooling fan.

Comprehensive Kit Contents:

Everything you need to assemble your robotic platform is included:

1. Metal chassis parts
2. Fasteners
3. 4 x Mecanum wheels (97mm diameter, 4mm shaft)
4. 4 x 4mm shaft DC motors (25GA-370 12V 280 rpm)
5. 1 x 4010 cooling fan
6. 1 x DC jack female panel mount
7. 1 x XT60 female panel mount
8. 1 x MG90 servo motor
9. 1 x Ultrasonic sensor
10. 1 x On/off rocker switch
11. Allen keys
12. Assembly manual

Technical Specifications:

• Chassis Material: 1 mm-thick MS sheet metal
• Manufacturing: CNC Machined
• Finish: Matt black powder-coated, scratch-proof
• Wheel Diameter: 97mm
• Wheel Shaft Diameter: 4mm
• Motor Type: 25GA-370 DC Motor
• Motor Voltage: 12V
• Motor Speed: 280 rpm
• Cooling Fan: 4010

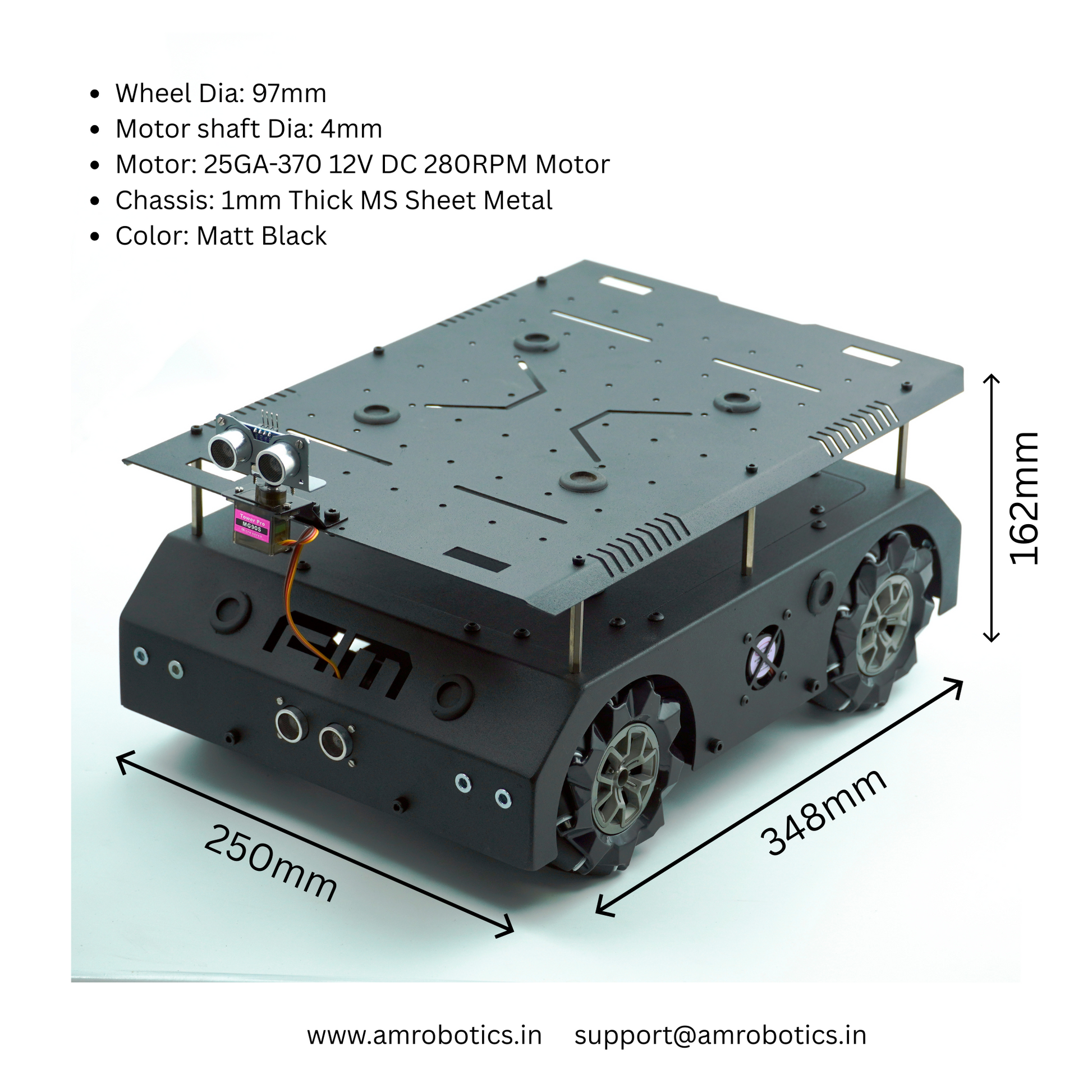

• Dimensions: Length 348mm, Height 162mm, Width 250mm

Get Started Today!

The AM Robotics Meccanum Wheel DIY Chassis Kit provides a robust, versatile, and feature-rich platform for your robotics projects. Please note that this is a kit and requires assembly. Unleash your creativity and bring your robotic visions to life!
