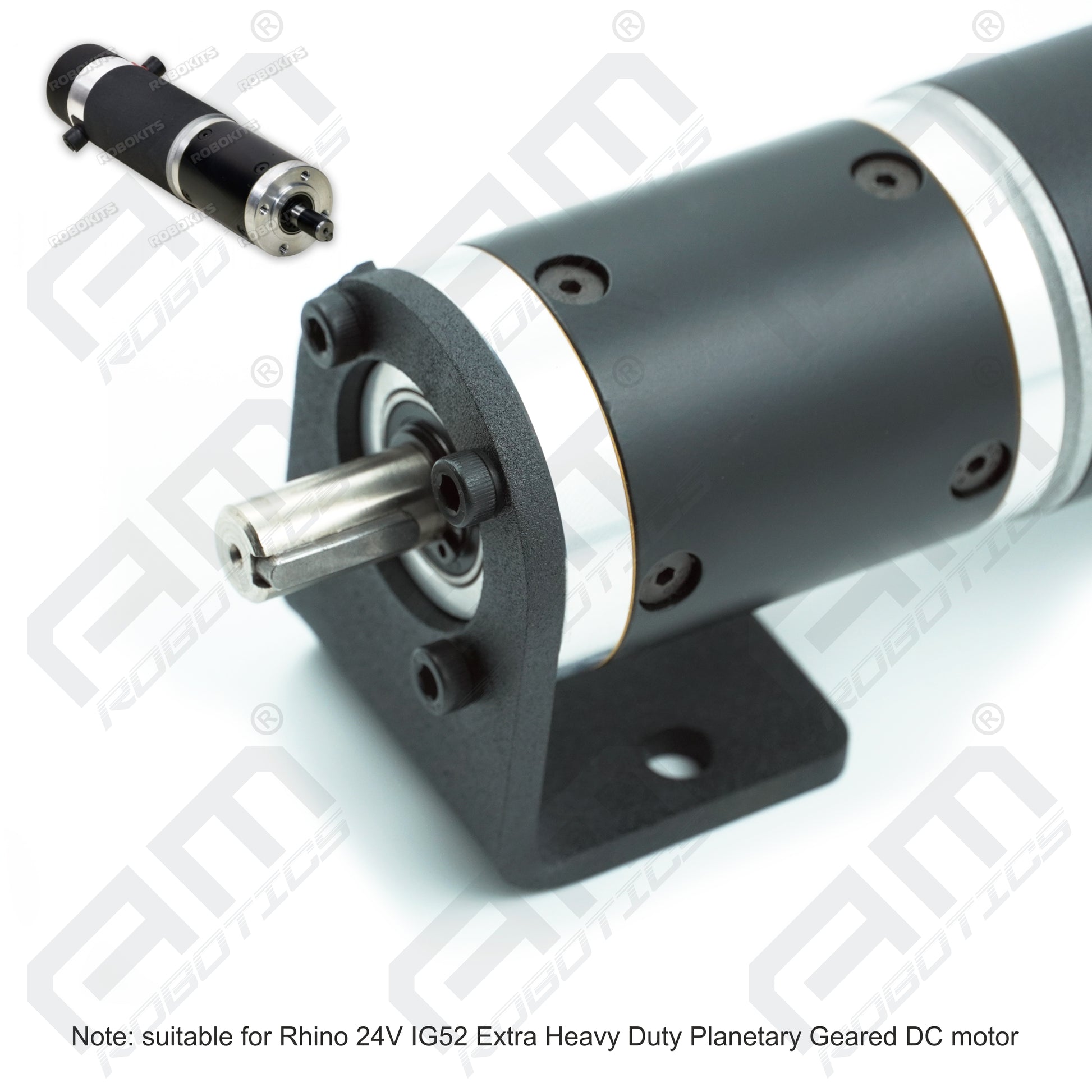

Rhino 24V IG52 Extra Heavy Duty Planetary Geared DC Motor Mounting Bracket – Model 1

A precision-engineered mounting bracket designed specifically for the Rhino 24V IG52 Extra Heavy Duty Planetary Geared DC Motor. This L-shaped bracket provides a stable, rigid mounting solution for robotics, automation, and heavy-duty mechanical applications where secure motor alignment and vibration resistance are essential.

Key Features:

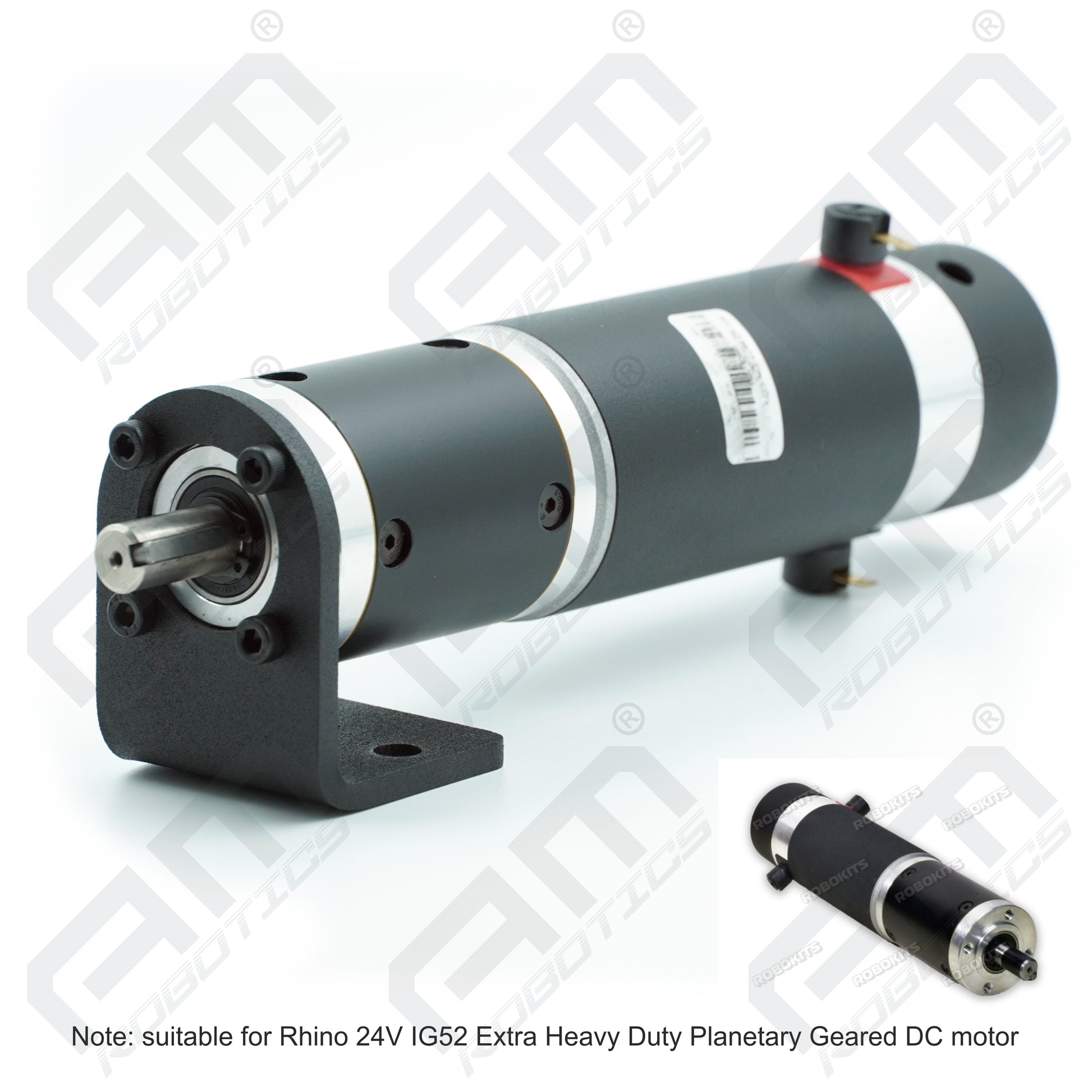

• Purpose-built to match the mounting flange of the Rhino 24V IG52 Planetary Geared Motor
• Robust L-bracket (angle bracket) design offers excellent structural support and load-bearing capability
• Constructed from Mild Steel (MS) for high strength, durability, and resistance to deformation under load
• Central bore of Ø33 mm accommodates the motor's gearbox output housing, with an outer flange circle of Ø42 mm
• 4x mounting holes (Ø5.5 mm) on a bolt circle pattern for securing the motor flange to the bracket

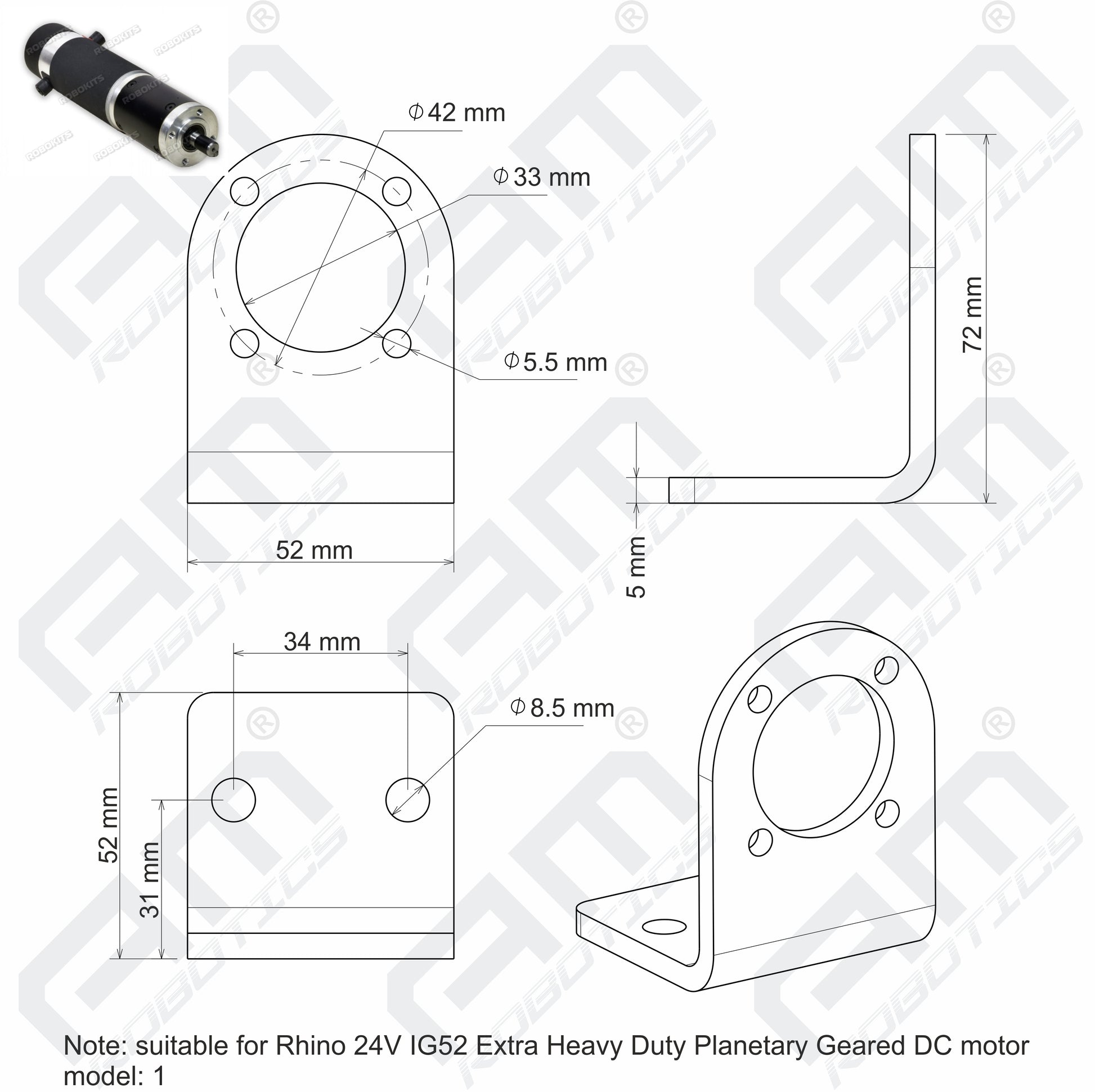

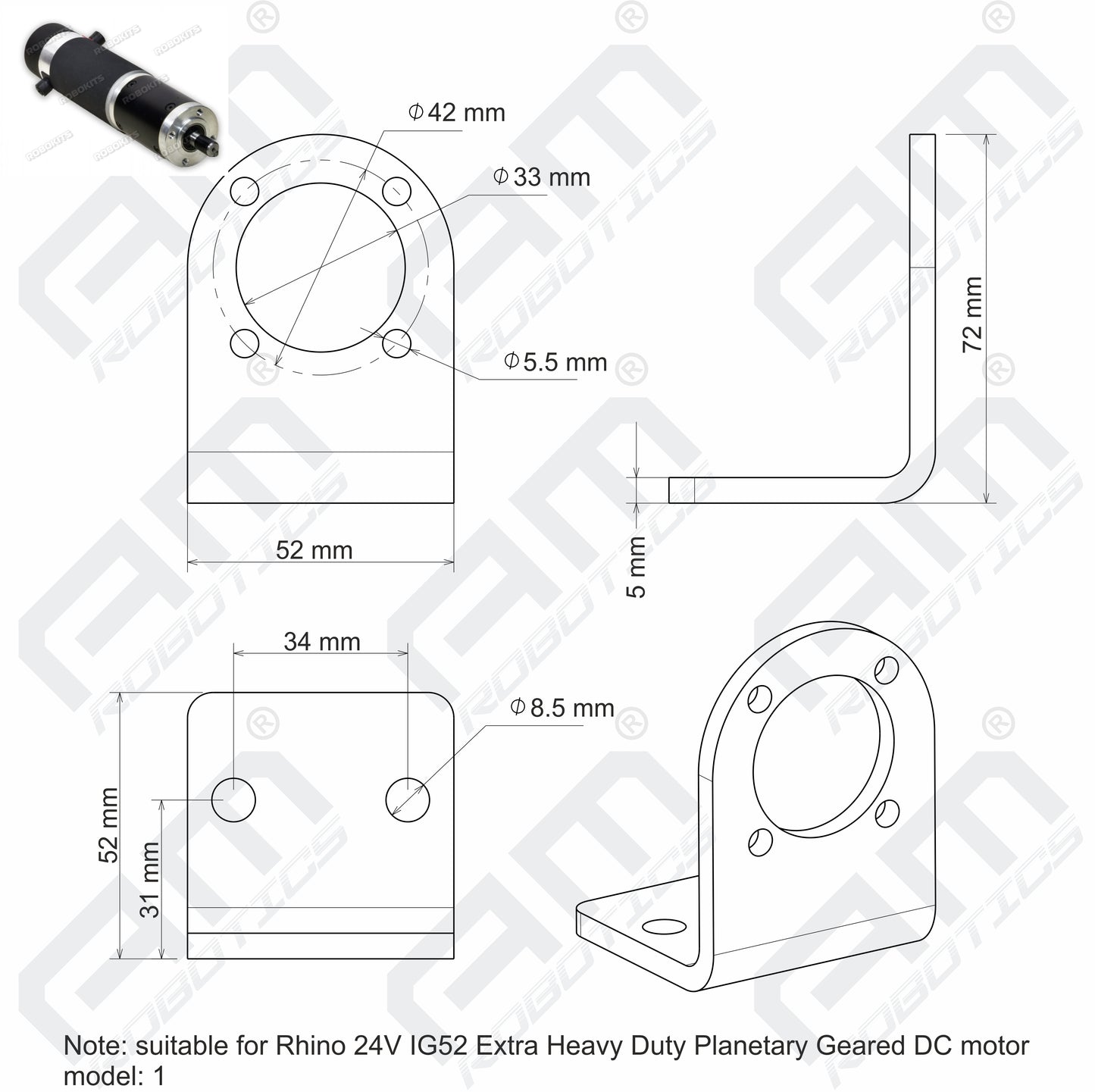

• Base plate footprint of 52 mm x 52 mm with 2x mounting holes (Ø8.5 mm, 34 mm apart) for anchoring the bracket to your chassis, frame, or enclosure
• Overall height of 72 mm, with a 5 mm thick base arm for added rigidity and minimal flex under load
• Clean black finish for corrosion resistance and a professional look
• Lightweight yet sturdy at just 180 grams

Specifications:

• Material: Mild Steel (MS)
• Weight: 180 gms
• Flange bore diameter: 33 mm
• Flange outer diameter: 42 mm
• Mounting hole diameter (flange side): 5.5 mm
• Base plate size: 52 mm x 52 mm
• Base mounting hole diameter: 8.5 mm (34 mm spacing)
• Bracket height: 72 mm
• Arm thickness: 5 mm

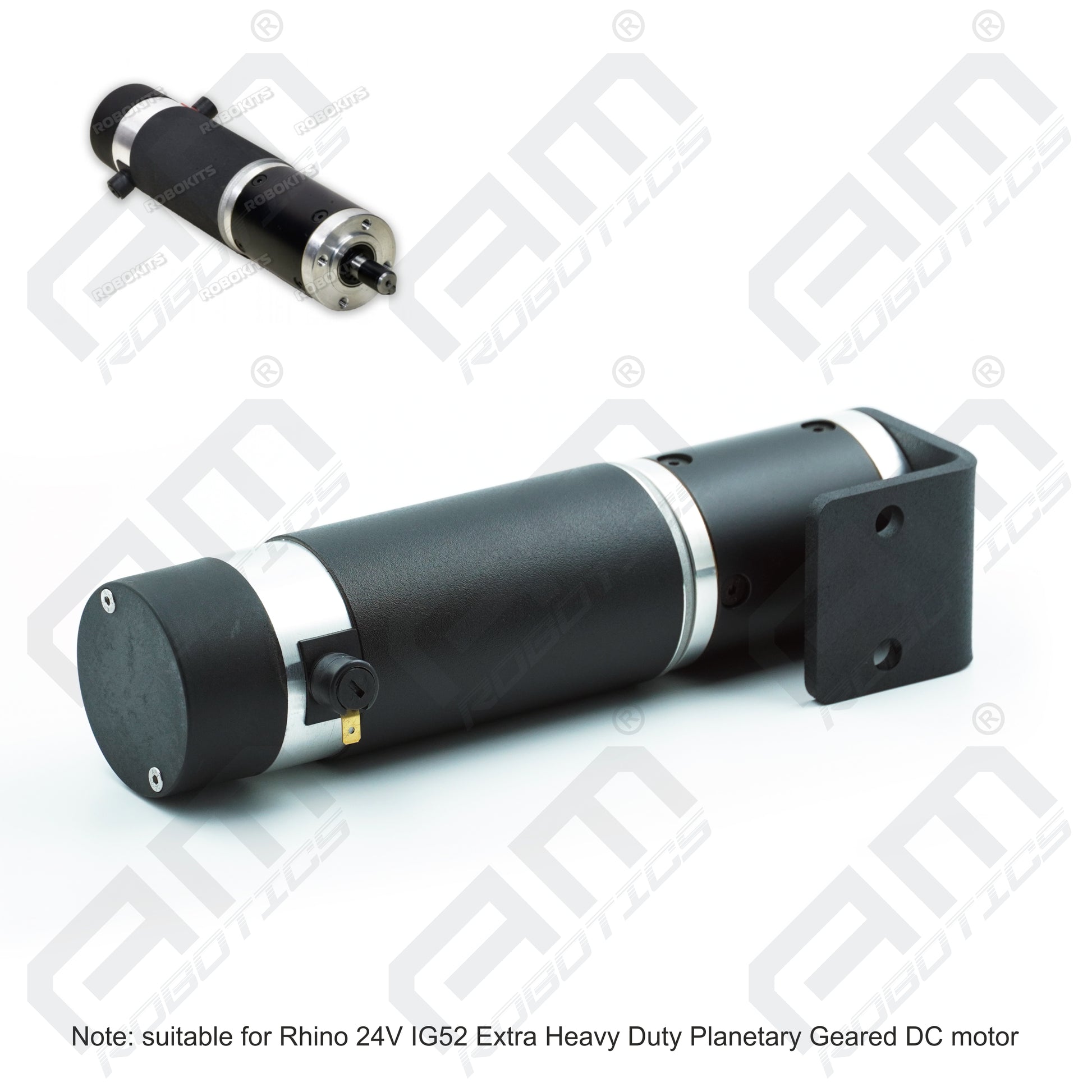

Compatibility: Specifically designed for the Rhino 24V IG52 Extra Heavy Duty Planetary Geared DC Motor. Please verify motor flange dimensions before purchase to ensure correct fitment.

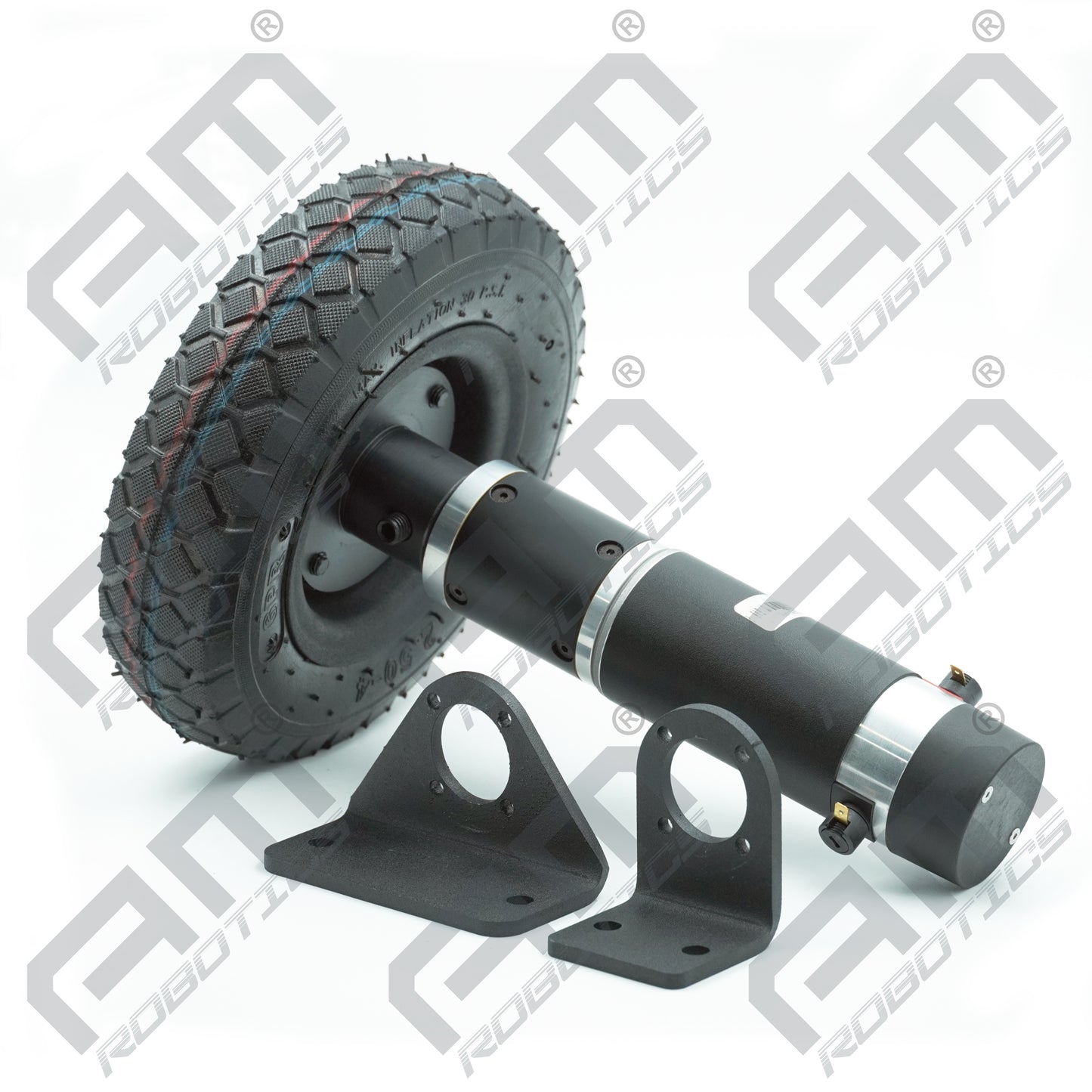

Applications: Ideal for robotics platforms, mobile robot chassis, conveyor systems, automated equipment, and any project requiring a strong, stable base for mounting heavy-duty planetary geared motors.
