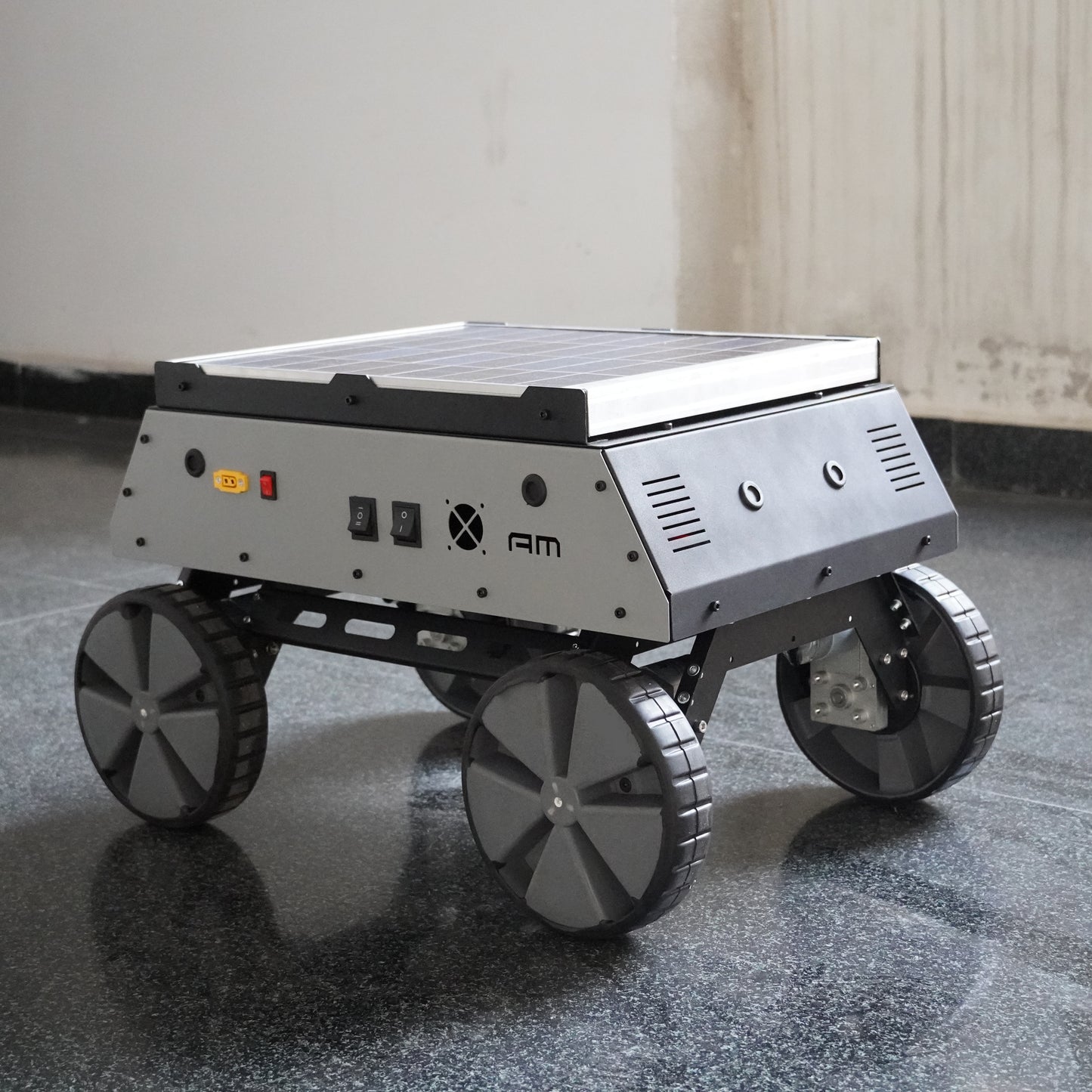

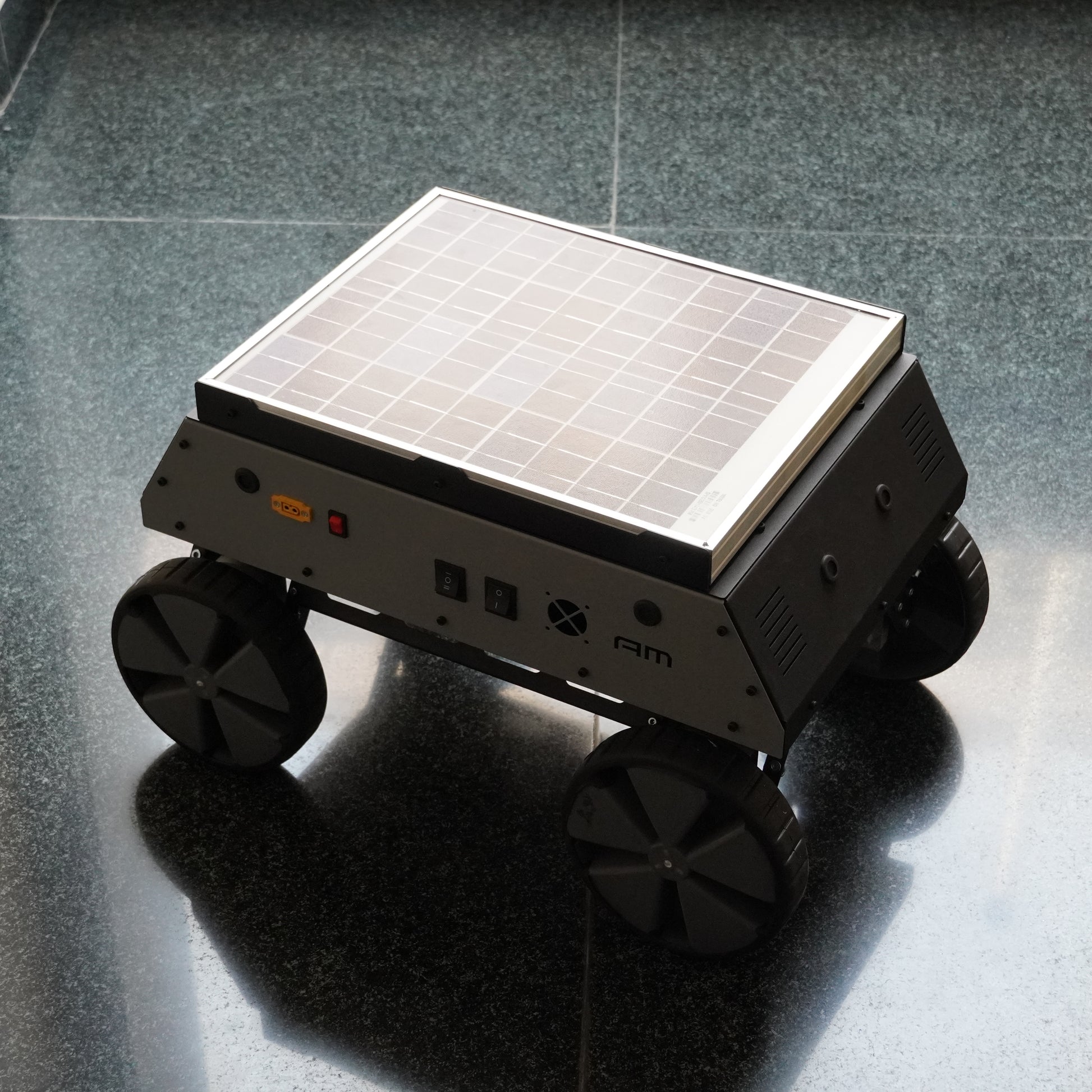

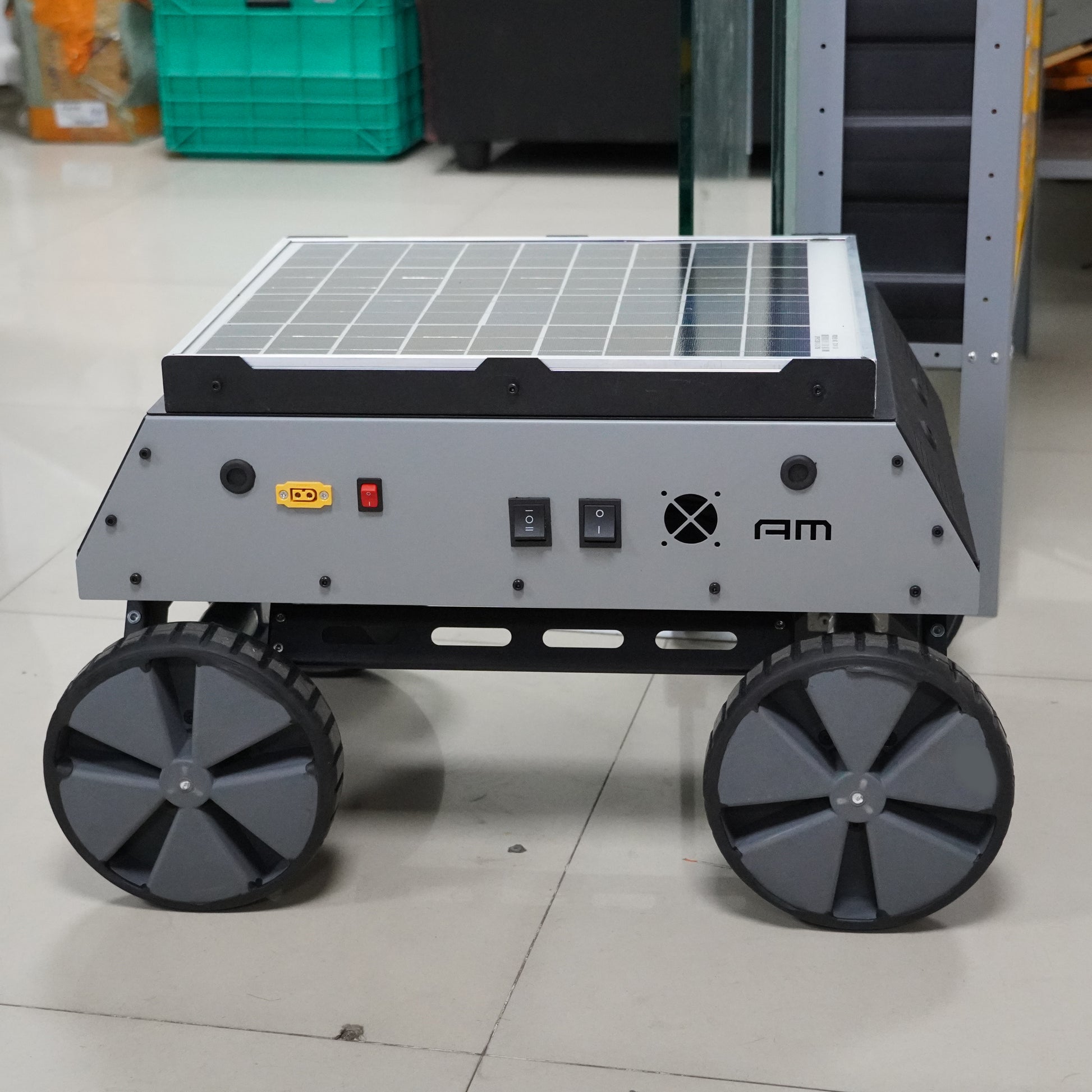

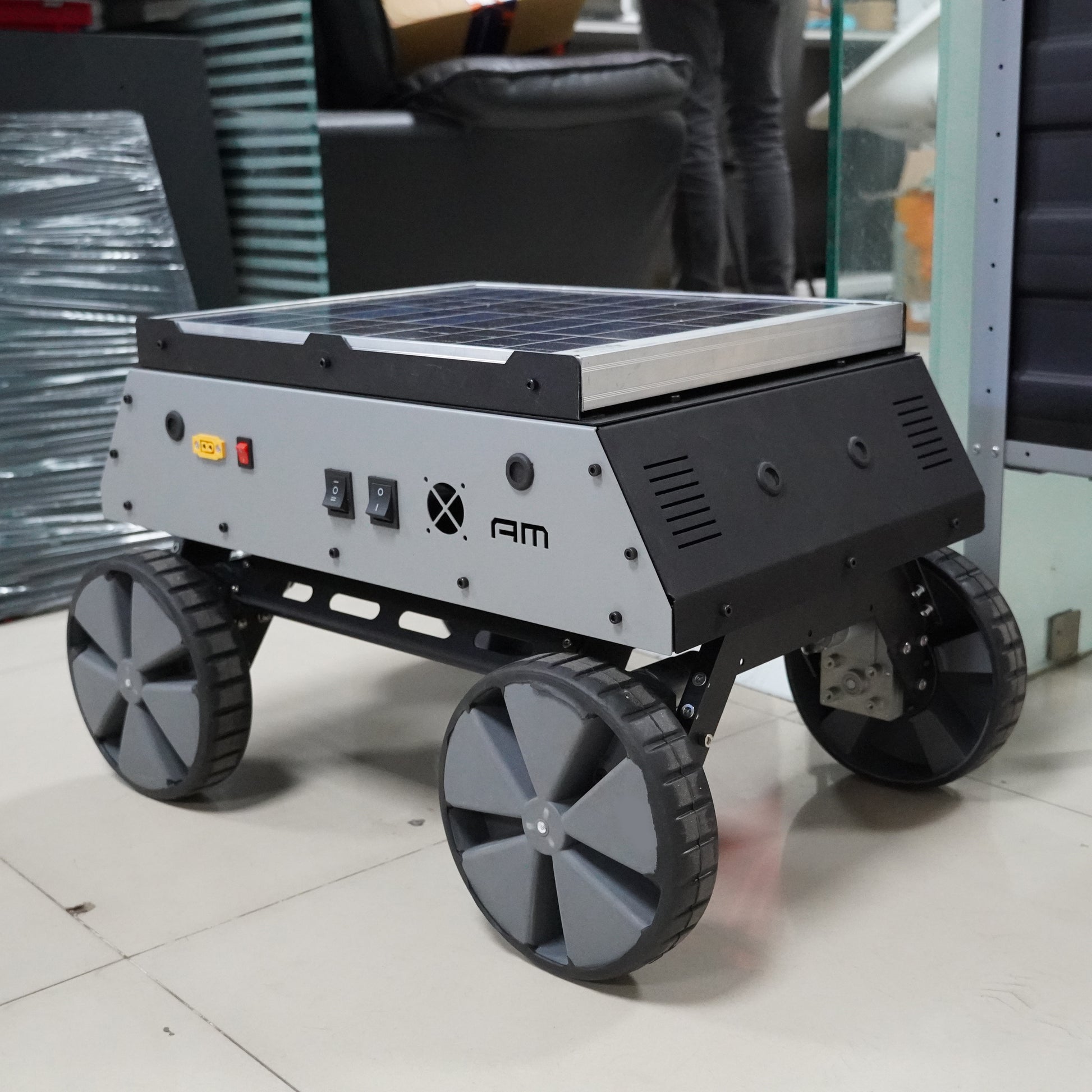

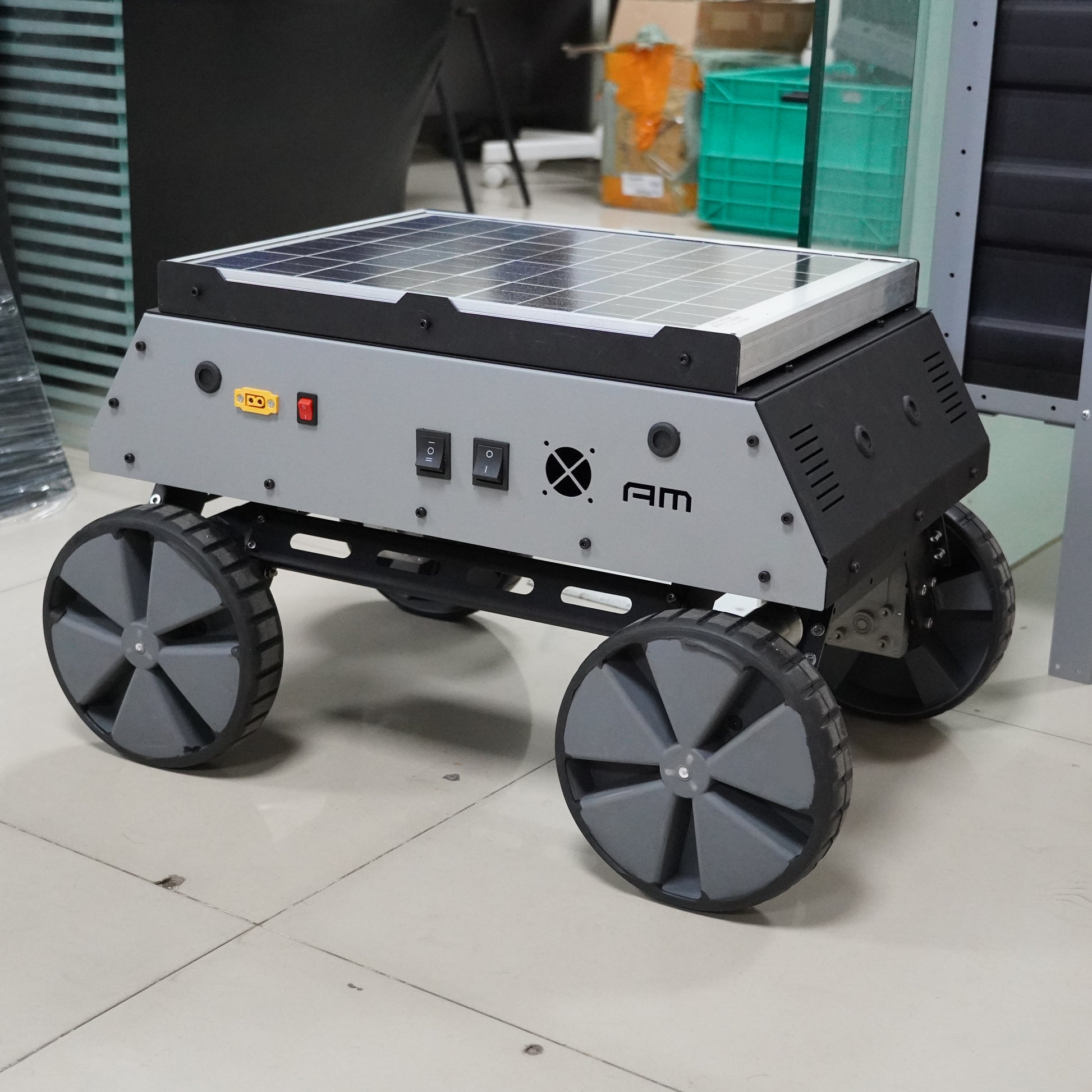

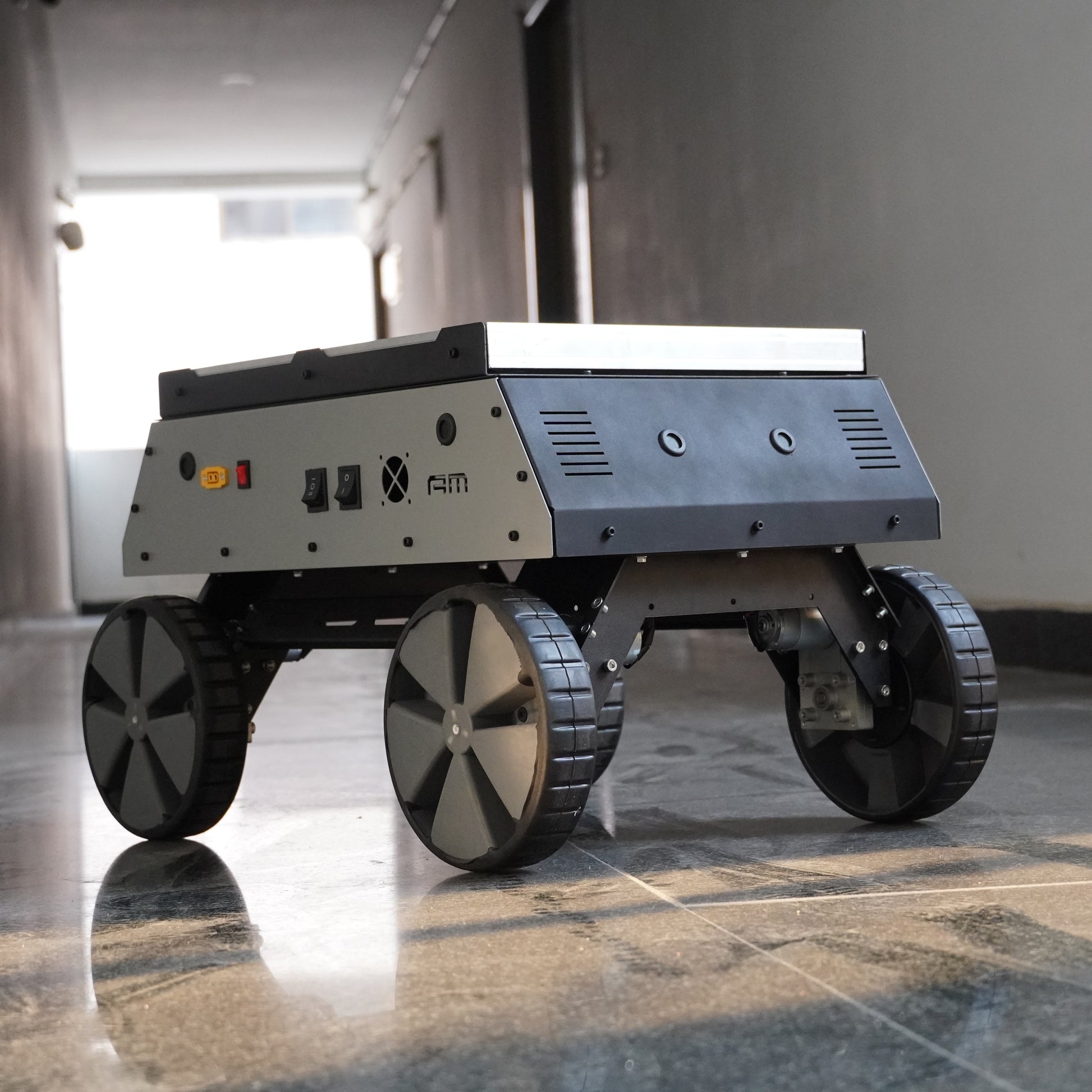

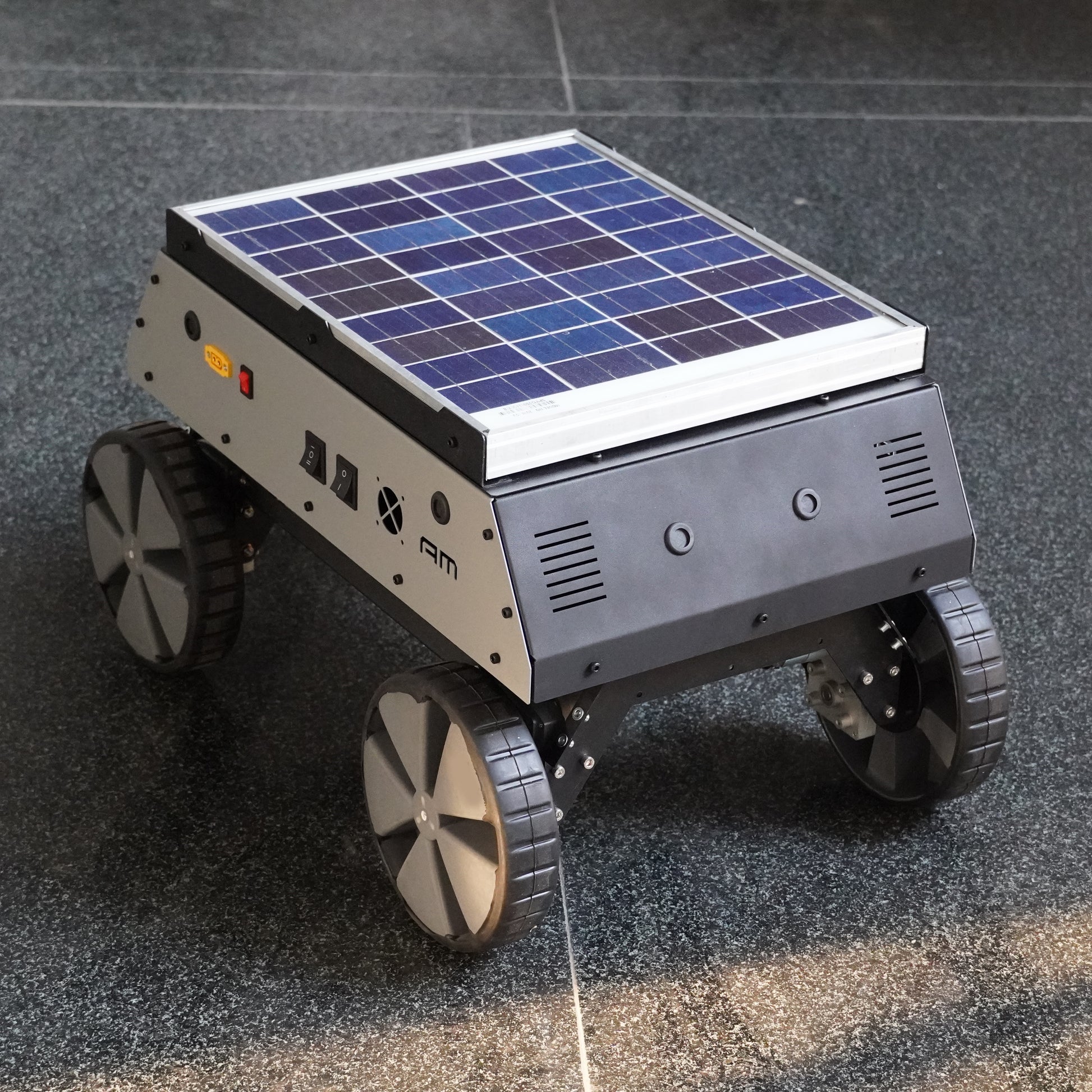

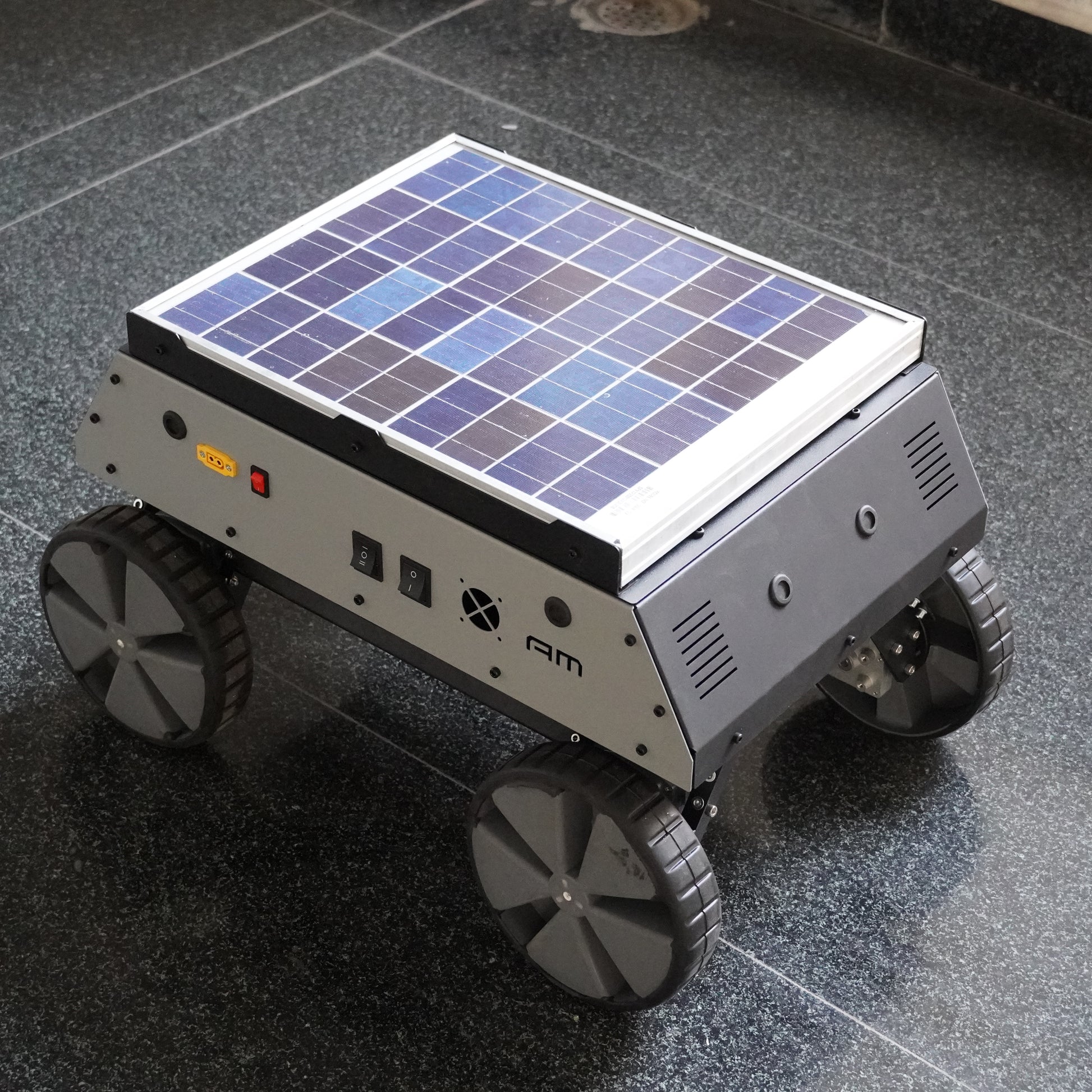

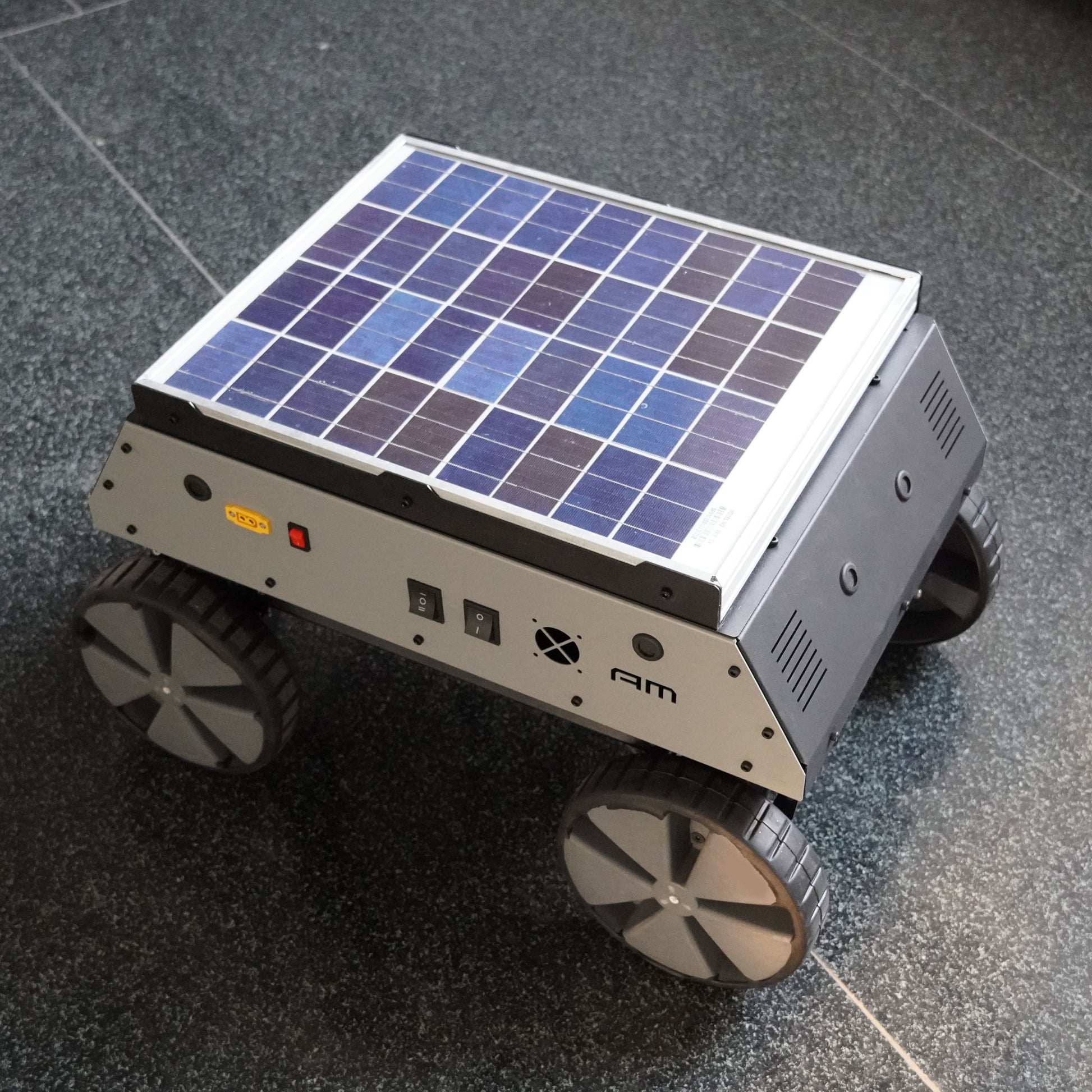

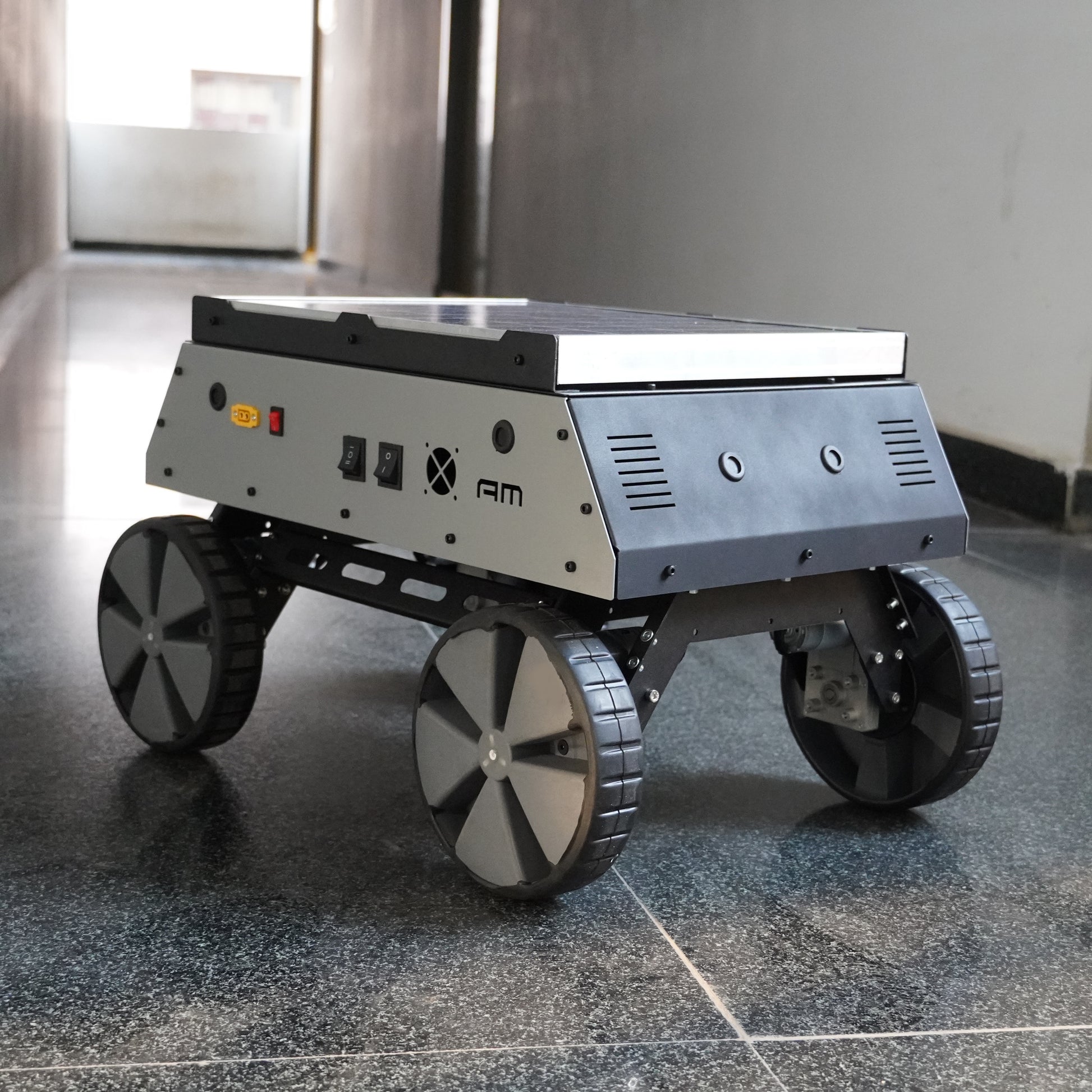

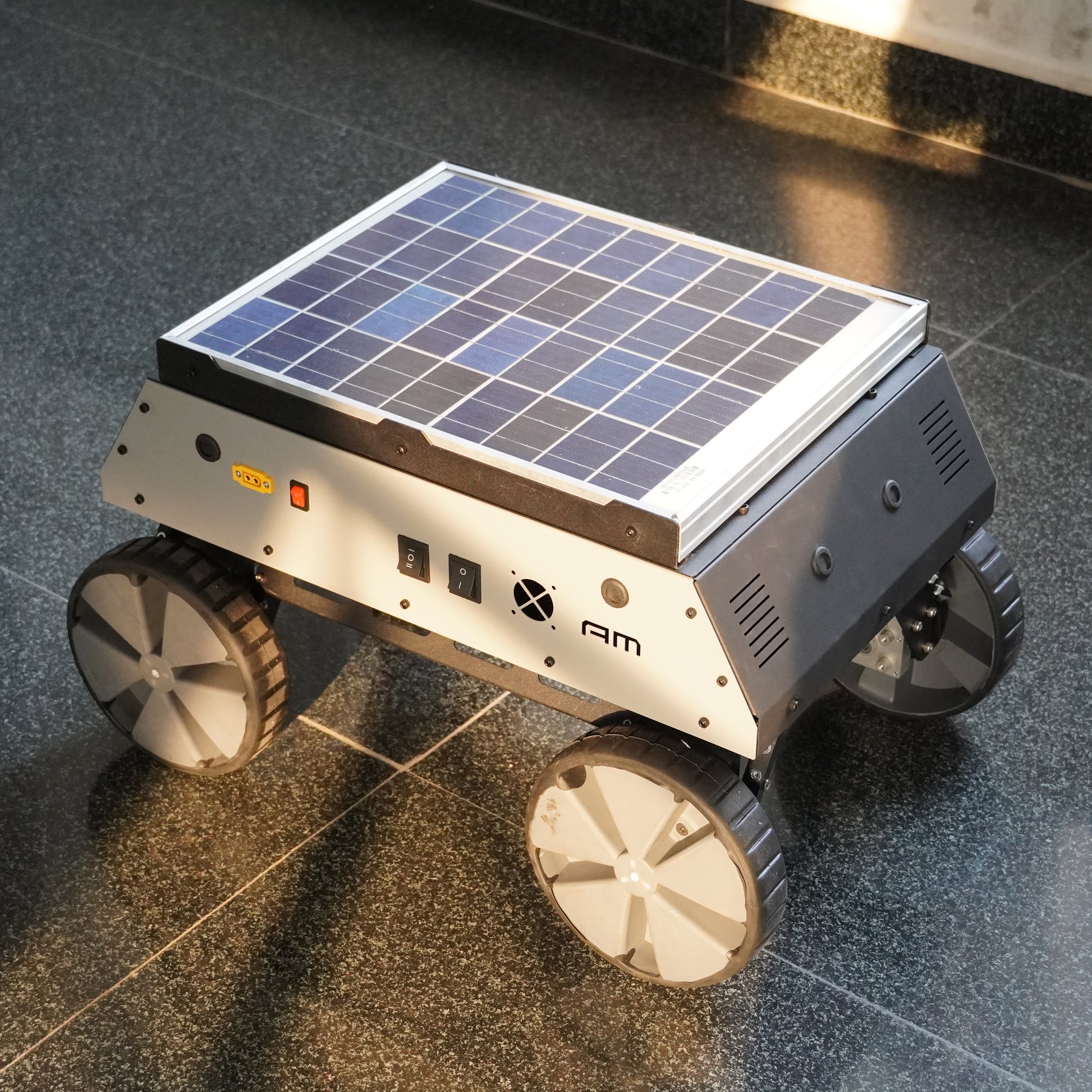

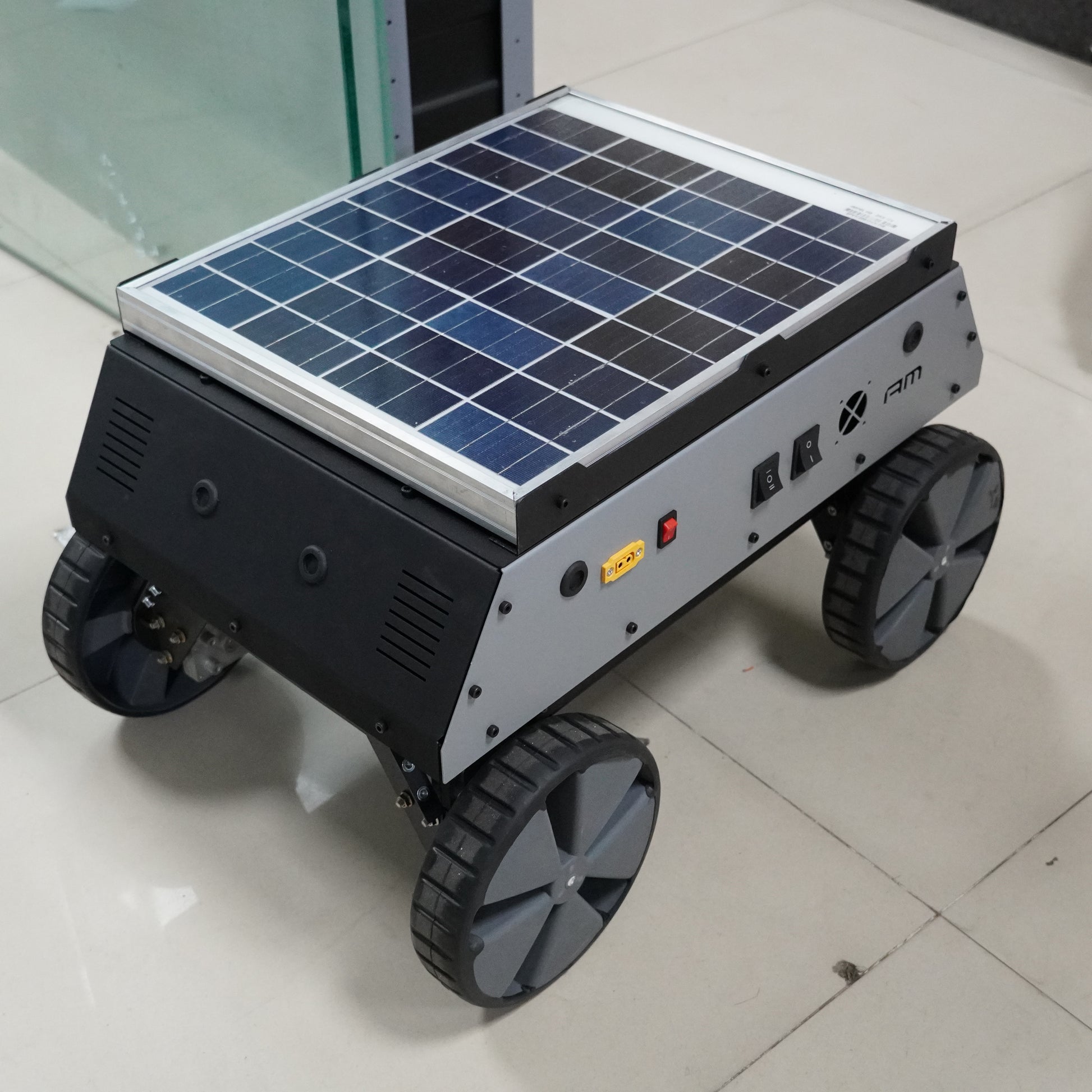

Solar Powered 2 in 1 Hybrid Rover 20 kg Payload Robot DIY Chassis

Get ready to build your ultimate mobile robot with the AM Robotics Solar Hybrid Rover Chassis Kit! This robust, do-it-yourself kit provides the foundational structure for a versatile robot capable of carrying payloads up to 20kg. Perfect for hobbyists, educators, and researchers alike, this kit allows you to assemble a powerful and energy-efficient robotic platform.

Unleash Your Creativity with a Powerful Base:

The AMR Solar Hybrid Rover Chassis Kit includes everything you need to construct a durable and capable robot chassis:

• Robust Metal Powder-Coated Chassis Brackets: These brackets are precision-engineered for strength and durability, providing a solid foundation for your robotic innovations.
• Powerful Rectangular Geared 12V DC 70 RPM Motors: Delivering reliable torque and controlled movement for navigating various terrains.
• Heavy-Duty 190mm Diameter Rubber Wheels with 8mm ID Flanges: Offering excellent traction and stability for both indoor and outdoor applications.
• Convenient XT60 FEMALE Panel Mounted Connector: Ensures a secure and reliable power connection for your battery system.
• Efficient Cooling with Dual 4010 Cooling Fans: Maintaining optimal operating temperatures for prolonged use.

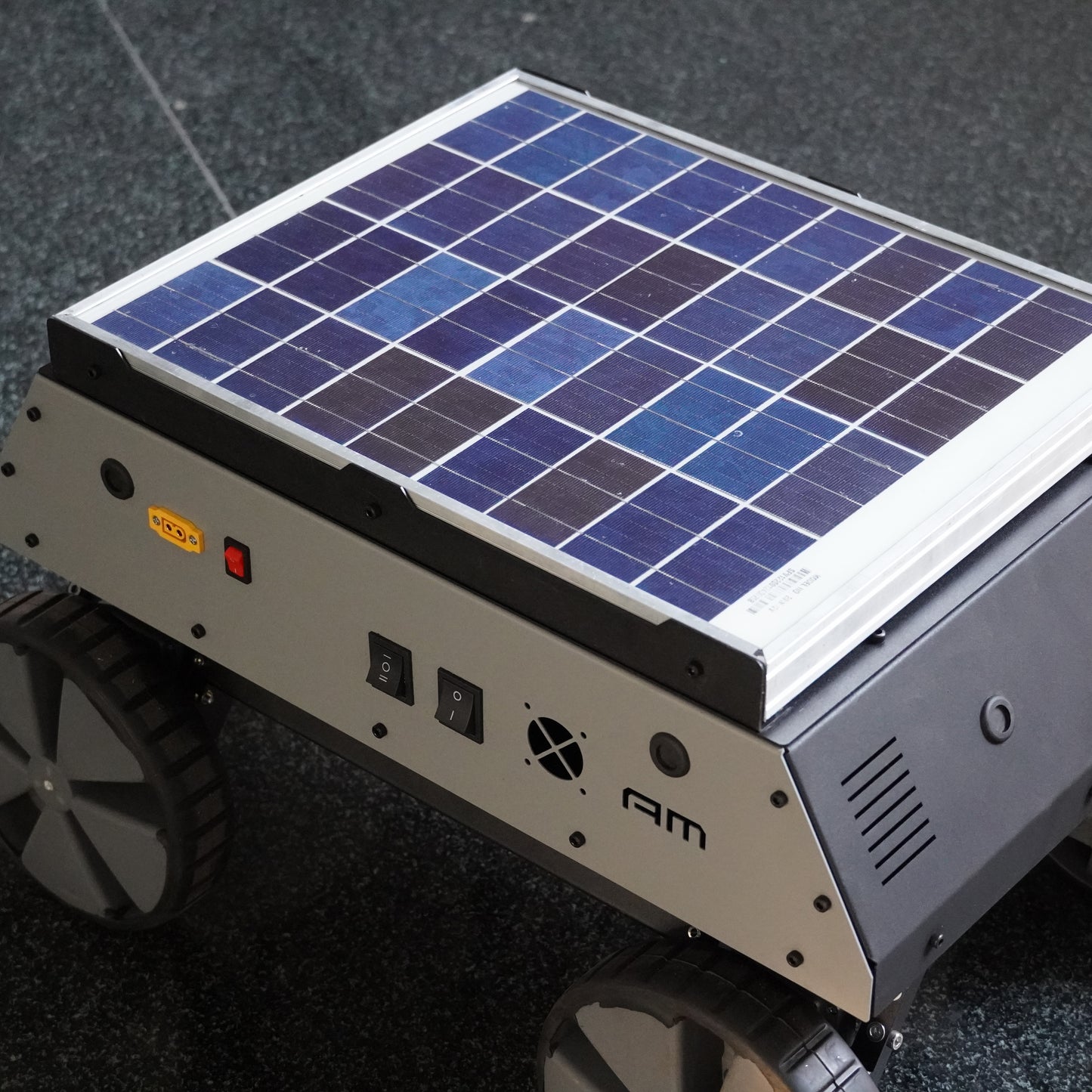

• Integrated 20W 12V Solar Panel: Harness the power of the sun to extend your robot's operational time and explore hybrid power solutions.
• Comprehensive Fasteners and Allen Keys: Providing all the necessary hardware for a secure and straightforward assembly.
• Detailed Mechanical Assembly Manual: Guiding you through each step of the assembly process with clear instructions.

Key Features:

• 20kg Payload Capacity: Design and build robots for a wide range of applications, from carrying sensors and cameras to transporting small objects.
• Solar Hybrid Power Ready: Integrate the included solar panel to supplement battery power, enabling longer missions and sustainable operation.
• Durable Construction: The powder-coated metal chassis and heavy-duty wheels are built to withstand demanding environments.
• DIY Assembly: Enjoy the hands-on experience of building your robot from the ground up, fostering a deeper understanding of robotics.
• Versatile Platform: Ideal for experimentation, educational projects, and developing custom robotic solutions.

Dimensions:

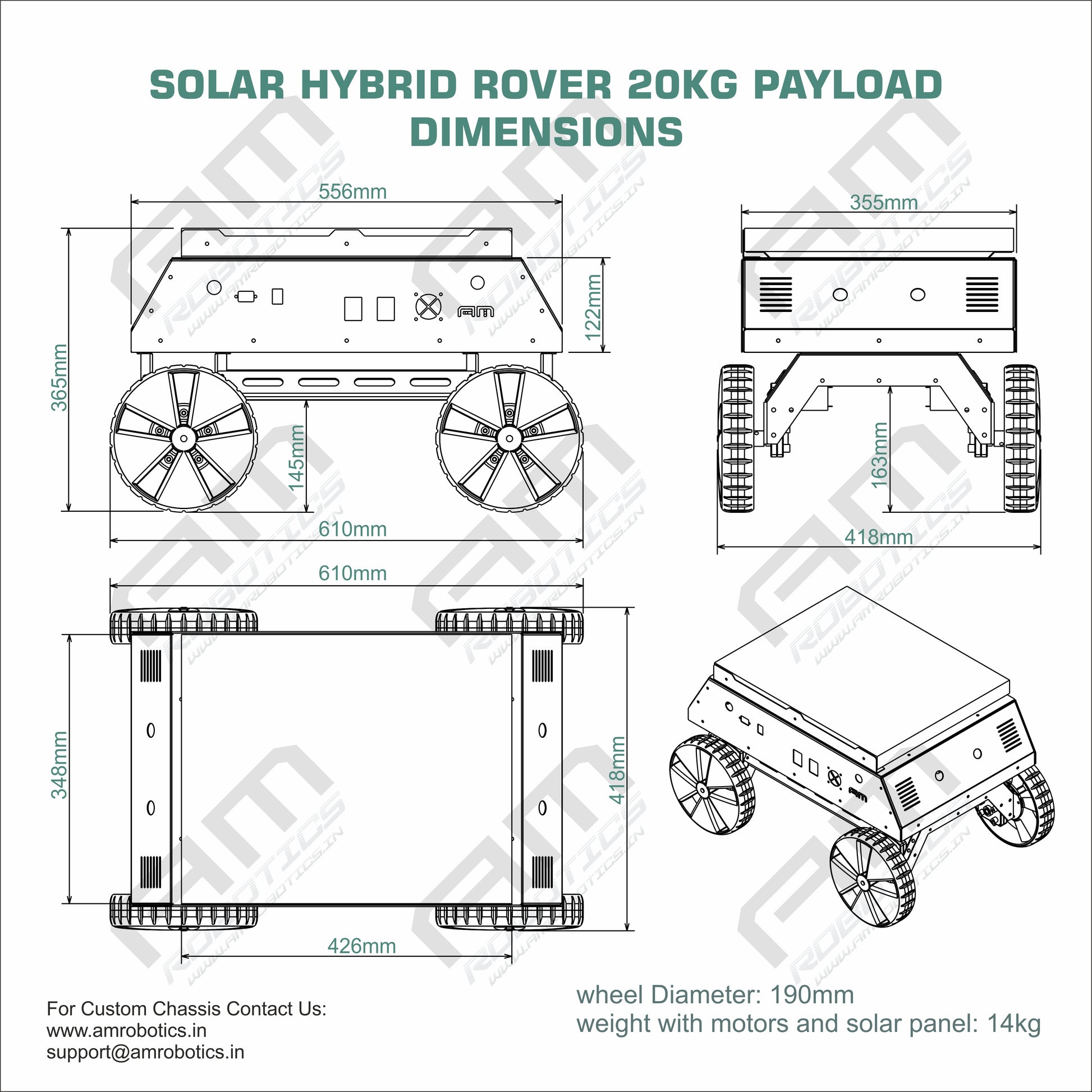

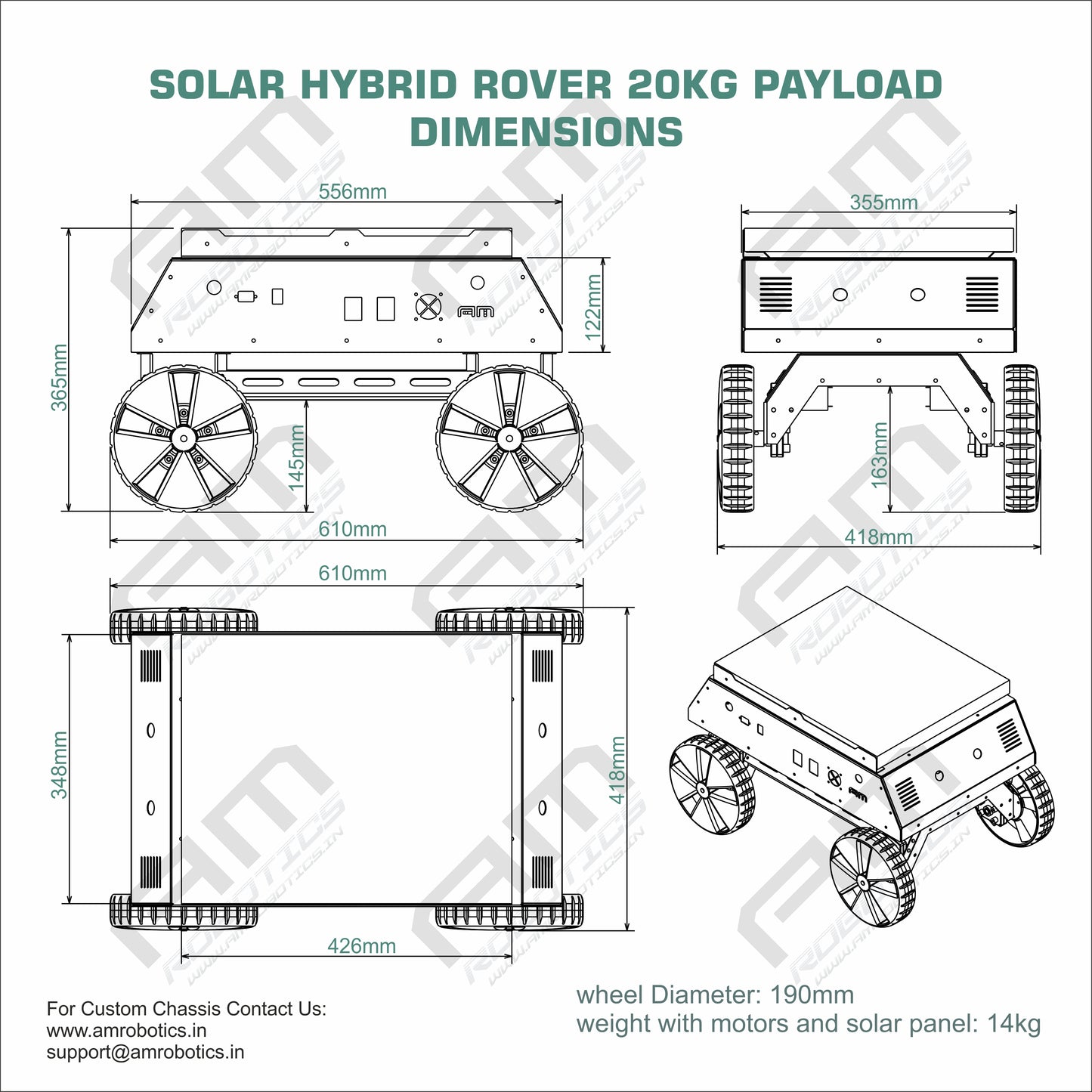

Refer to the dimensional drawing provided in the images for detailed measurements. Key dimensions include:

• Length: 556mm
• Width: 418mm
• Height: 163mm (to the top of the chassis)
• Wheel Diameter: 190mm

Kit Includes:

1. Metal powder-coated chassis brackets
2. Rectangular geared 12V DC 70 RPM motors
3. 190mm dia heavy duty rubber wheels with flanges of 8mm ID
4. XT60 Female panel-mounted connector
5. 4010 cooling fans x 2
6. 20W 12V Solar Panel
7. Fasteners
8. Allen keys
9. Mechanical Assembly Manual

Note: This is a do-it-yourself chassis kit and requires assembly. Batteries and other electronic components are not included.

Ready to embark on your robotics journey? Add the AMR Solar Hybrid Rover 20kg Payload Robot Chassis Kit to your cart today and start building!

For custom chassis requirements, please get in touch with us at support@amrobotics.in or visit www.amrobotics.in
